Body Control Systems: Service and Repair

BCM Removal and Installation

Removal
1. Disconnect negative cable from battery.

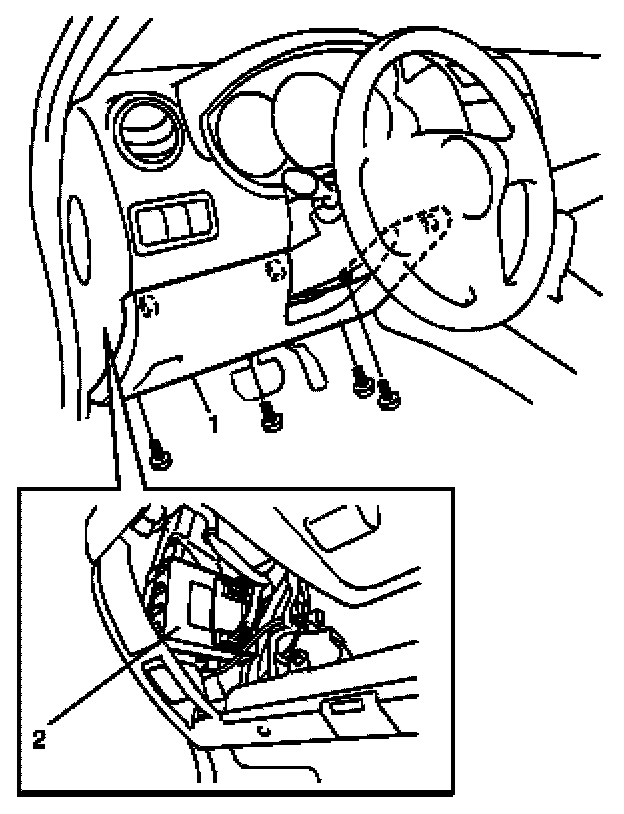

2. Remove steering column hole cover (1).
3. Disconnect connectors from BCM.




4. Remove BCM (2).

Installation
Reverse removal procedure for installation, noting following point.
- Connect connectors securely until it clicks.
