Home
>>
Suzuki
>>
2006
>>
Grand Vitara 2WD V6-2.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
E Connectors
E Connectors
E01 - E38:

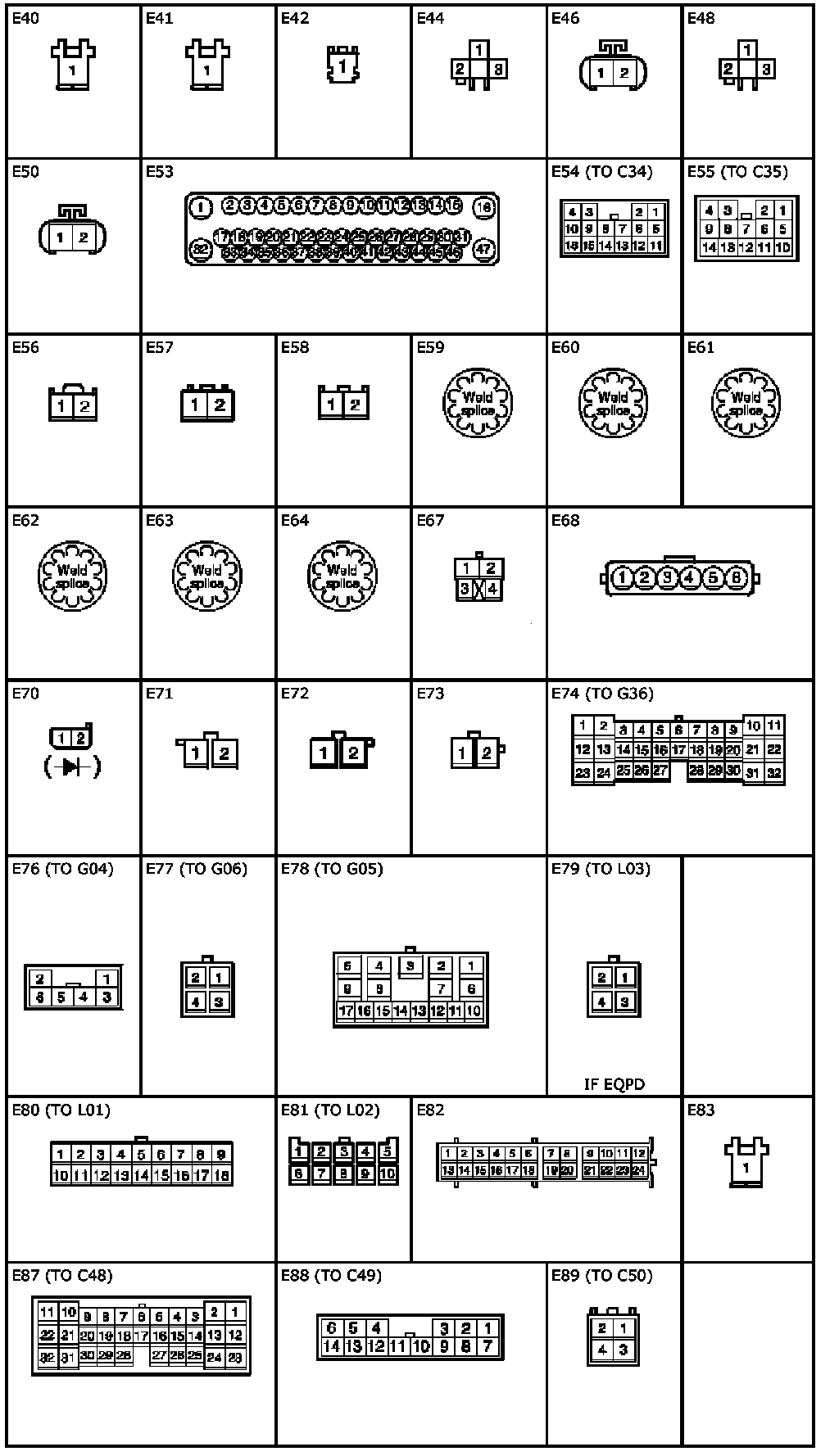

E40 - E89:
E90 - E93:
