Operation CHARM
: Car repair manuals for everyone.
Home
>>
Suzuki
>>
2006
>>
Grand Vitara 2WD V6-2.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
G Connectors
G Connectors

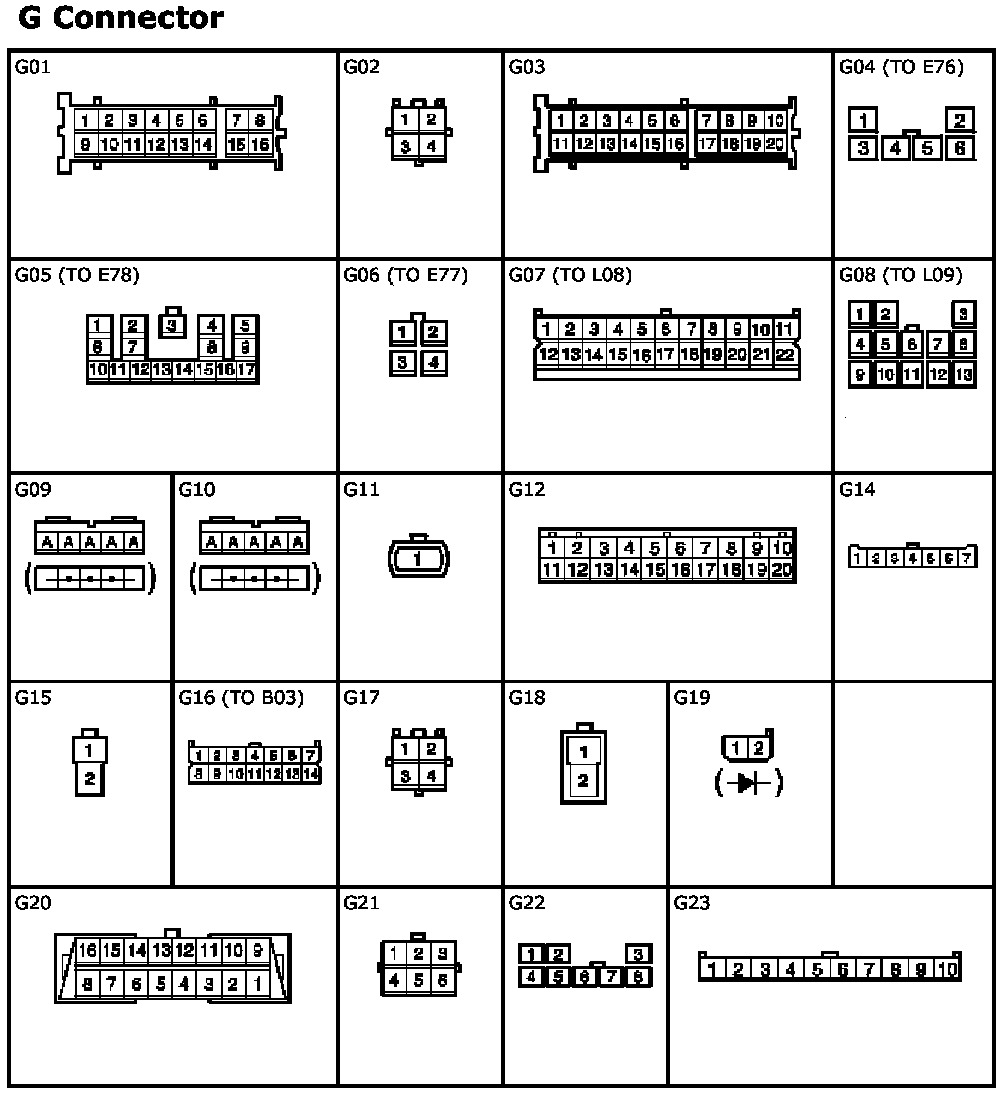

G01 - G23:

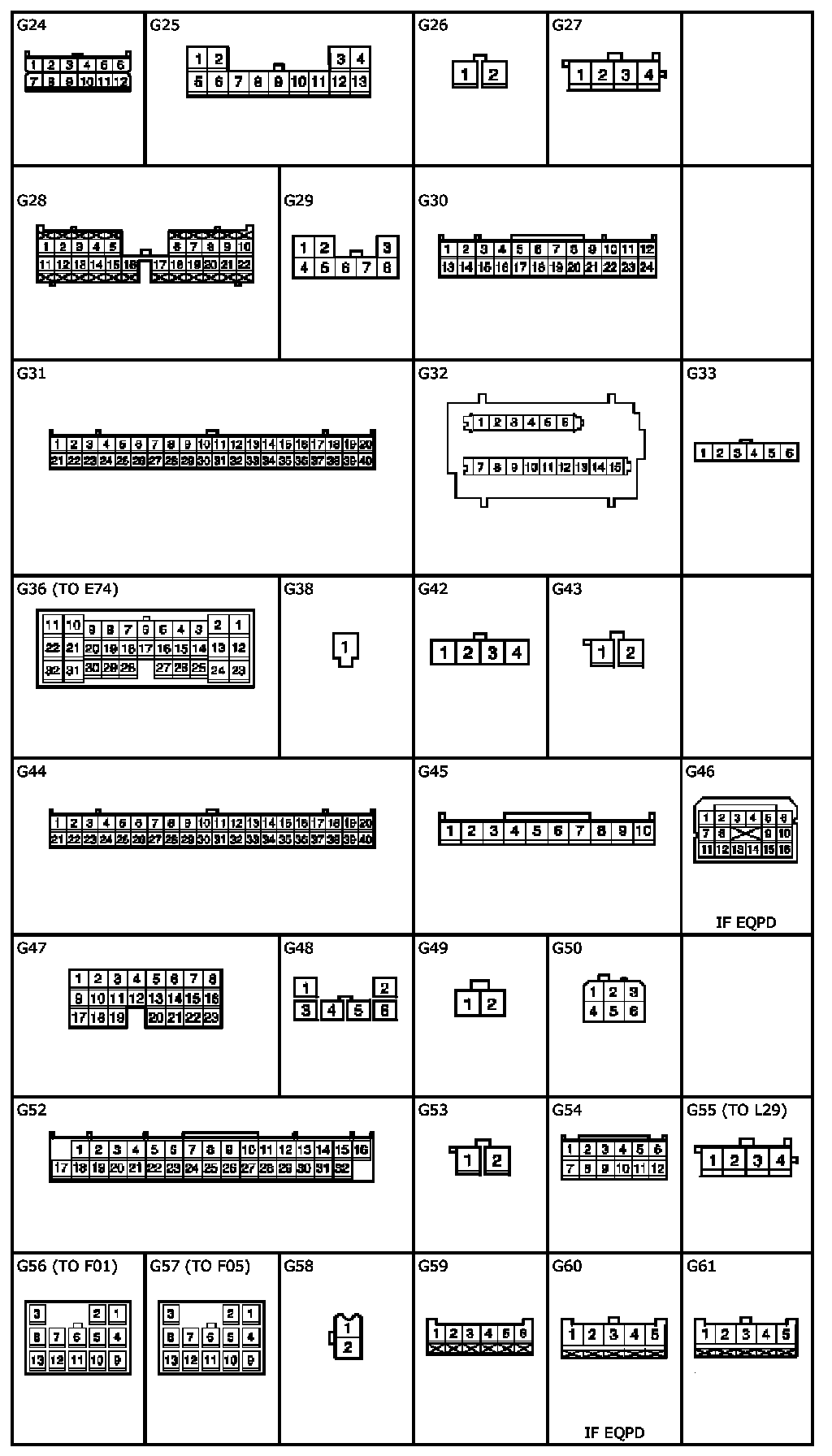

G24 - G61:

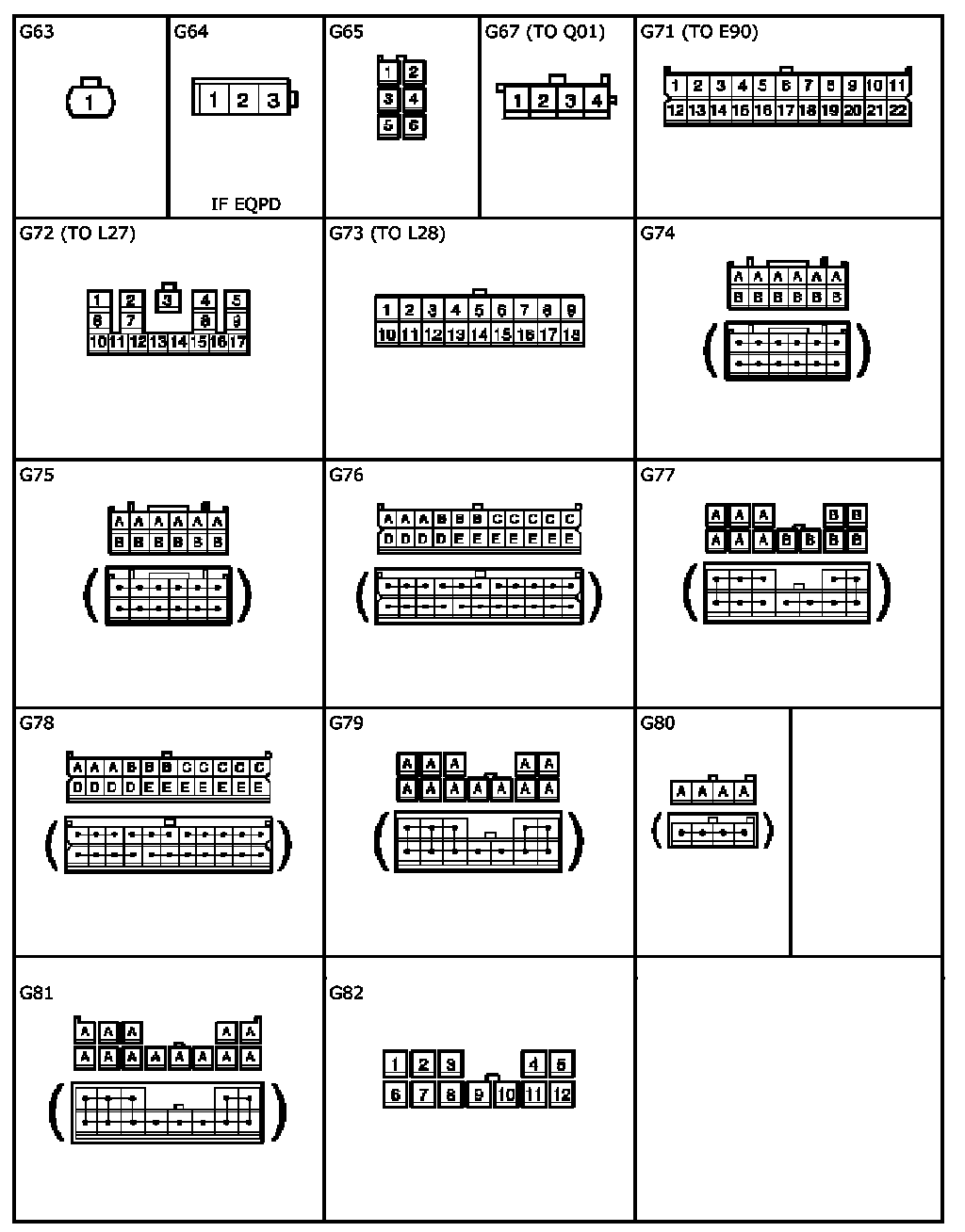

G63 - G82:
