Operation CHARM
: Car repair manuals for everyone.
Home
>>
Suzuki
>>
2006
>>
Grand Vitara 2WD V6-2.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
J Connectors
J Connectors

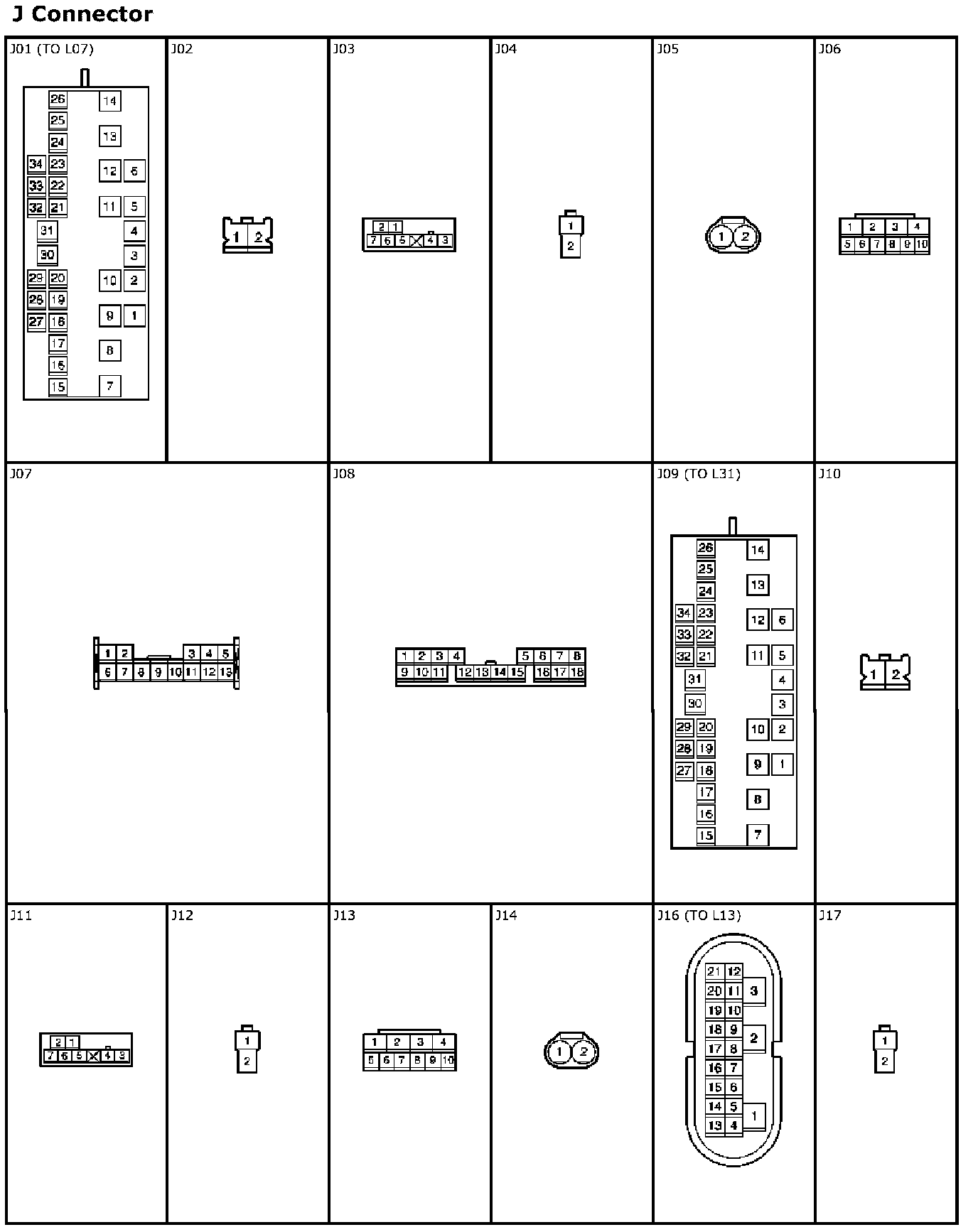

J01 - J17:

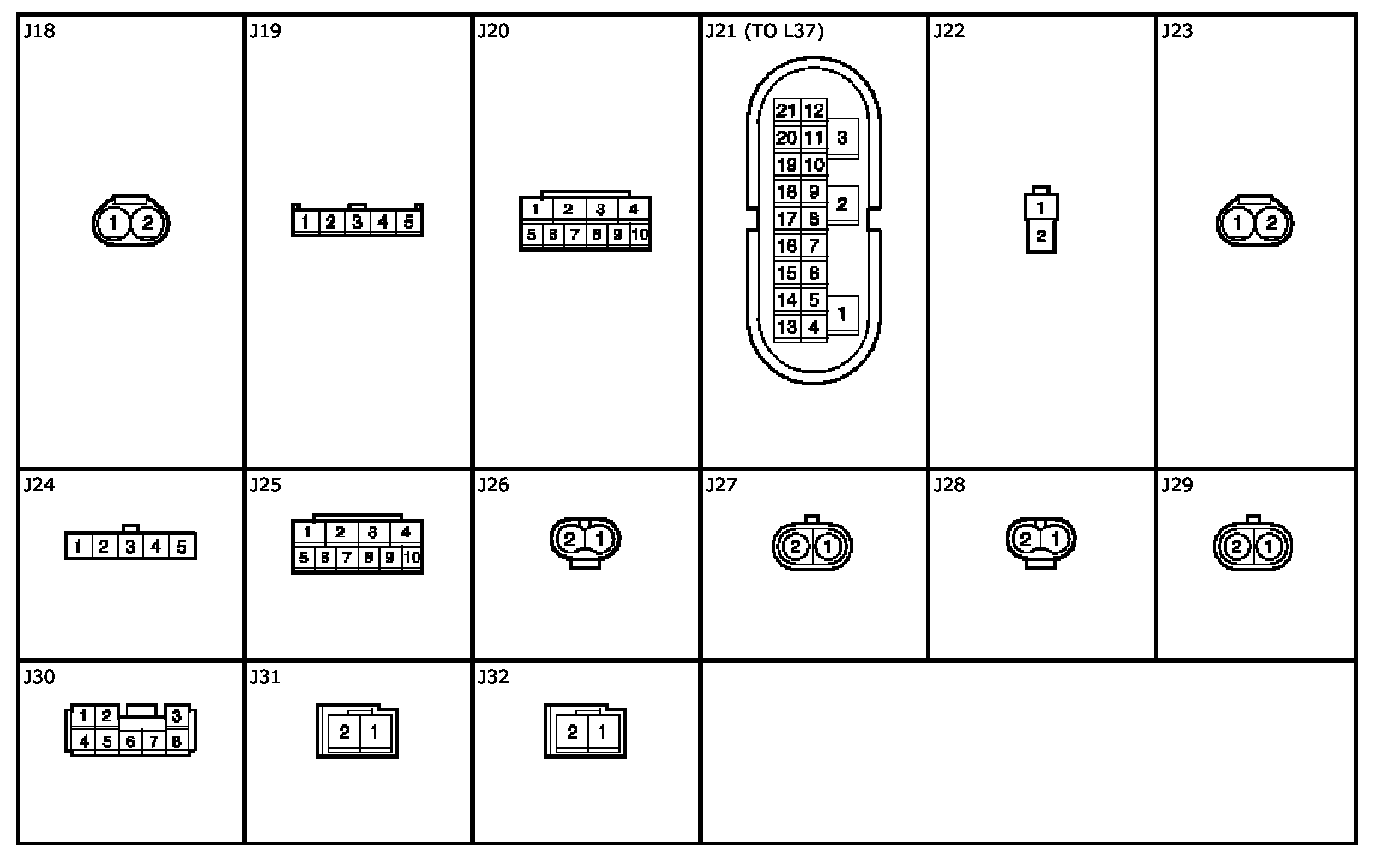

J18 - J32:
