Operation CHARM
: Car repair manuals for everyone.
Home
>>
Suzuki
>>
2006
>>
Grand Vitara 2WD V6-2.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
L Connectors
L Connectors

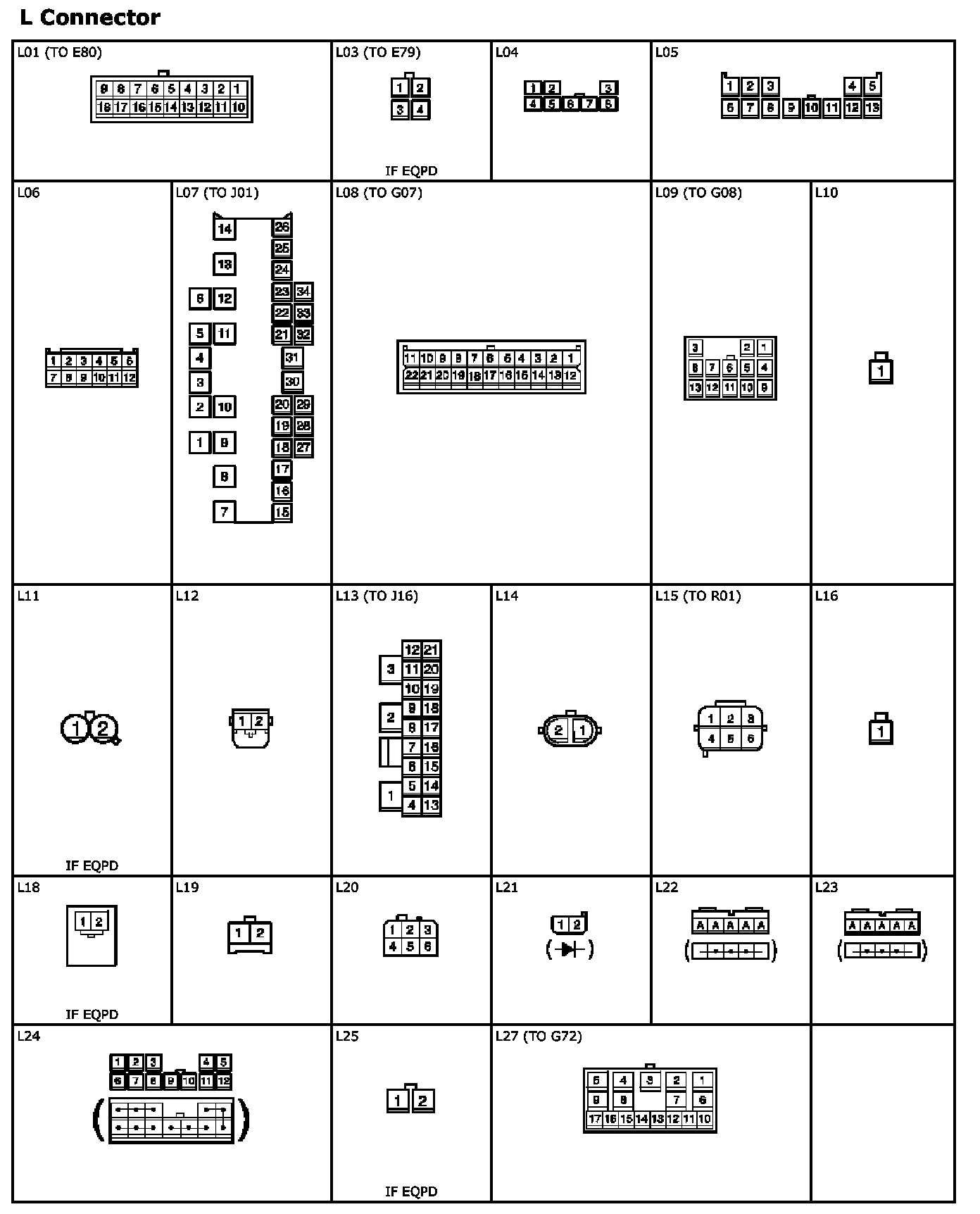

L01 - L27:

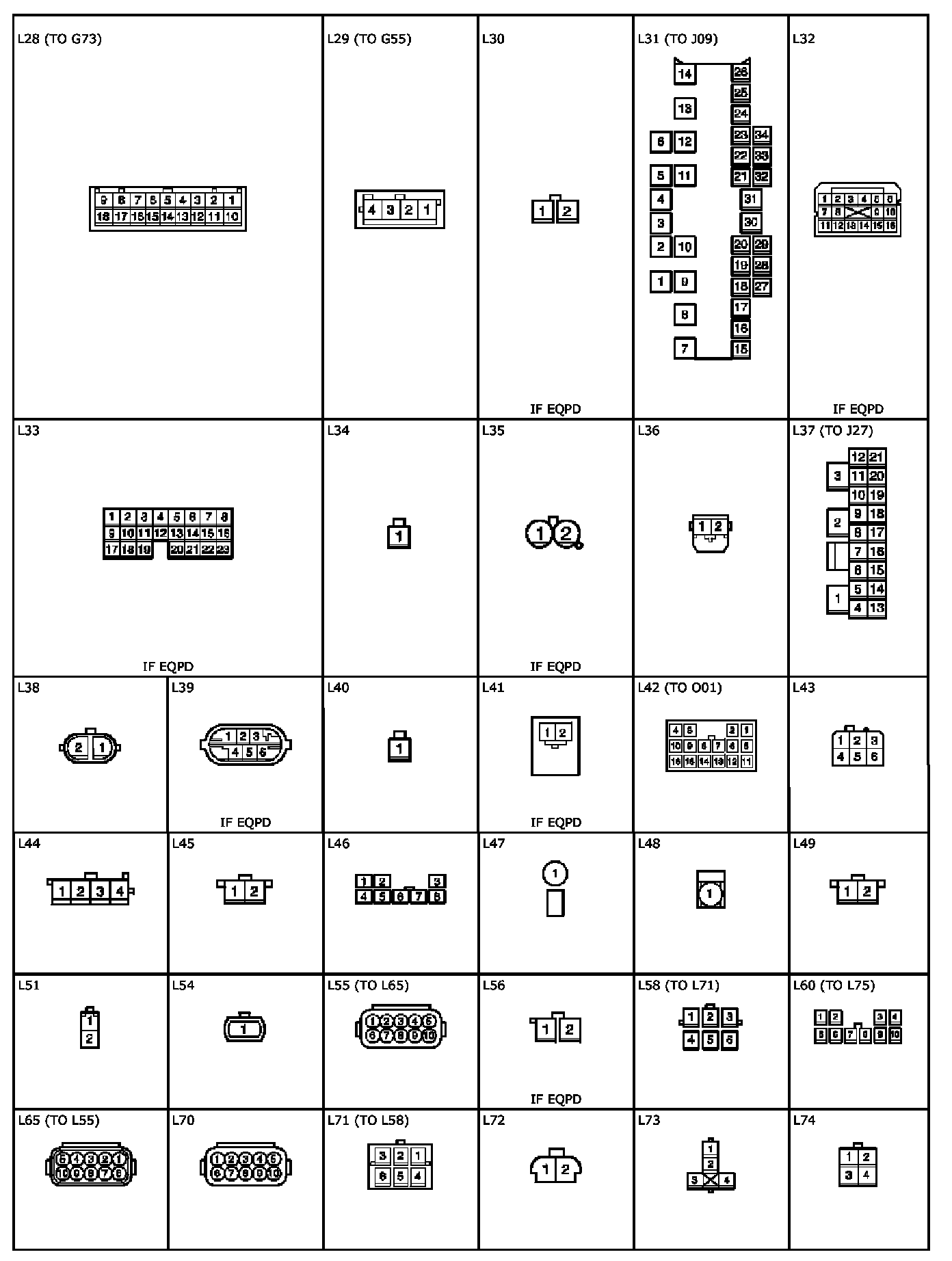

L28 - L74:
L75 - L78:
