Compressor Clutch: Service and Repair
Magnet Clutch Removal and InstallationReference: Magnet Clutch Operating Check
Removal
1. Remove compressor from vehicle.
2. Fix armature plate (1) with special tool (A) and remove armature plate bolt.
Special Tool
(A): 09991-06310
NOTE: Do not reuse armature plate bolt.
3. Remove armature plate.
4. Remove shim(s) from shaft.

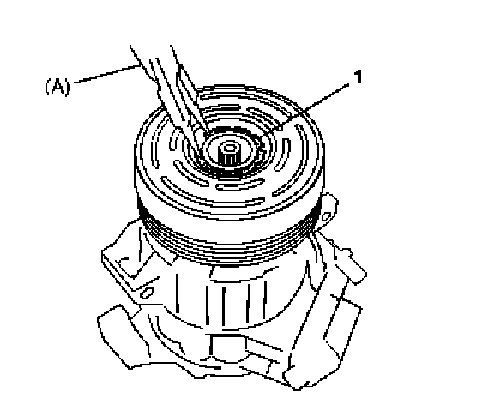

5. Using special tool (A), remove snap ring (1).
Special Tool
(A): 09900-06107

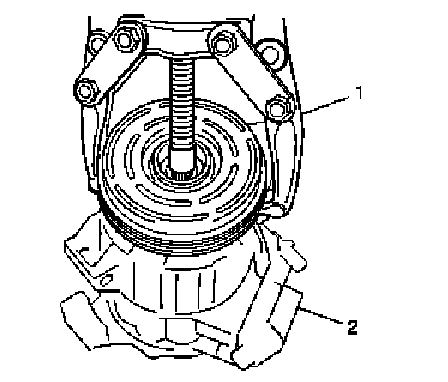

6. Remove magnet clutch pulley (1) with puller (2).
NOTE: Be careful not to damage pulley.

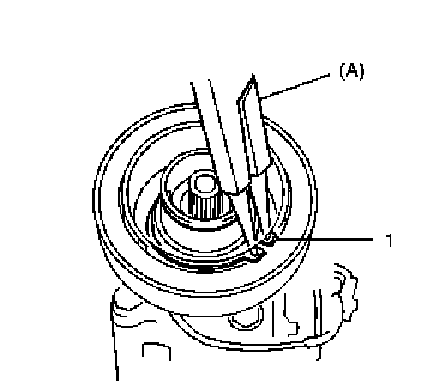

7. Remove snap ring (1) using special tool (B), and then remove magnet clutch coil (1).
Special Tool
(A): 09900-06107
Installation
1. Install magnet clutch coil (3).

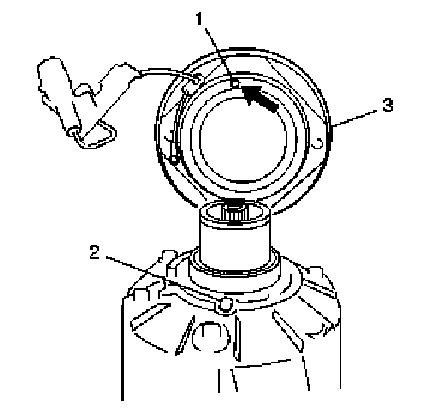

NOTE: Protrusion (1) on underside of magnet clutch coil and hole (2) on compressor body assembly must match to stop movement of magnet clutch coil and to locate lead wire correctly.

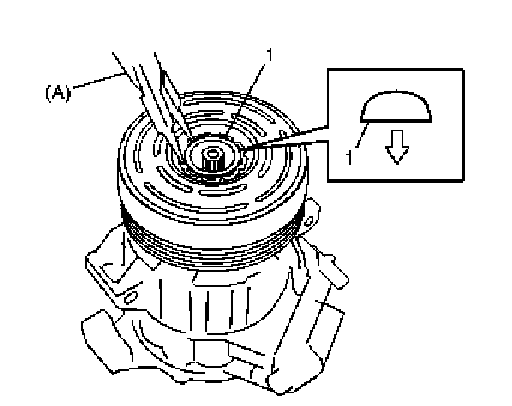

2. Install new snap ring (1) using special tool (A).
Special Tool
(B): 09900-06107
3. Install magnet clutch pulley.
a. Set magnet clutch horizontally over clutch installation boss.

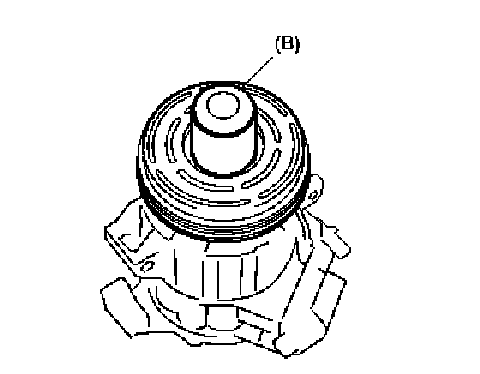

b. Place special tool (B) onto magnet clutch bearing. Ensure that edge rests only inner rase of bearing.
Special Tool
(B): 09951-15510

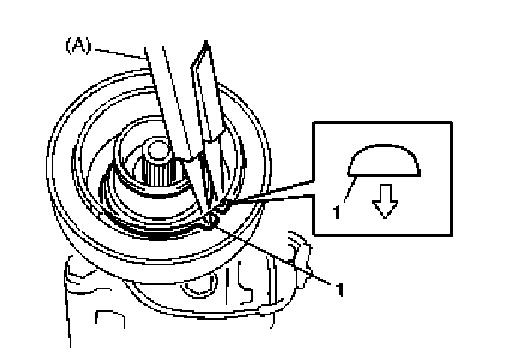

c. Install new snap ring (1) using special tool (A).
Special Tool
(A): 09900-06107
4. Install armature plate (1).
5. Using special tool (A), tighten new armature plate bolt (2) to specified torque.
Tightening torque
Armature plate bolt: 21 Nm (2.1 kg-m, 15.5 lb-ft)
Special Tool
(A): 09991-06310
6. Adjust clearance between armature plate (1) and magnet clutch pulley by putting shim(s) on compressor shaft. To measure the clearance, perform the following steps.
a. Put compressor in a vise.
b. Set dial gauge on magnet clutch plate, and then adjust its pointer at 0.
c. Connect battery positive terminal (+) to magnet clutch coil lead wire.
d. Connect battery negative terminal (-) to compressor body assembly. (At this point, armature plate and magnet clutch pulley (2) are kept in contact.)
e. Disconnect battery negative terminal (-) to compressor body assembly. (At this point, armature plate and magnet clutch pulley (2) are not in contact.)

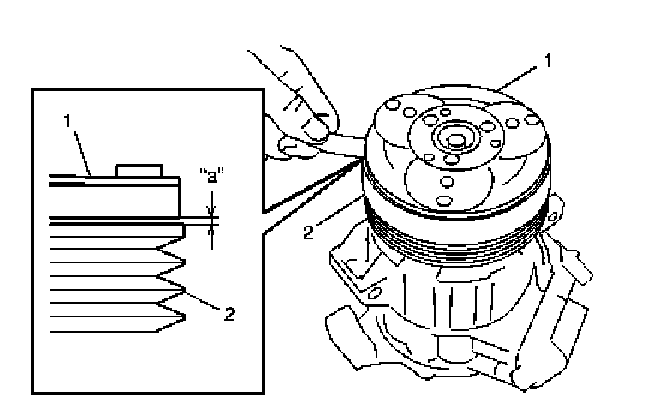

f. Read stroke of armature plate from dial gauge by performing Step d) and e) repeatedly. (Stroke of armature plate is clearance between armature plate and magnet clutch pulley (2).)
Standard clearance between armature plate and magnet clutch
"a": 0.3 - 0.6 mm (0.012 - 0.024 in.)
7. Install compressor to vehicle referring to Compressor Assembly Removal and Installation.
