Compressor Clutch: Testing and Inspection
Magnet Clutch Operating CheckReference: Compressor Assembly Removal and Installation
Check the following items.
If any detects are found, repair or replace magnet clutch assembly.
- Inspect armature plate and rotor for signs of oil.
- Check clutch bearings for noise and grease leakage.

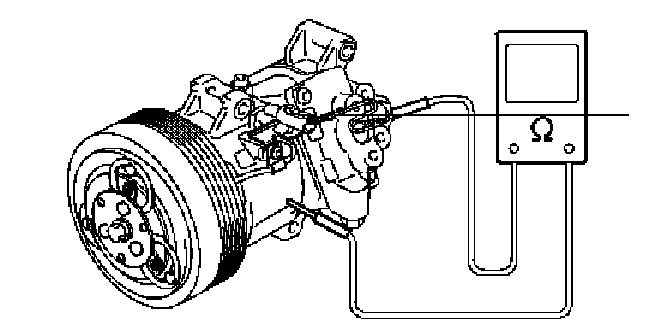

- Using an ohmmeter (3), measure resistance of stator coil between clutch lead wire (1) and body ground (2).
If measured resistance is not within tolerance, replace coil.
Specified current of magnet clutch
Approx. 3.8 - 6.0 Ohms at 25 degrees C (77 degrees F)
