Locations
>>
Connector Locations
>>
F Connectors
F Connectors

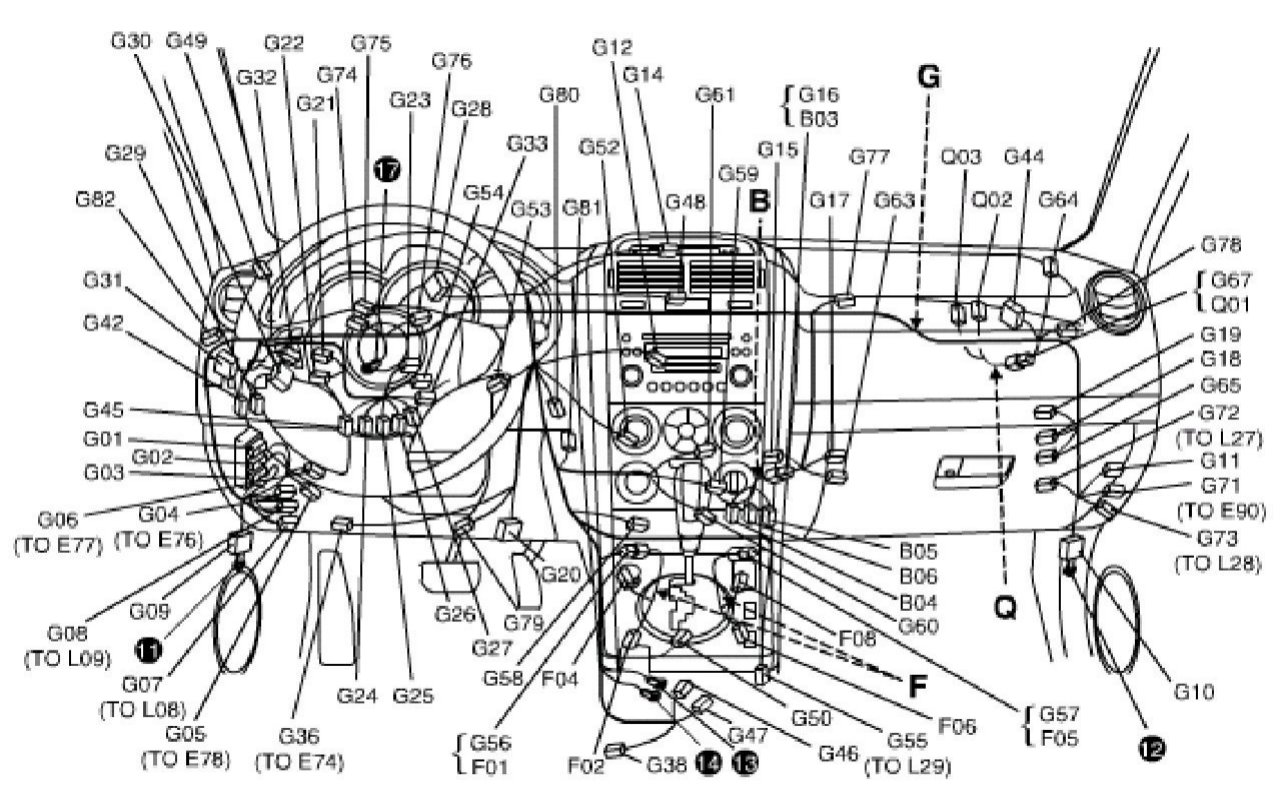

B A/C Wire / F Console Wire / G Instrument Panel Harness / Q A/B Wire View:

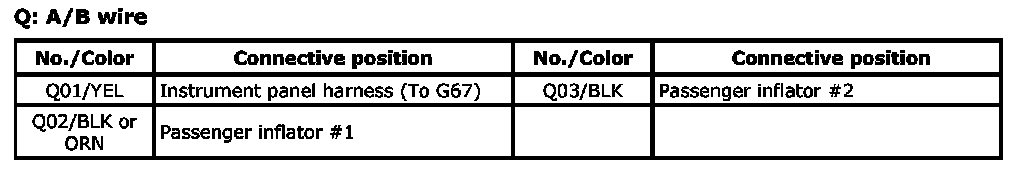

Q: A/B Wire Index:
