Home
>>
Suzuki
>>
2006
>>
Grand Vitara 2WD V6-2.7L
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
K Connectors
K Connectors

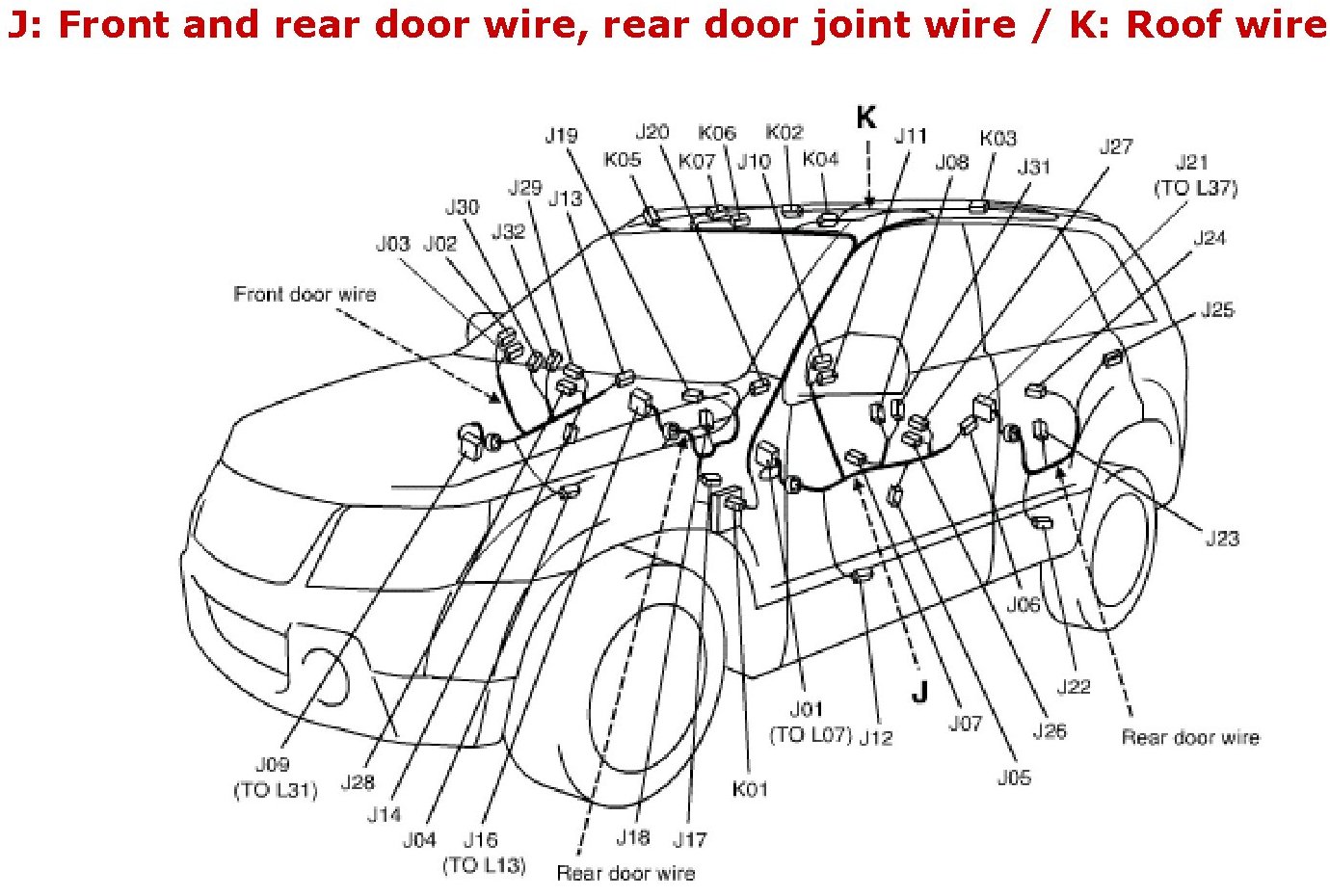

J Front And Rear Door Wire, Rear Door Joint Wire / K Roof Wire View:

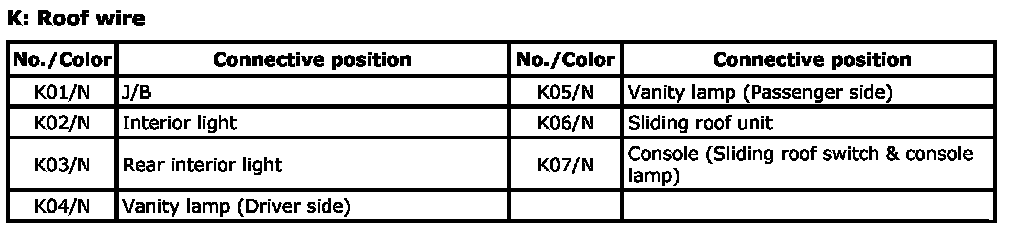

K: Roof Wire Index:
