Locations
>>
Connector Locations
>>
L Connectors
L Connectors

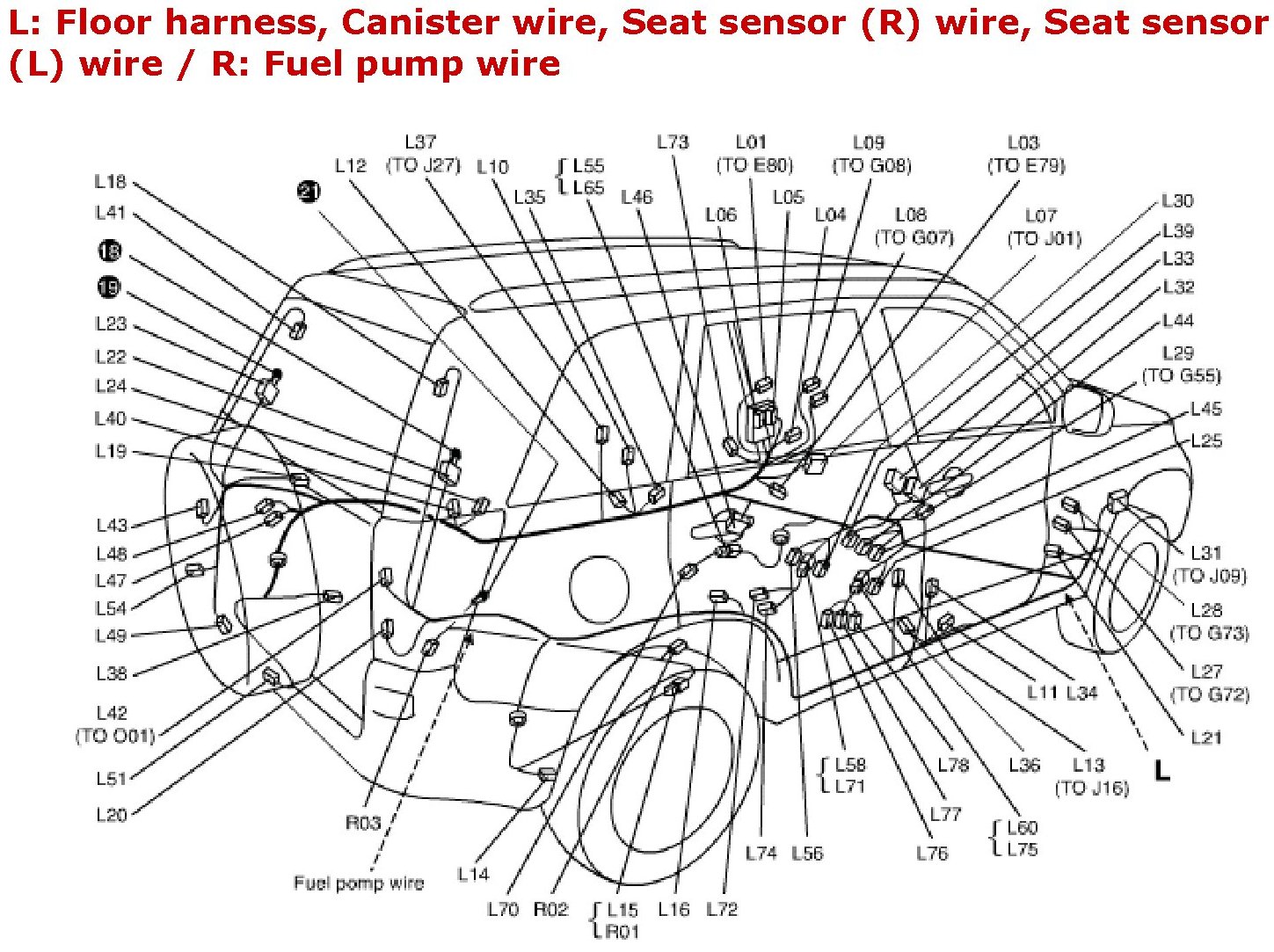

L Floor Harness, Canister Wire, Seat Sensor (R) Wire, Seat Sensor (L) Wire / R Fuel Pump Wire View:

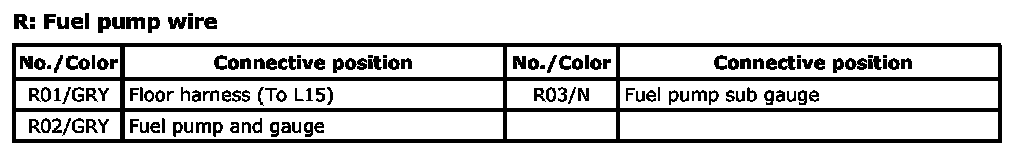

R: Fuel Pump Wire Index:
