Power Steering Fluid: Service and Repair

P/S Fluid Change

CAUTION: Do not use any fluid other than the specified P/S fluid. Use of any fluid other than the specified P/S fluid may cause juddering or some other faulty condition to occur.

1. Lift up vehicle.
2. Remove front under cover.

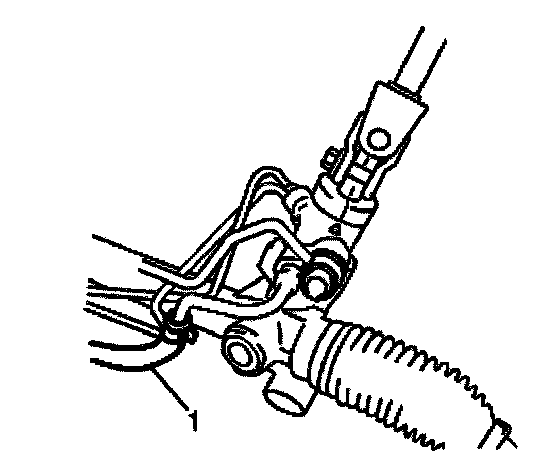

3. When engine is cool, remove P/S gear low pressure hose (1) from pipe and drain P/S fluid from low pressure hose.





4. Install low pressure hose to pipe.
5. Fill specified P/S fluid and bleed air.

P/S fluid specification Equivalent of DEXRON-II

P/S fluid capacity reference value 0.7 - 0.8 liters (1.48/1.23 - 1.69/1.41 US/Imp.pt)
