P/S Fluid Level Check

P/S Fluid Level Check

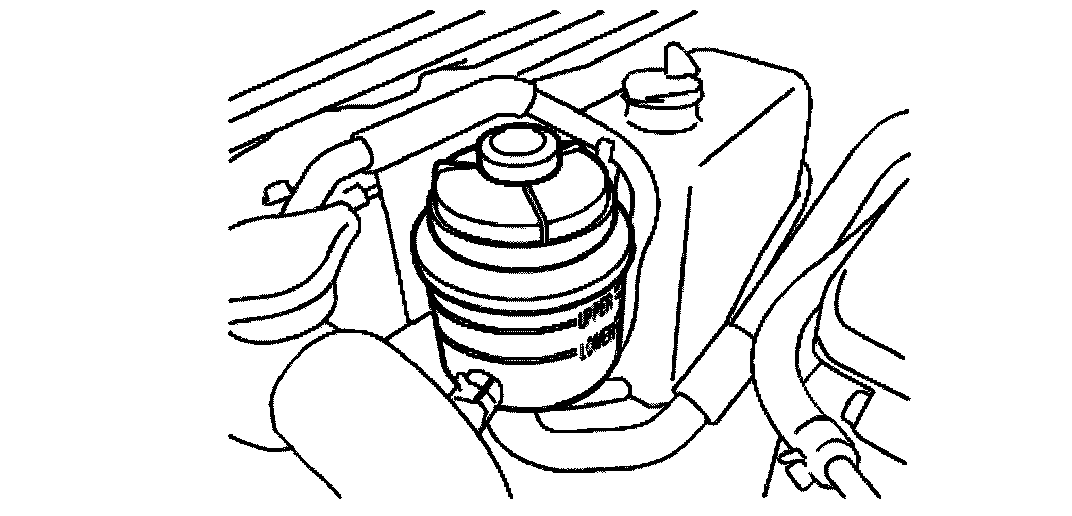

With engine stopped, check fluid level indicated on P/S fluid reservoir, which should be between UPPER and LOWER marks. If it is lower than LOWER mark, fill fluid up to UPPER mark.

NOTE:
^ Be sure to use an specified power steering fluid.
^ Fluid level should be checked when fluid is cool.
