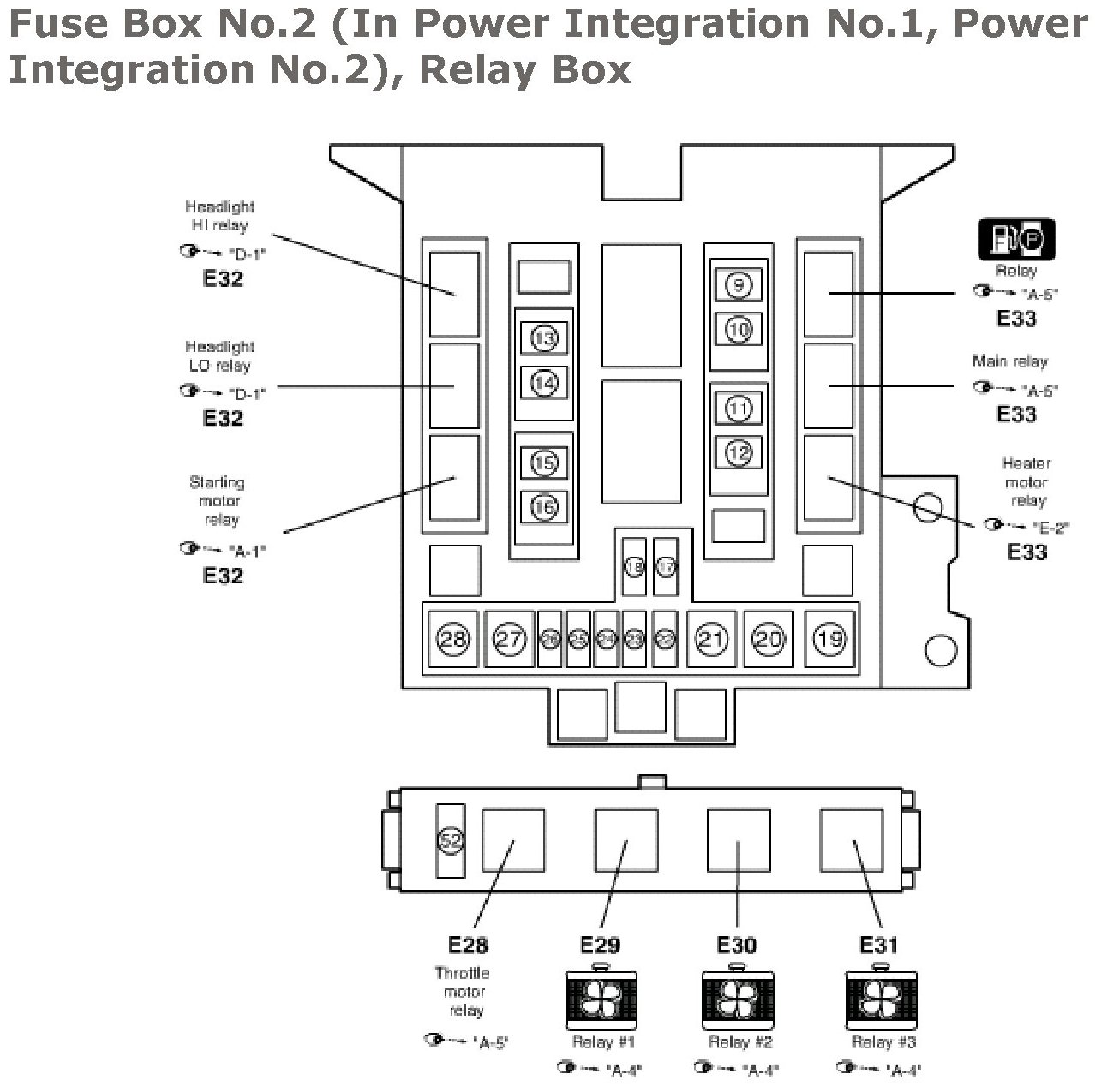

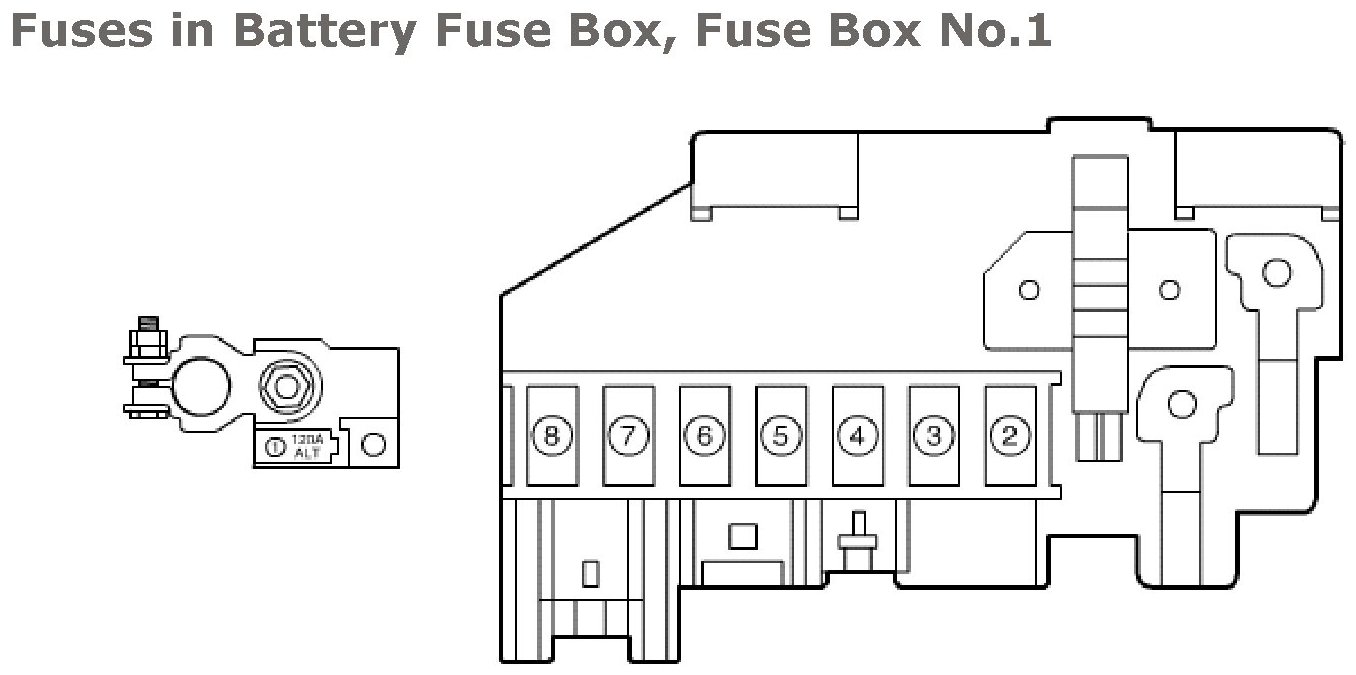

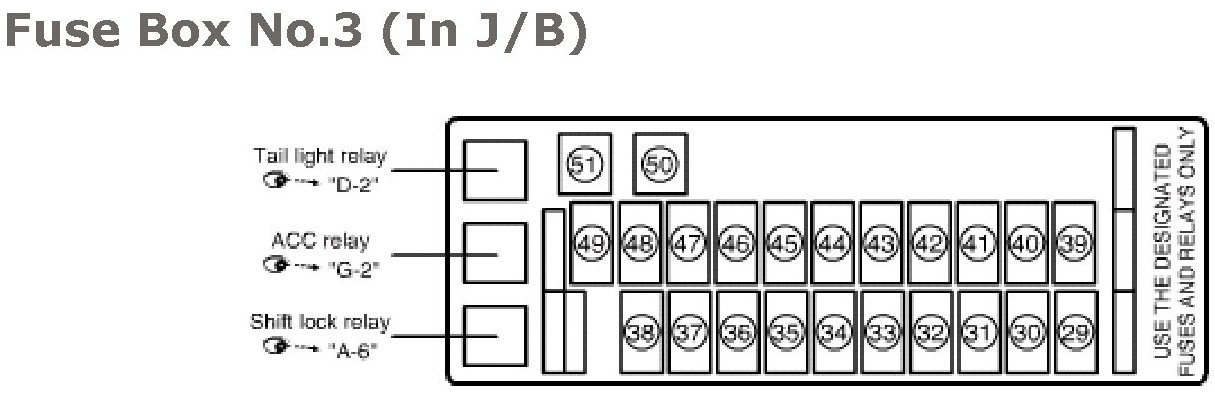

Fuse: Locations

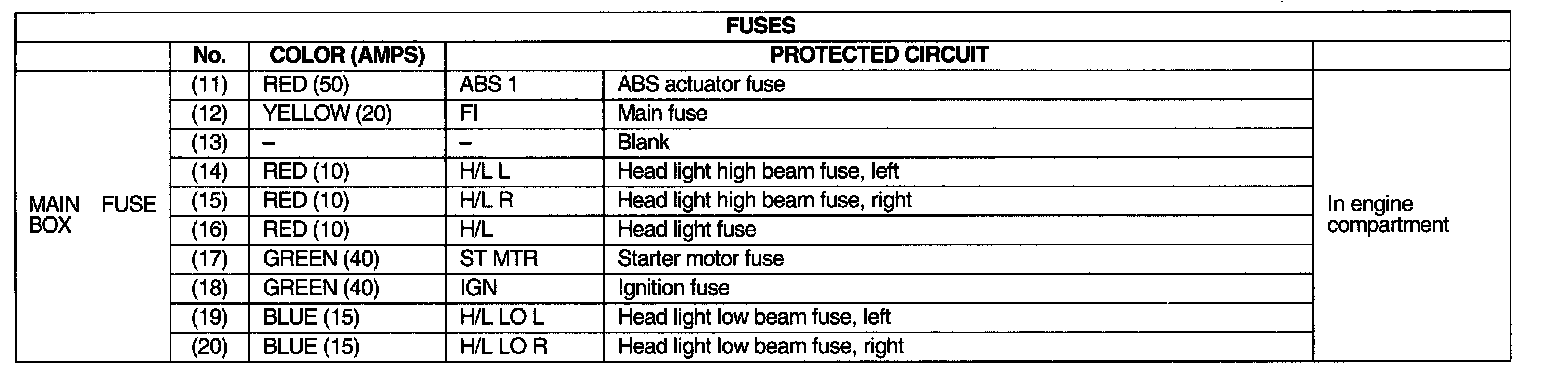

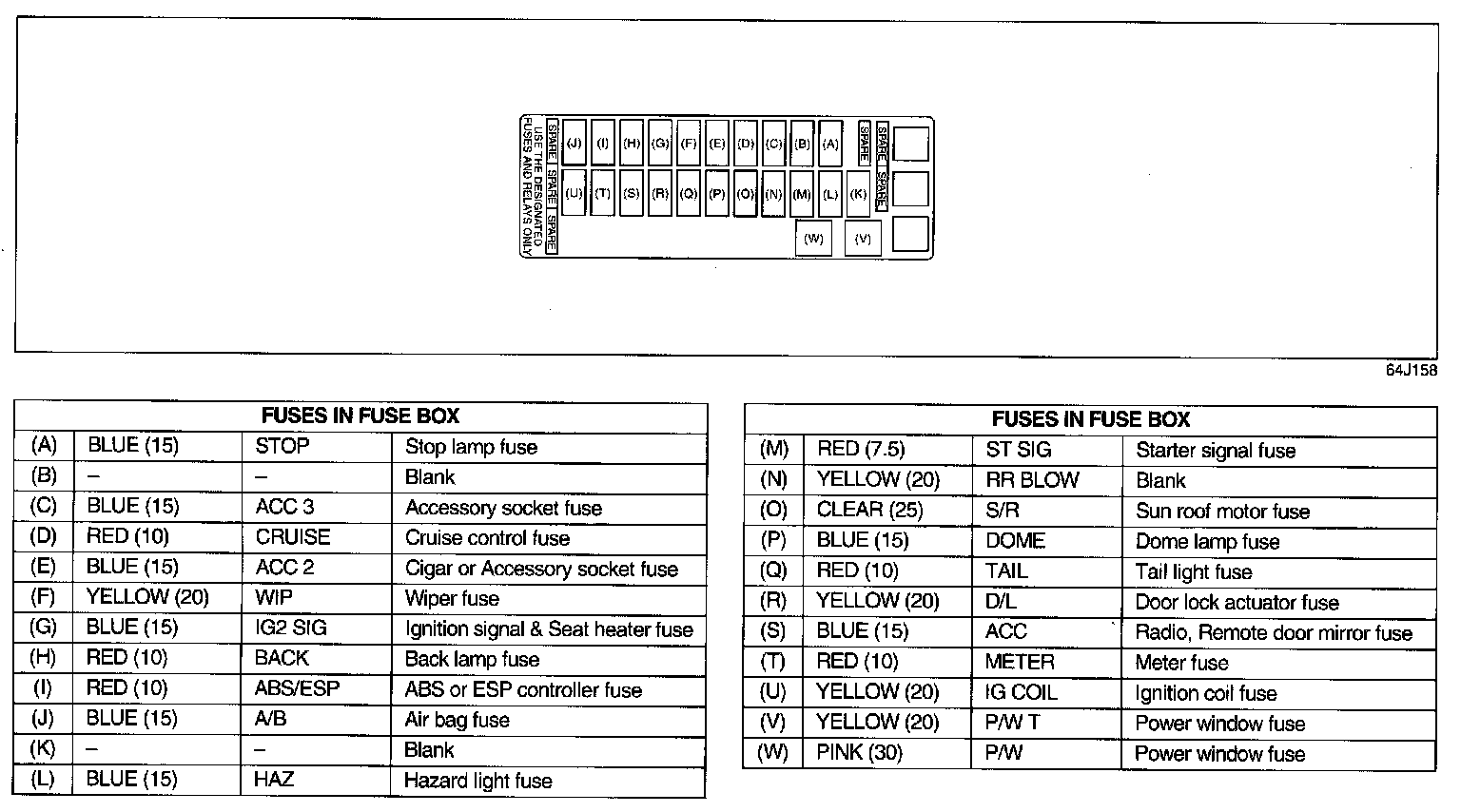

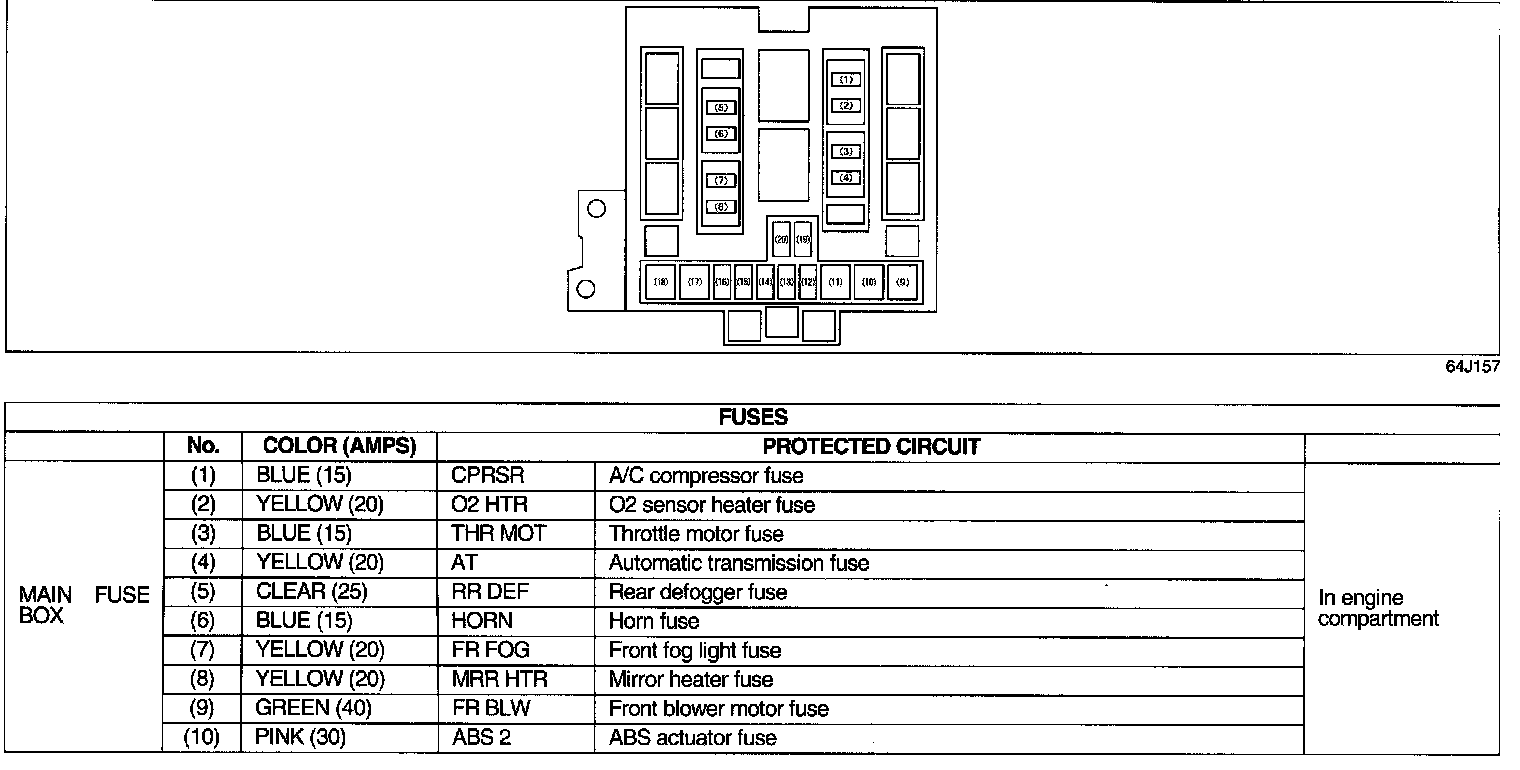

Application Table:
Application Table:
Application Table:
Application Table:

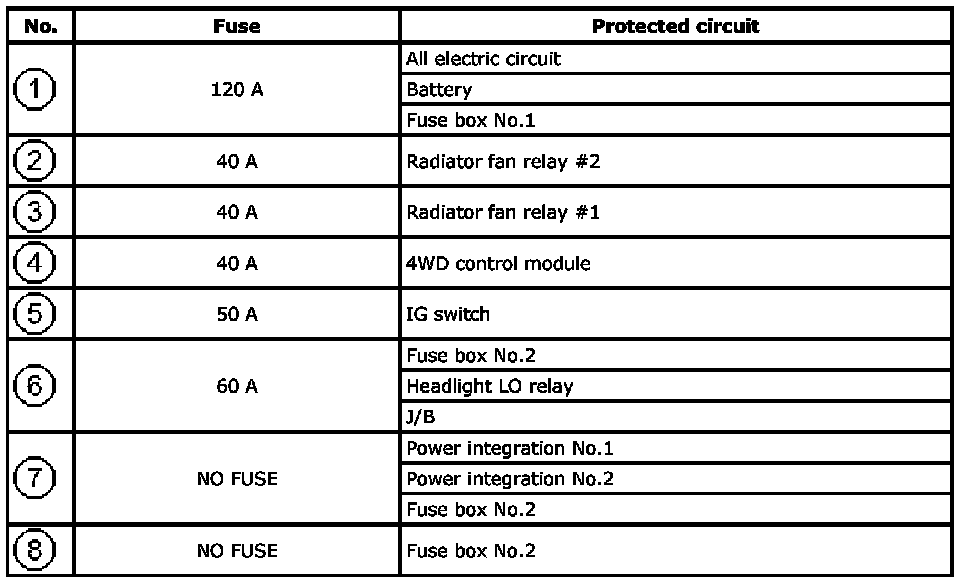

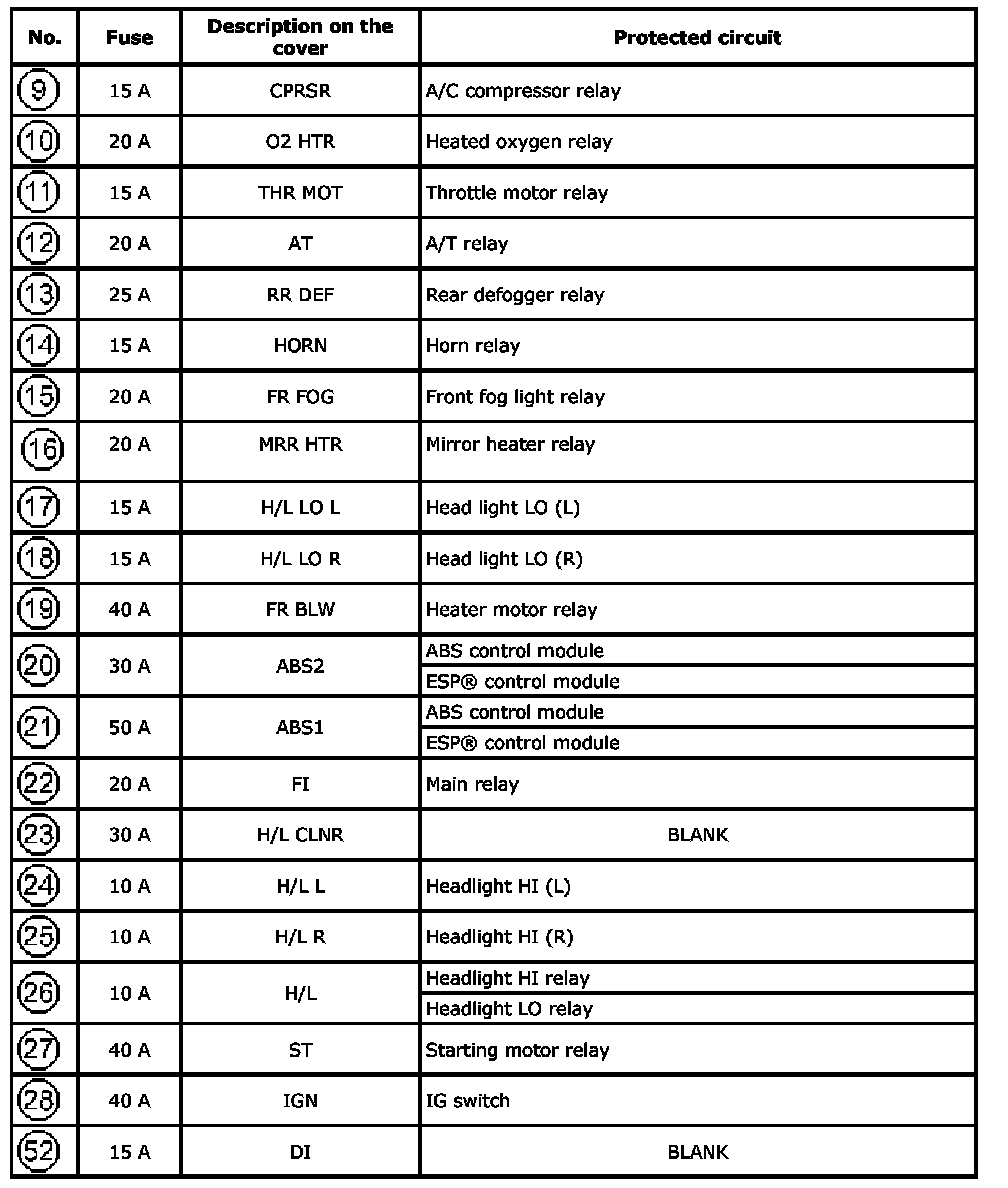

Fuses And Protected Circuits:

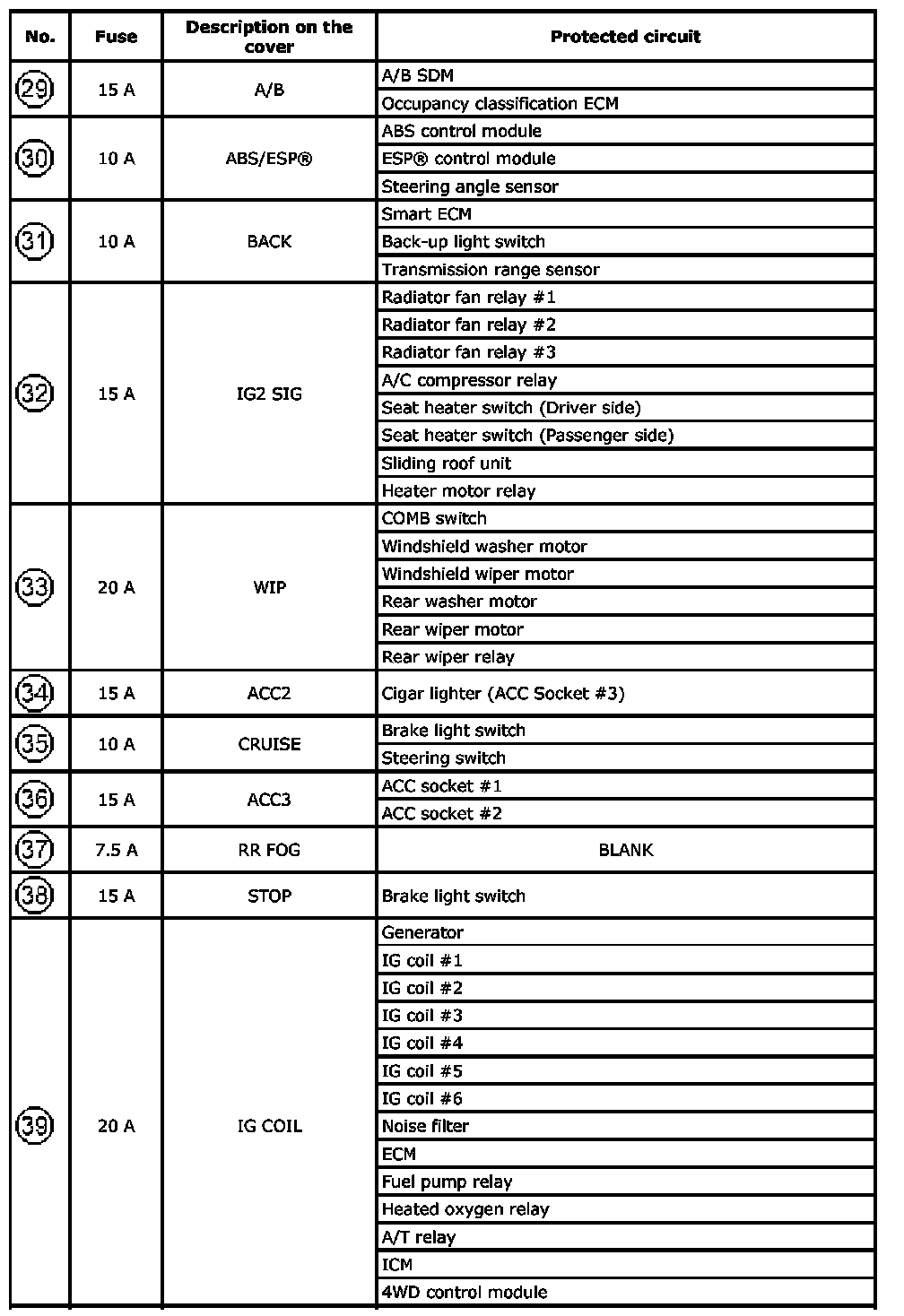

Fuses And Protected Circuits Part 2:
