A/C System Circuits Check

A/C System Circuits Check

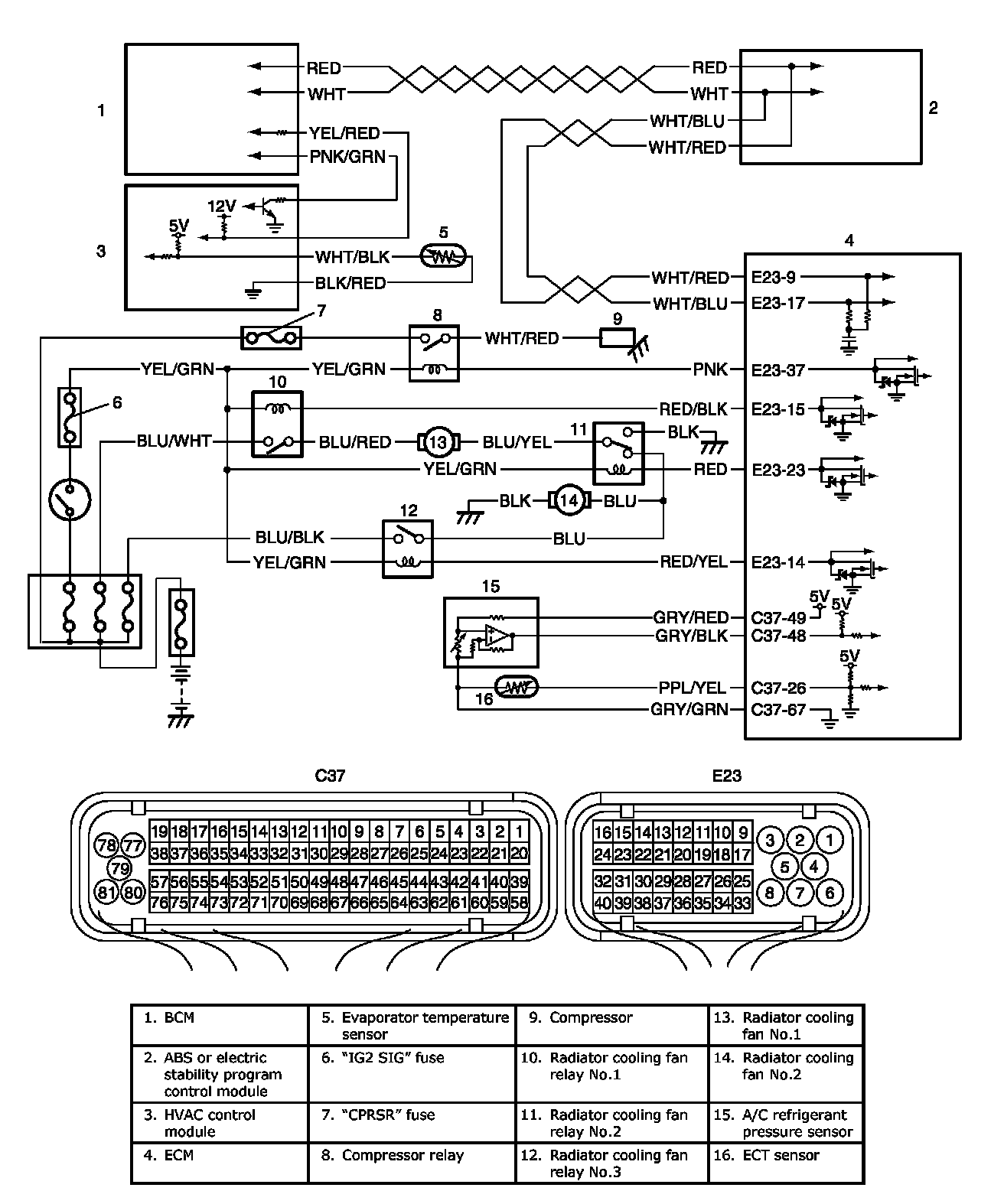

Wiring Diagram:




Wiring Diagram

Step 1 - 5 (Continued):




Step 5 (Continued) - 11 (Continued):

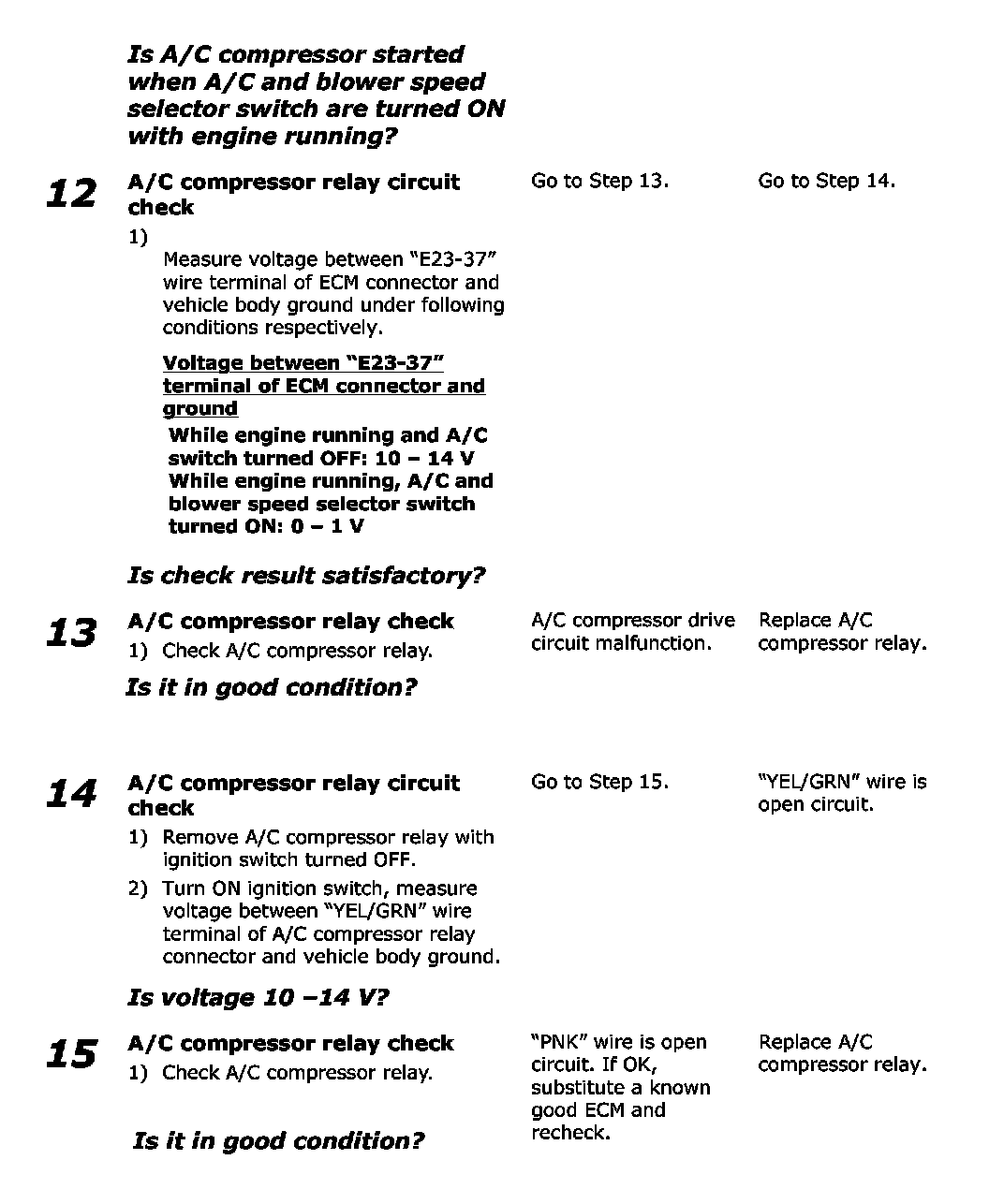

Step 11 (Continued) - 15:

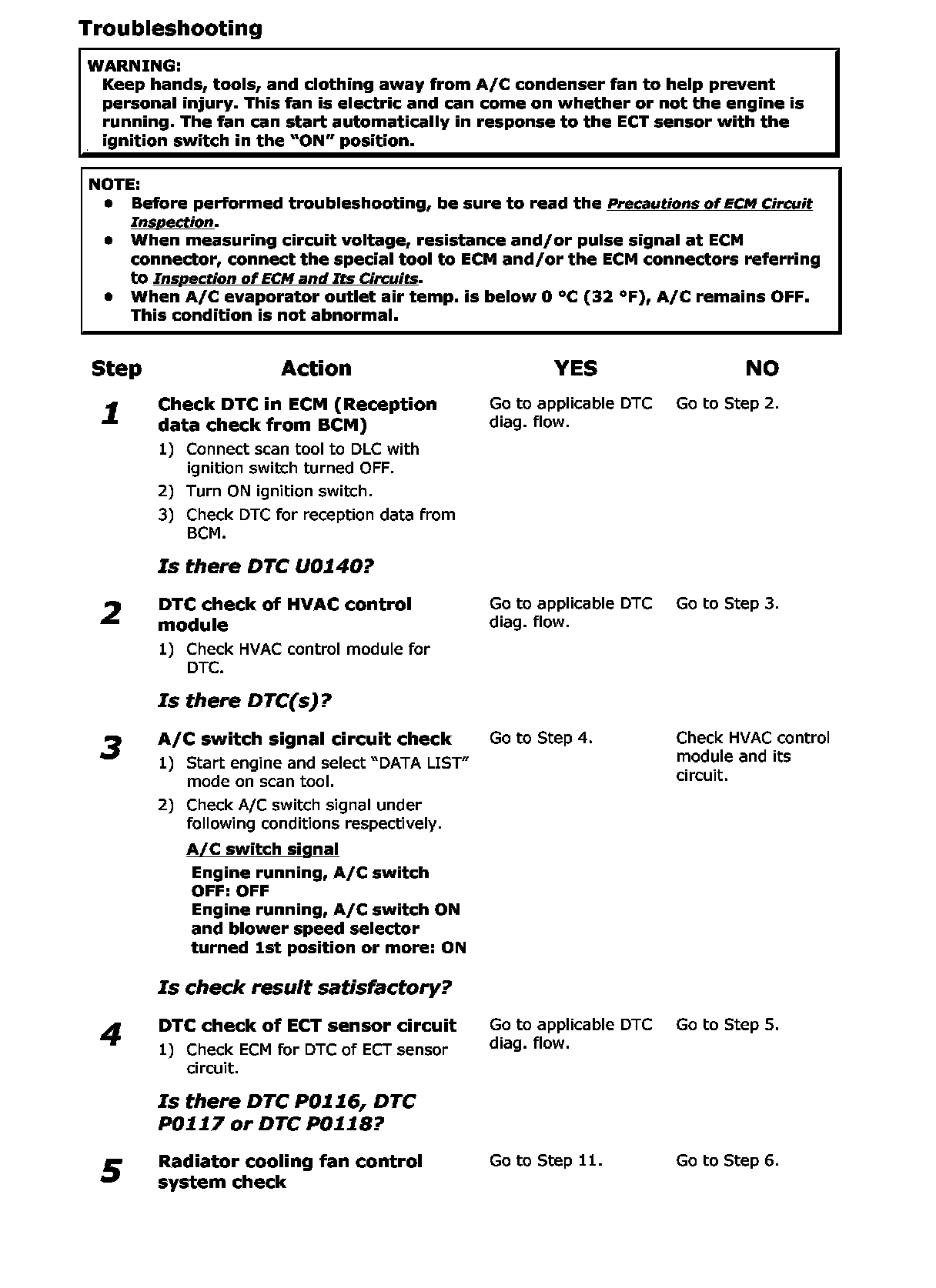

Troubleshooting
