ECM

Fail-Safe Table

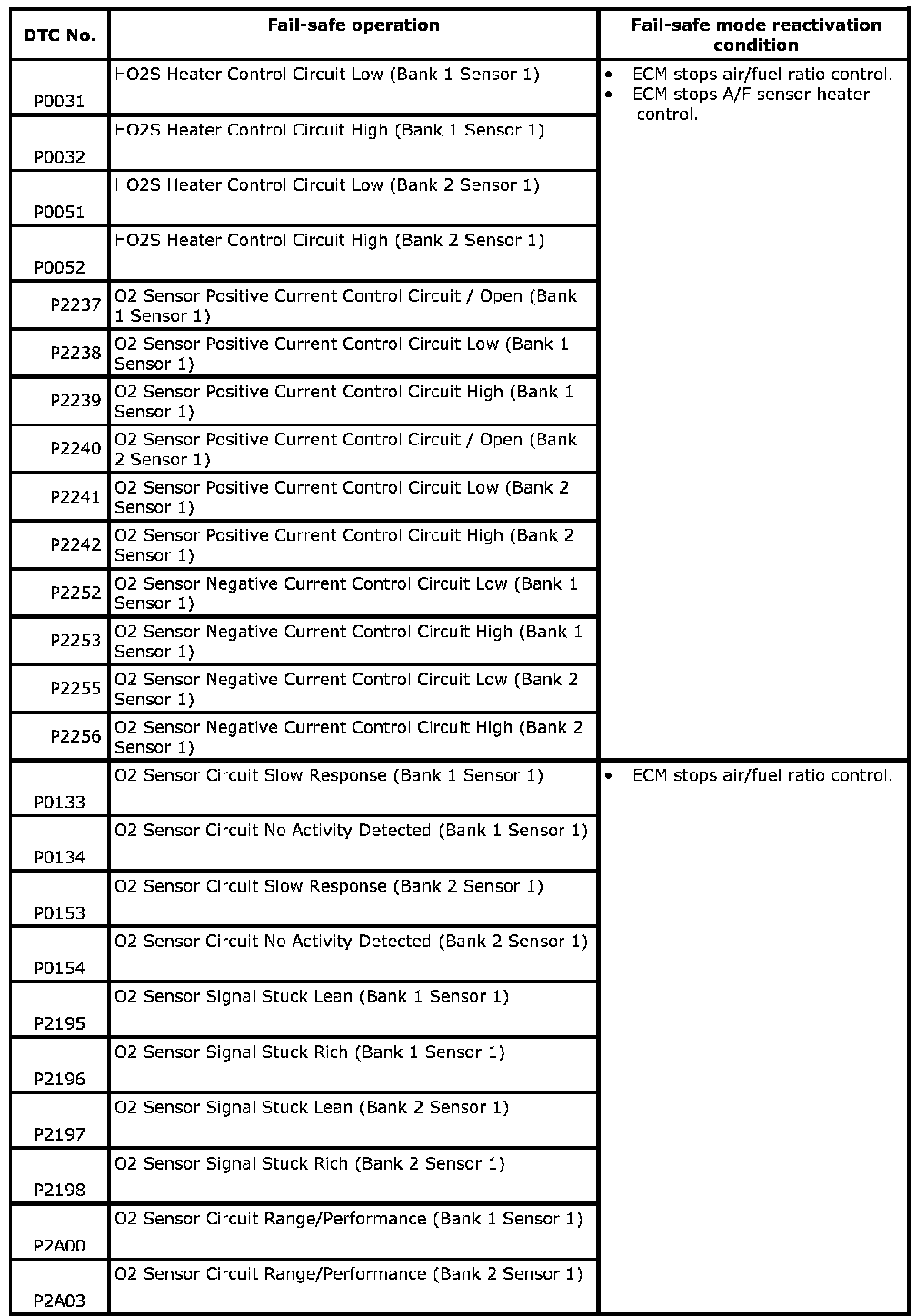

P0031 - P2A03:

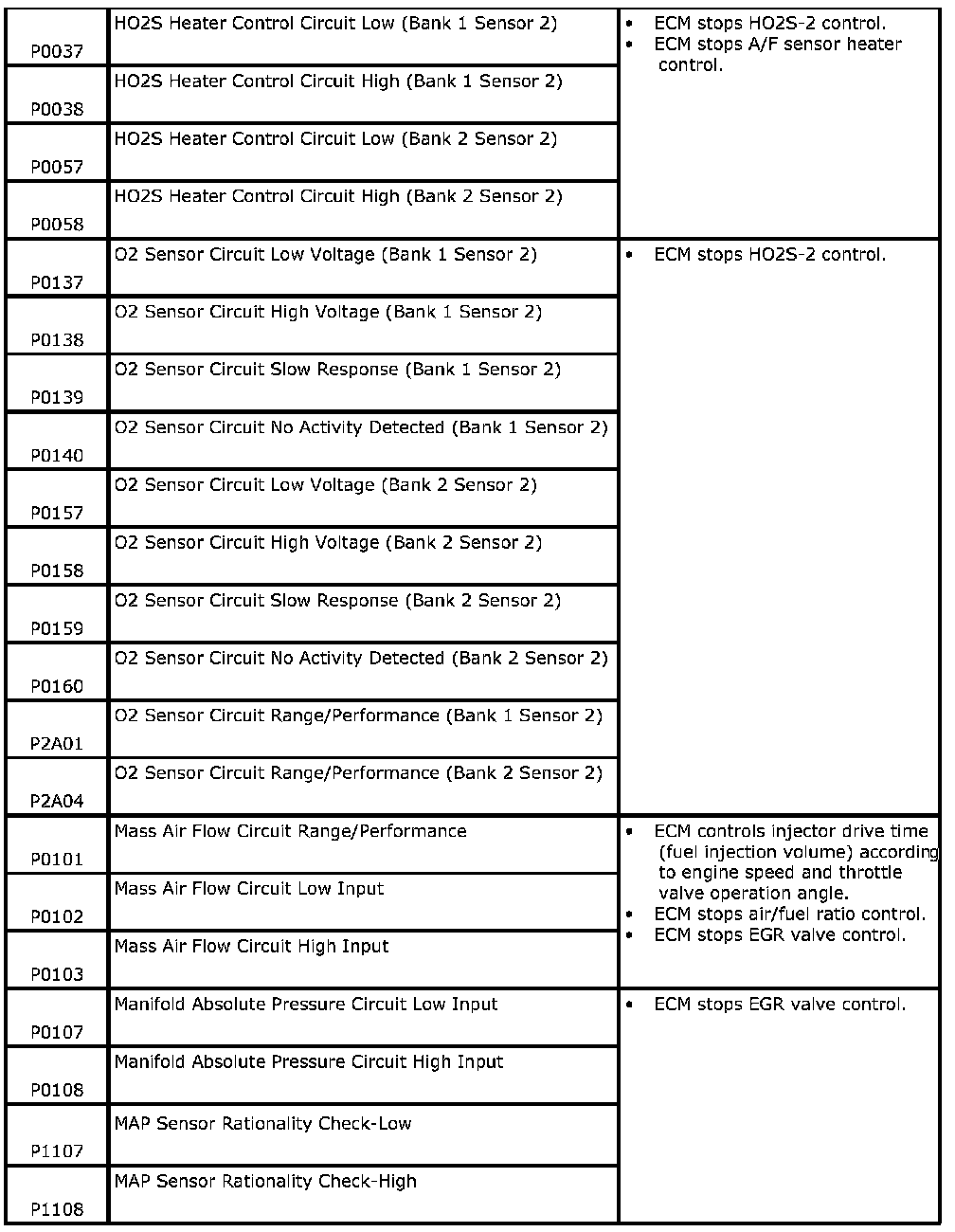

P0037 - P1108:

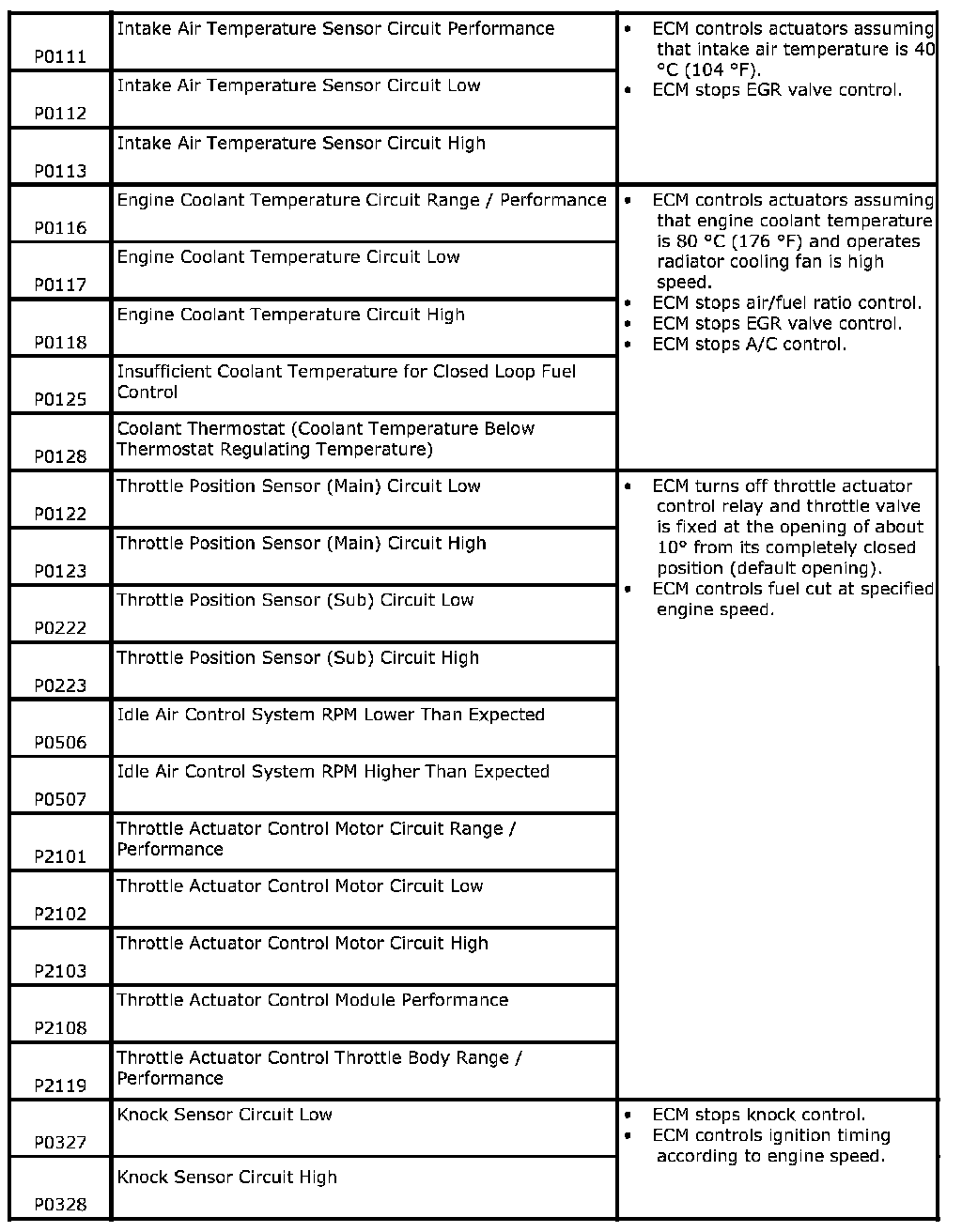

P0111 - P0328:




P0335 - U0140:




When any of the DTCs is detected, ECM enters fail-safe mode as long as malfunction continues to exist but that mode is canceled when ECM detects normal condition after that.
