Engine Symptom Diagnosis

Engine Symptom Diagnosis

Engine Symptom Diagnosis Part 1:

Engine Symptom Diagnosis Part 2:

Engine Symptom Diagnosis Part 3:

Engine Symptom Diagnosis Part 4:

Engine Symptom Diagnosis Part 5:

Engine Symptom Diagnosis Part 6:

Engine Symptom Diagnosis Part 7:

Engine Symptom Diagnosis Part 8:

Engine Symptom Diagnosis Part 9:

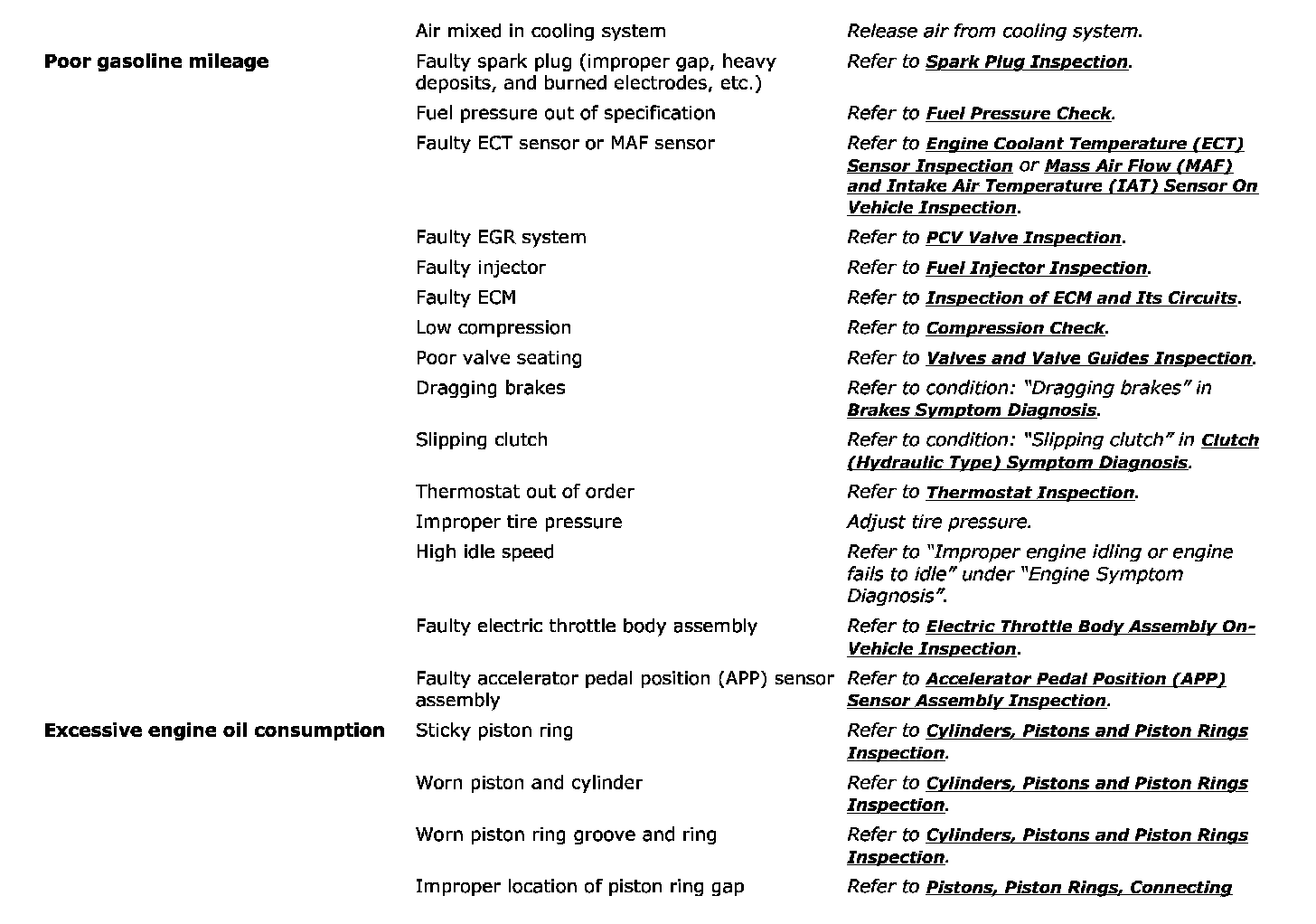

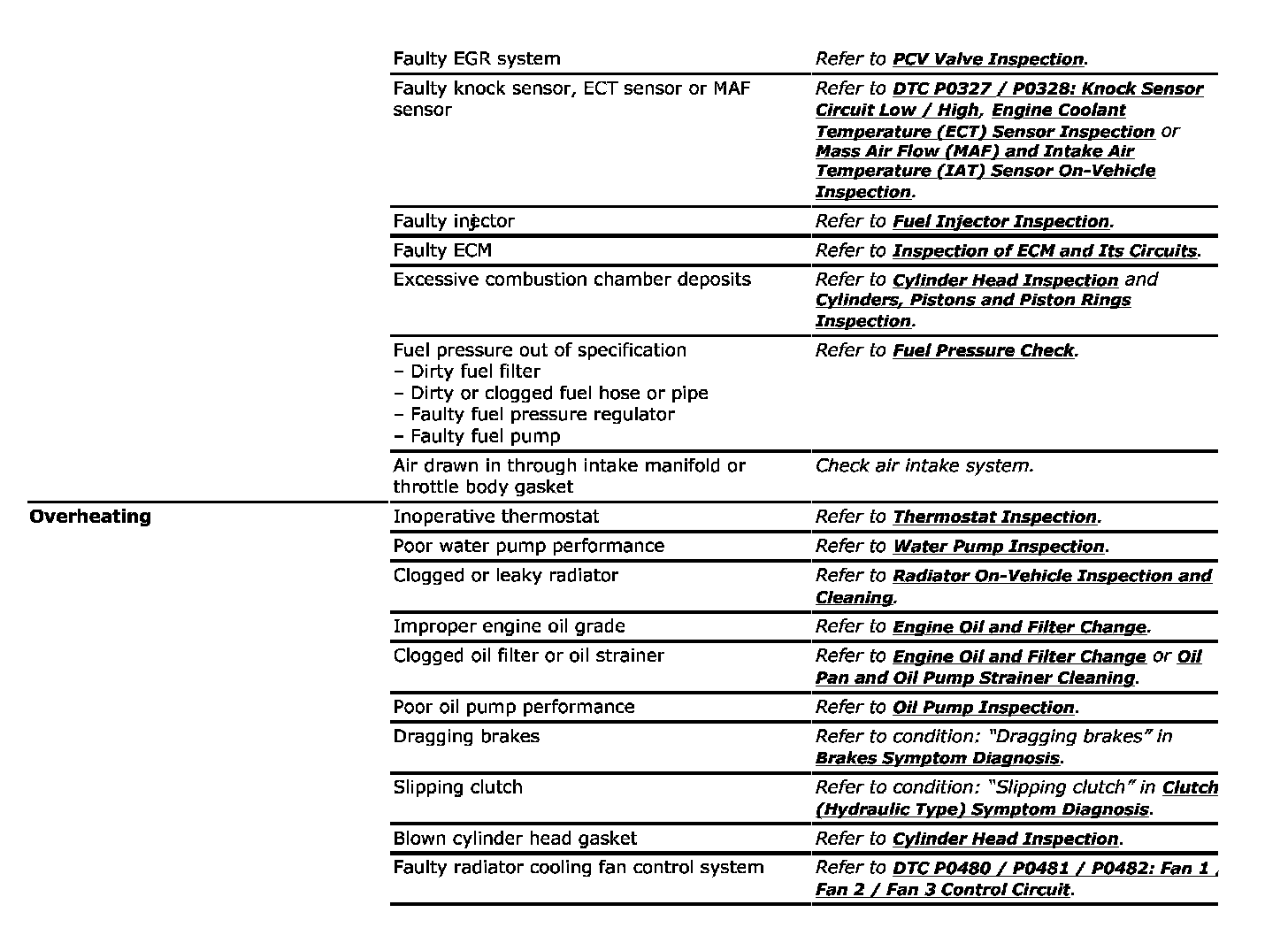

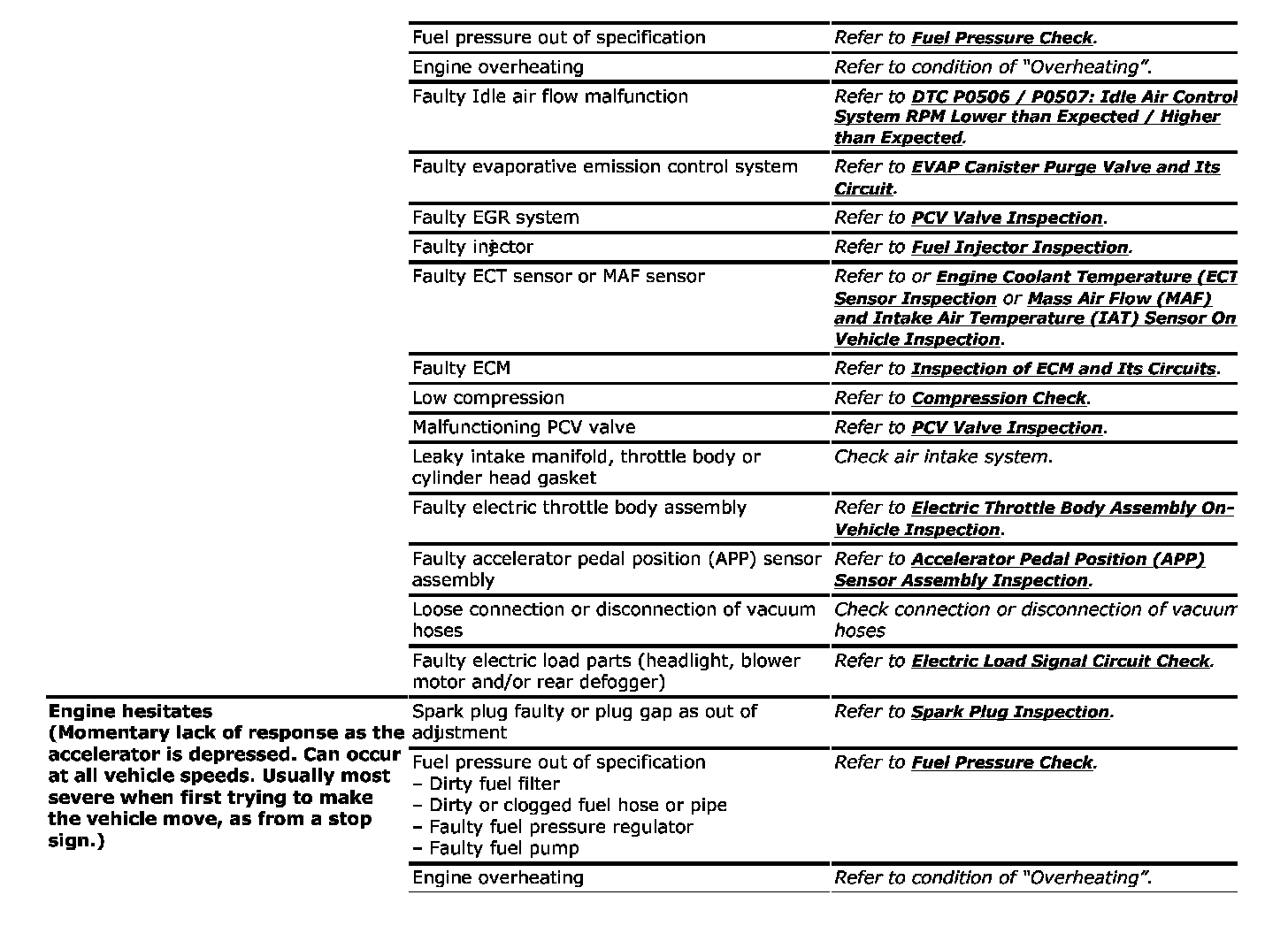

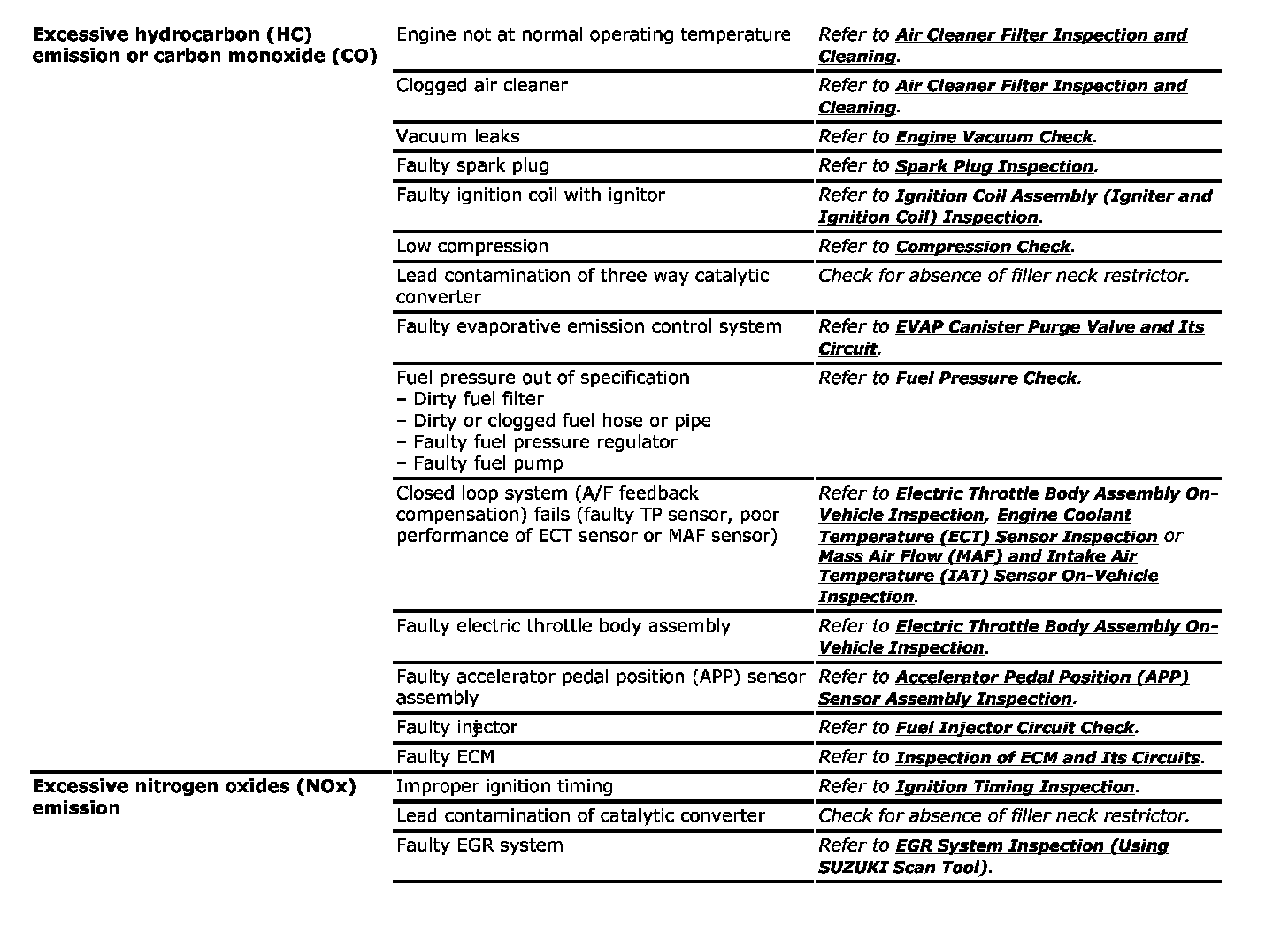

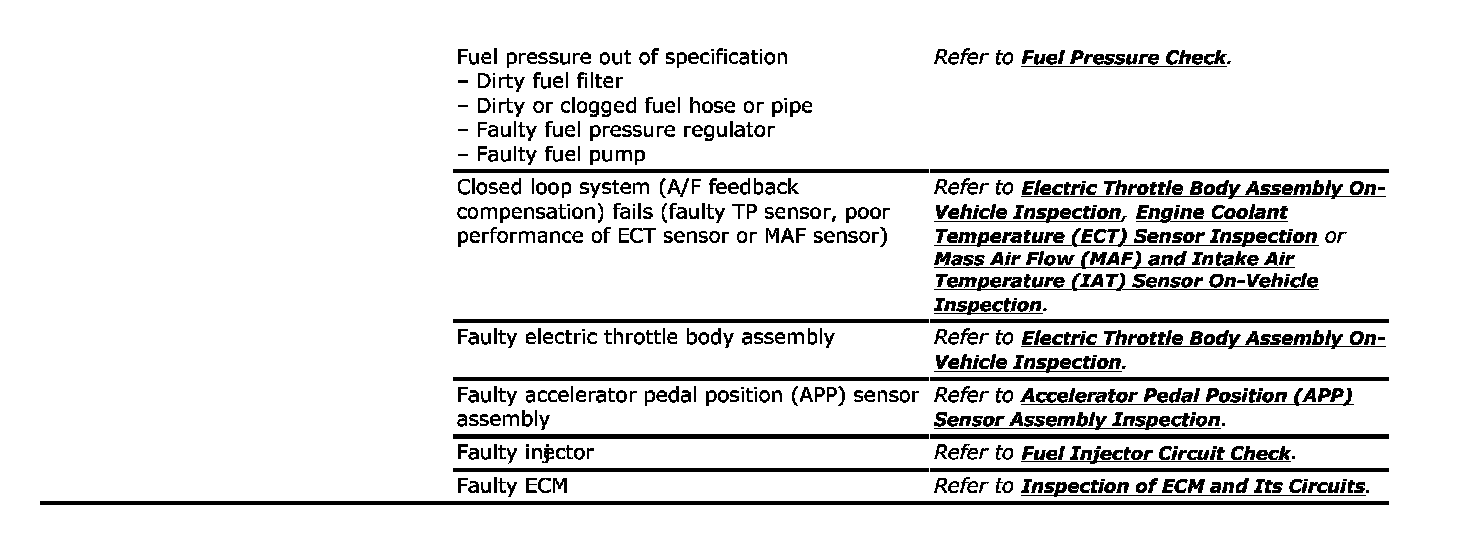

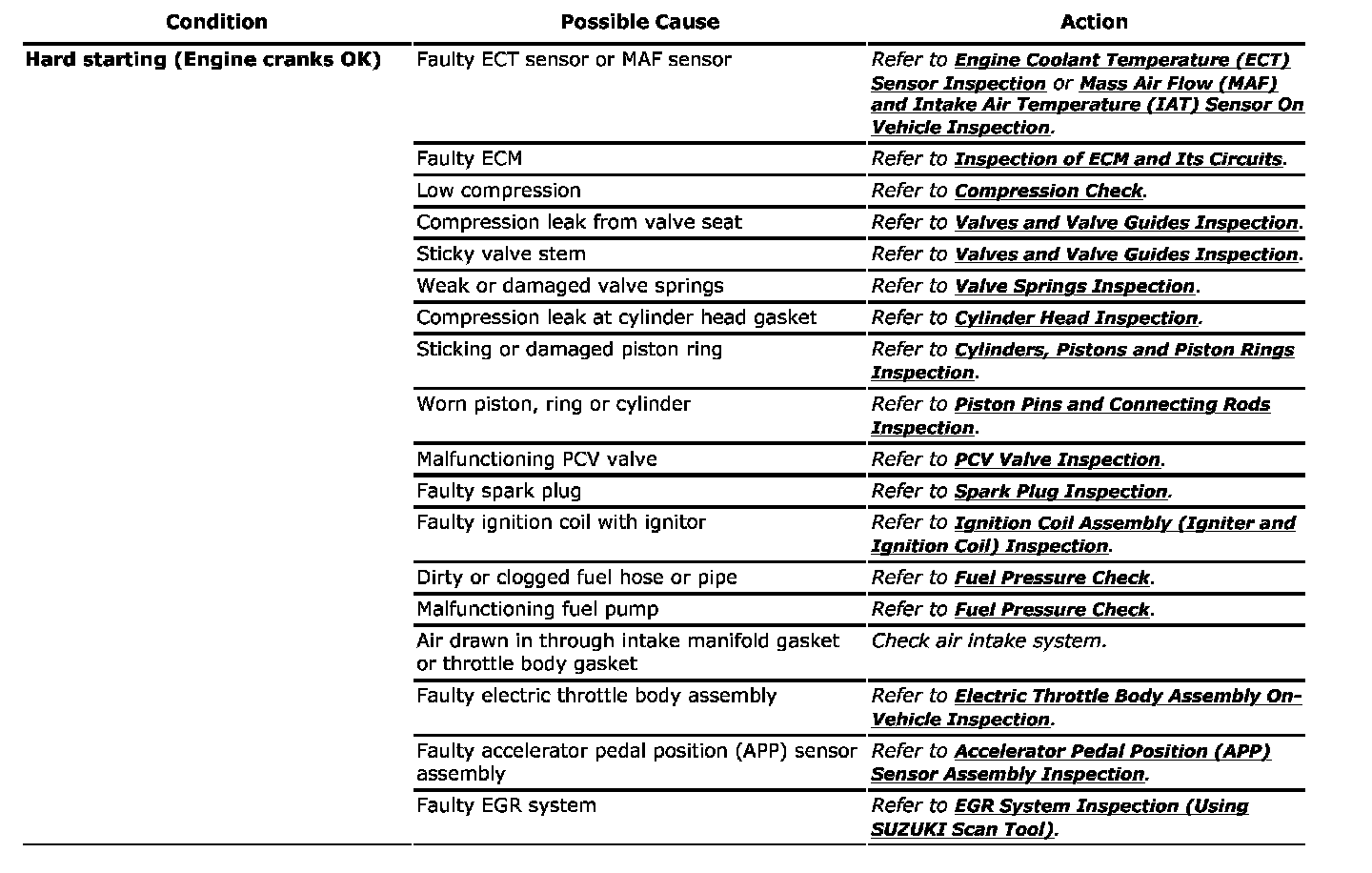

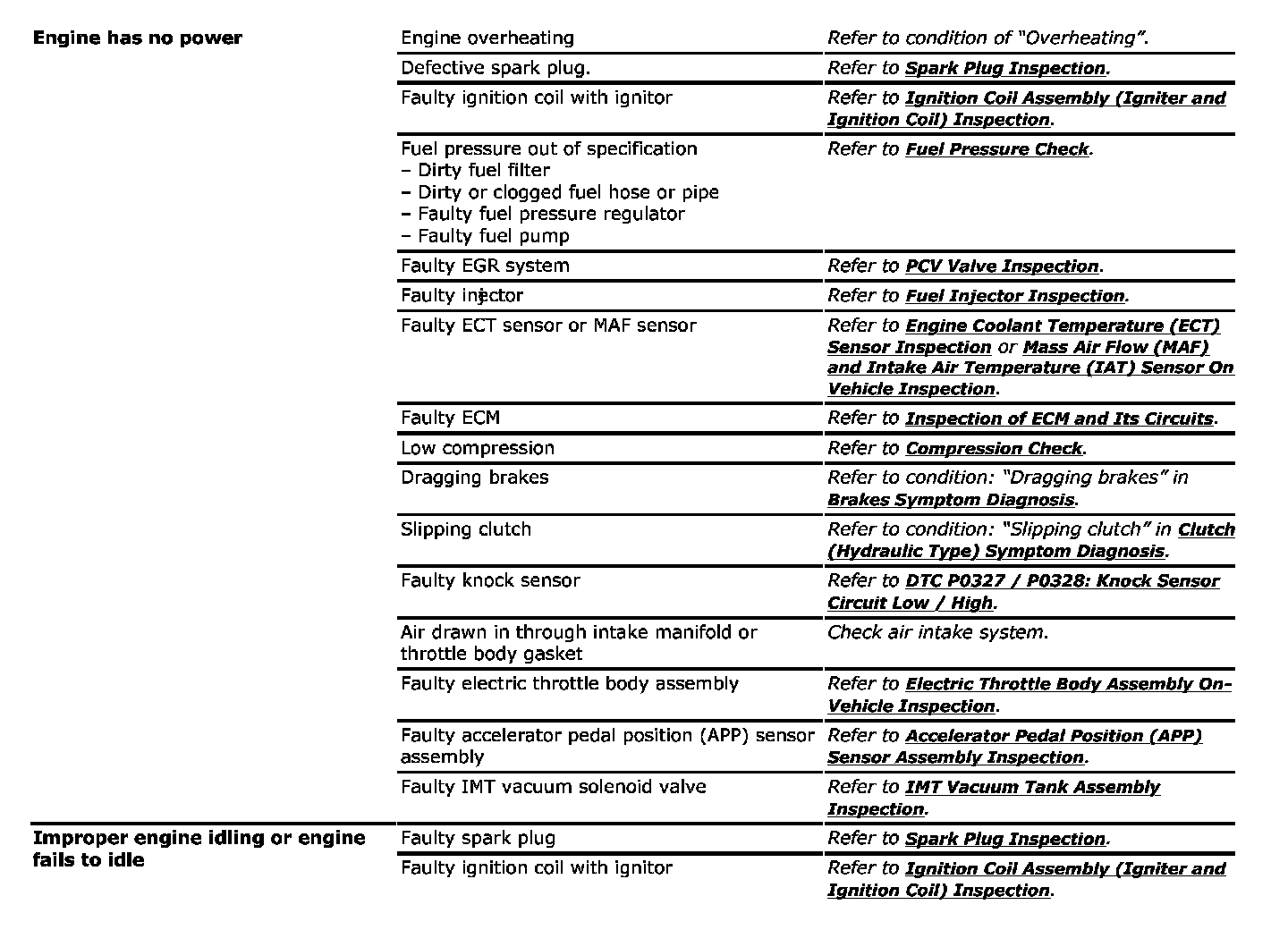

Perform troubleshooting referring to the table when ECM has detected no DTC and no abnormality has been found Visual Inspection in Engine Basic Check. Engine Basic Check
