EGR Valve: Service and Repair

EGR Valve Assembly Removal and Installation

REMOVAL
1. Remove intake collector from intake manifold.

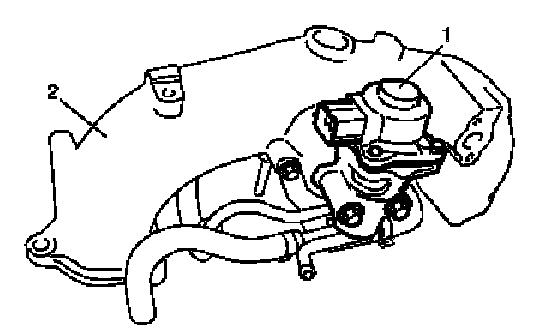

2. Remove EGR valve (1) and gasket from intake collector (2).

INSTALLATION

Reference: EGR Valve Assembly Inspection

Reverse removal procedure noting the following.
- Clean mating surface of valve and intake collector.
- Use new gaskets.
