ABS Components Location

ABS Components Location

NOTE:
As for the difference of RH steering vehicle and LH steering vehicle, the location of the combination meter, data link connector, stop lamp switch and the brake master cylinder assembly only changes.

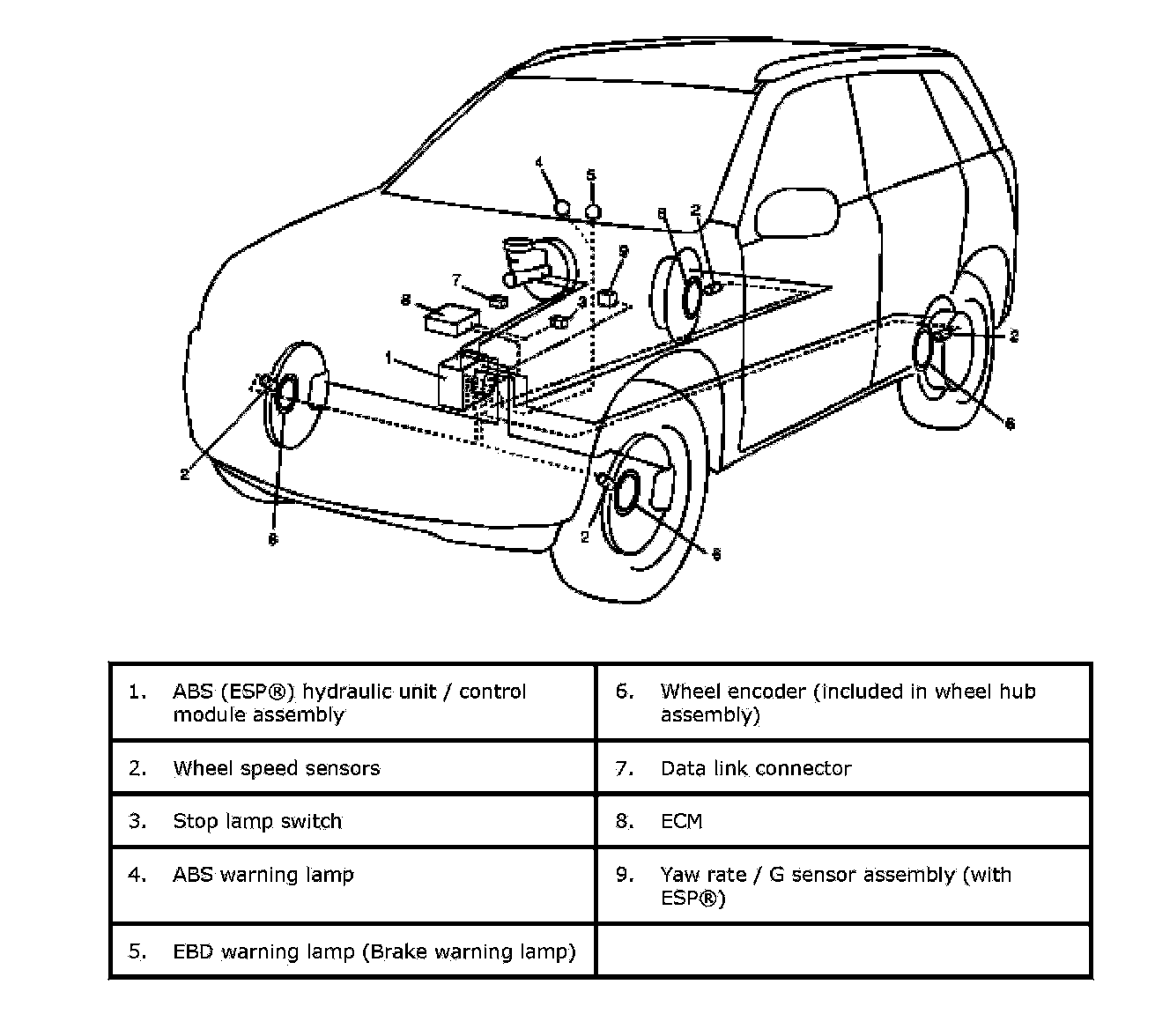

ABS Components Location:
