Air Bag Control Module
>>
Locations
>>
With Advanced Air Bag
With Advanced Air Bag

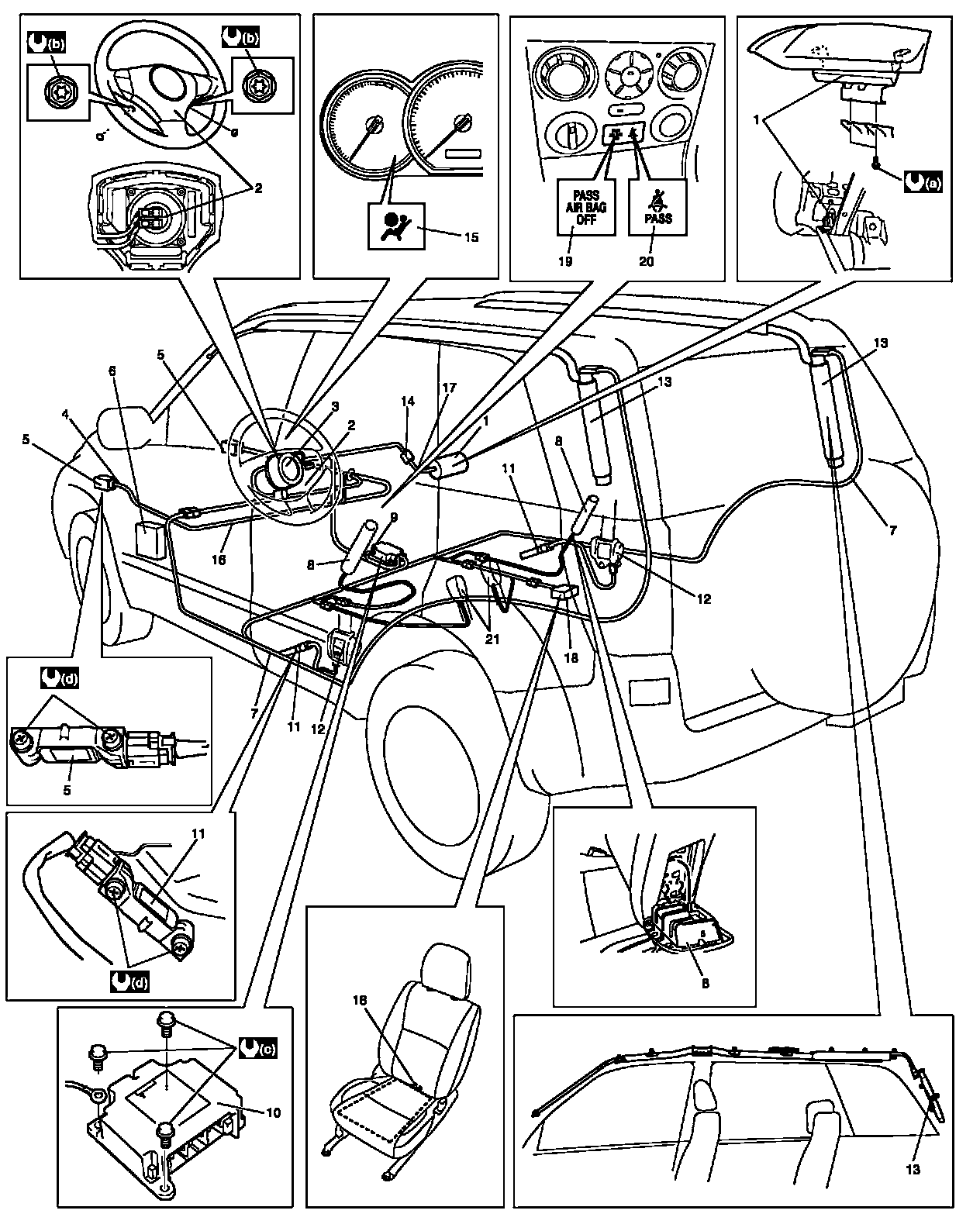

Air Bag System Components, Wiring and Connectors Location View:

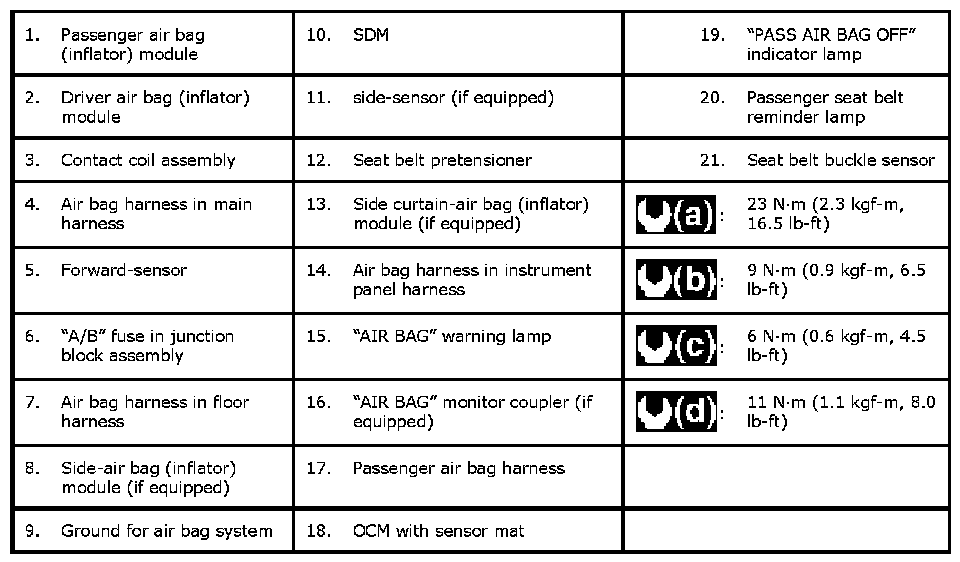

Air Bag System Components, Wiring and Connectors Location Table:
