System Specifications

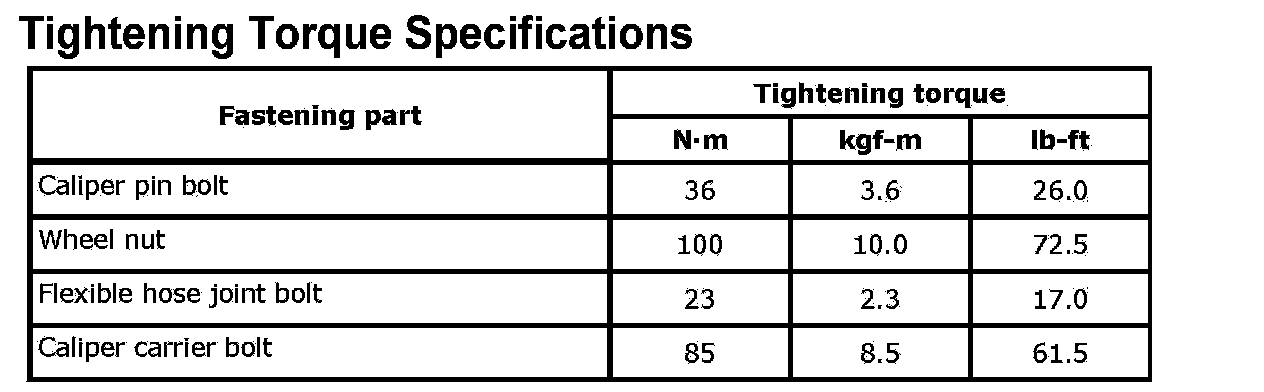

Tightening Torque Specifications

Tightening Torque Specifications:





NOTE:
The specified tightening torque is also described in the following. Front Disc Brake Components
