Control Module: Testing and Inspection

Learning Control Initialization

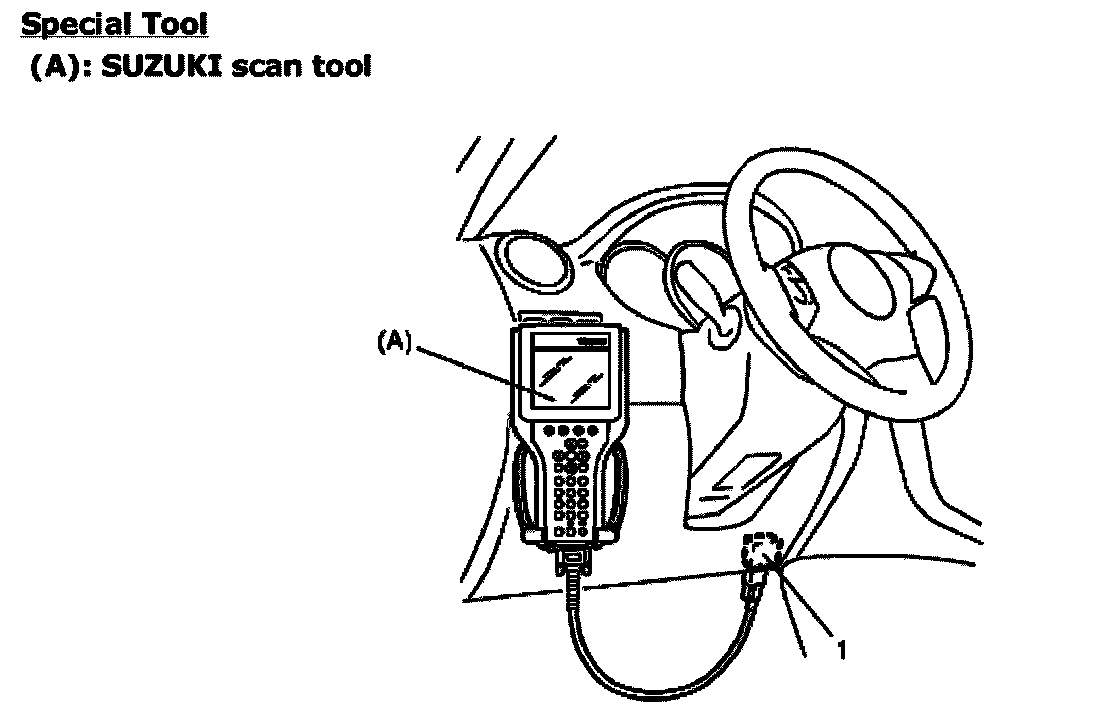

1. Connect scan tool to DLC (1) with ignition switch OFF.





2. Start engine and shift selector lever to P range.
3. Select Misc Test mode on scan tool.
4. Perform AT learned initialize on scan tool.
