Front Door Window Regulator: Service and Repair

Front Door Window Regulator Removal and Installation
Reference: Front Door Window Components

Removal
1. Remove door glass.
2. Disconnect power window motor lead wire at coupler.

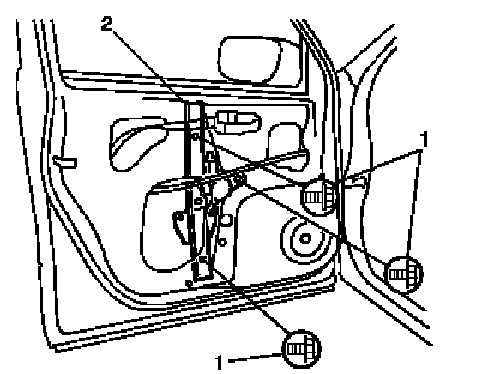

3. Remove regulator mounting screws (1), and then remove front door window regulator (2).

Installation

Reference: Front Door Window Regulator Inspection
Reverse removal procedure noting the following instruction.
- Apply grease to sliding portions of window regulator.

: Grease 99000-25010SUZUKI Super Grease A ()




- Tighten front door window regulator attaching screws.

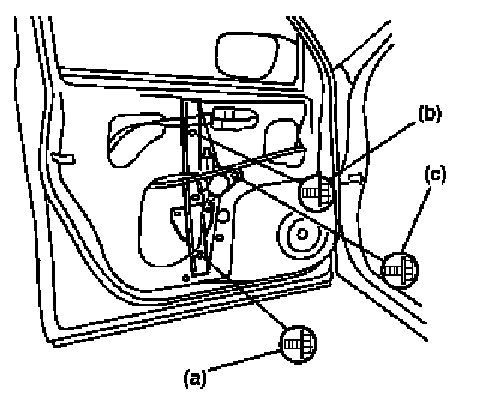

Front door window regulator screw tightening order (a) -> (b) ->(c)
