Drivetrain - Revised DTC C1230 Detection/Troubleshooting
GRAND VITARASection Title: Driveline/Axle
TSB No. TS08 08177
Division: Automotive
Category: Technical
SUBJECT:
SERVICE MANUAL UPDATE: DTC C1230 (TRANSFER ACTUATOR CIRCUIT MALFUNCTION) DETECTING CONDITION AND TROUBLESHOOTING
MODEL(S):
GRAND VITARA (JB627) 4WD
YEAR(S):
2006~2008
CONDITION:

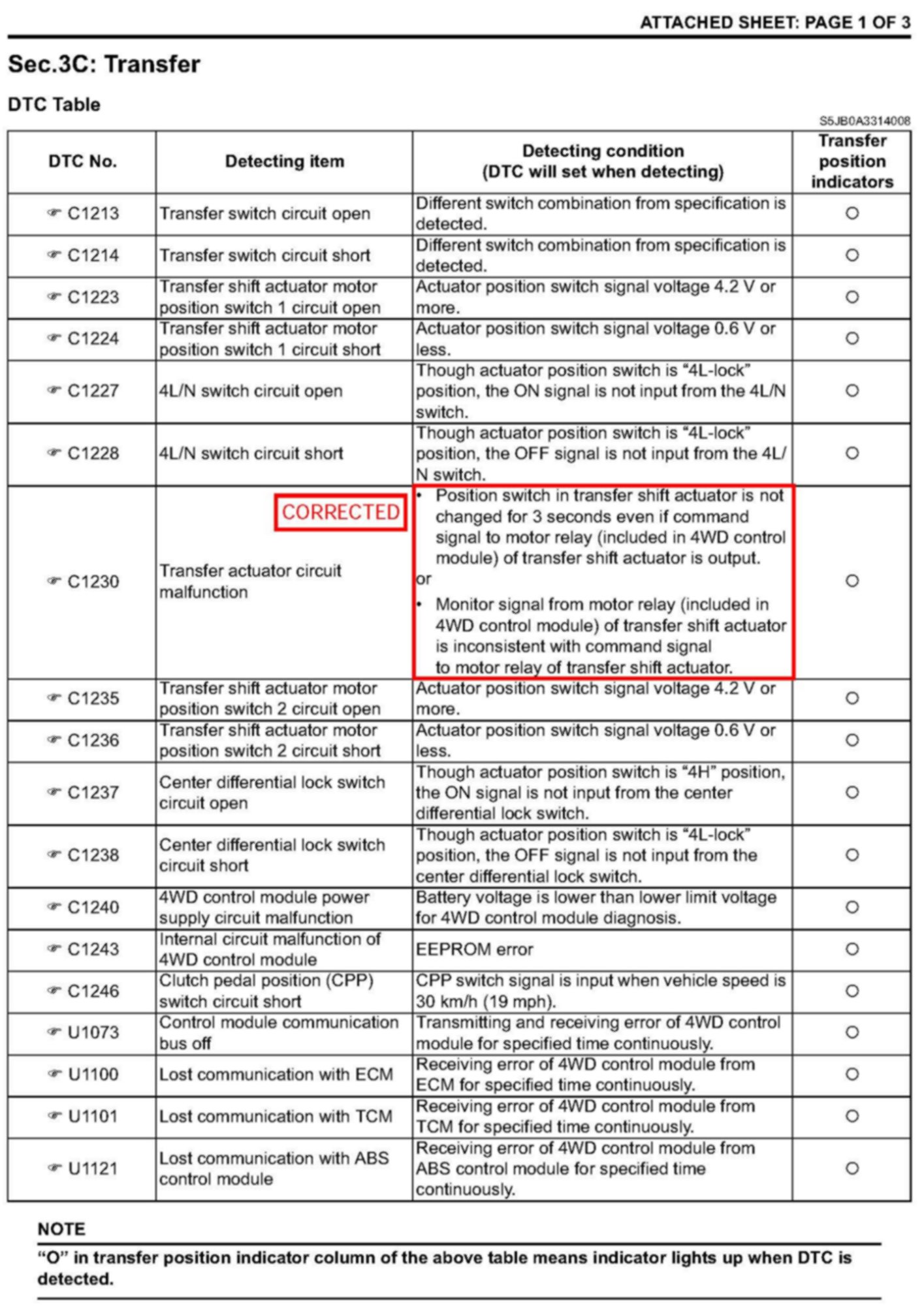

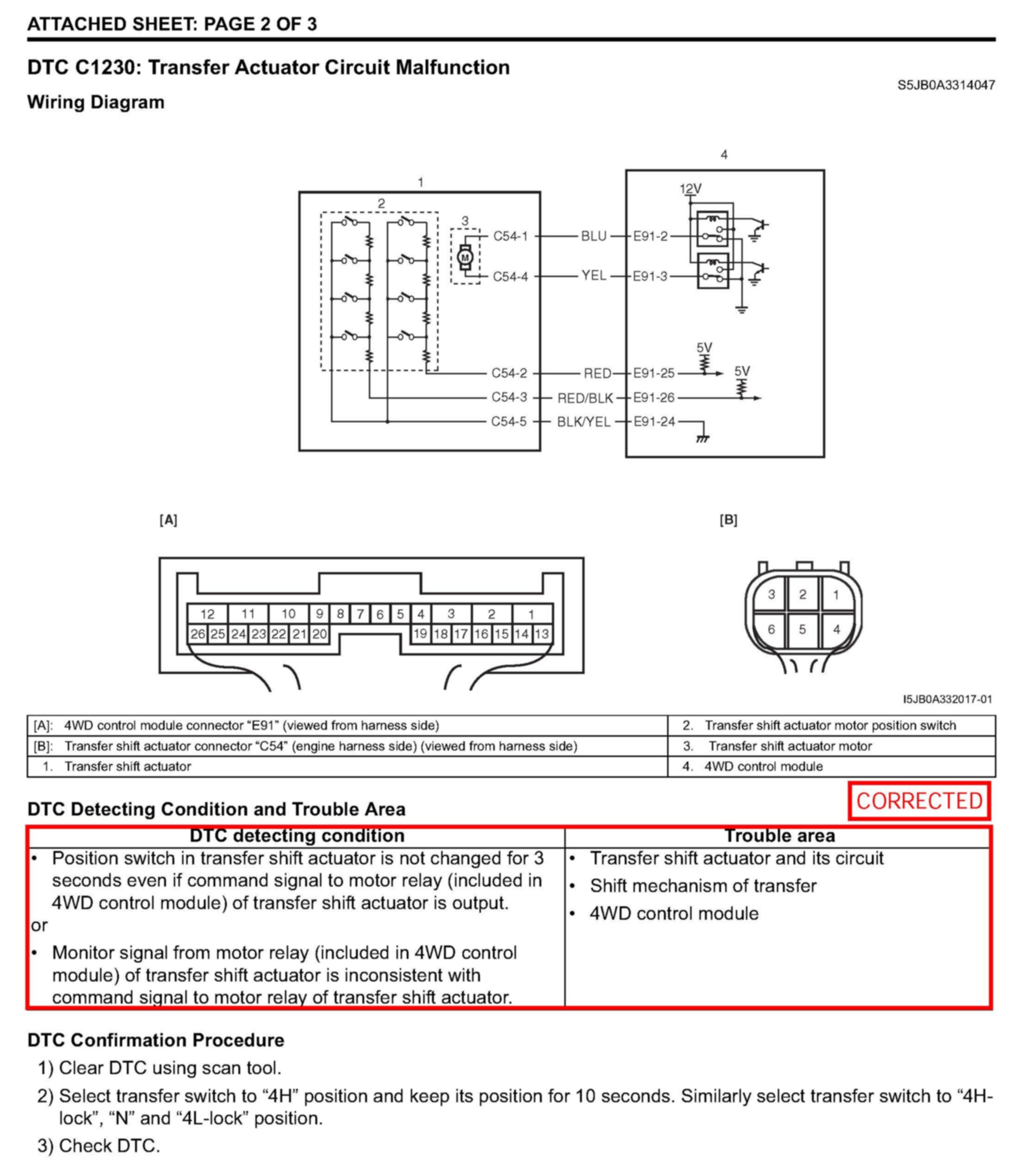

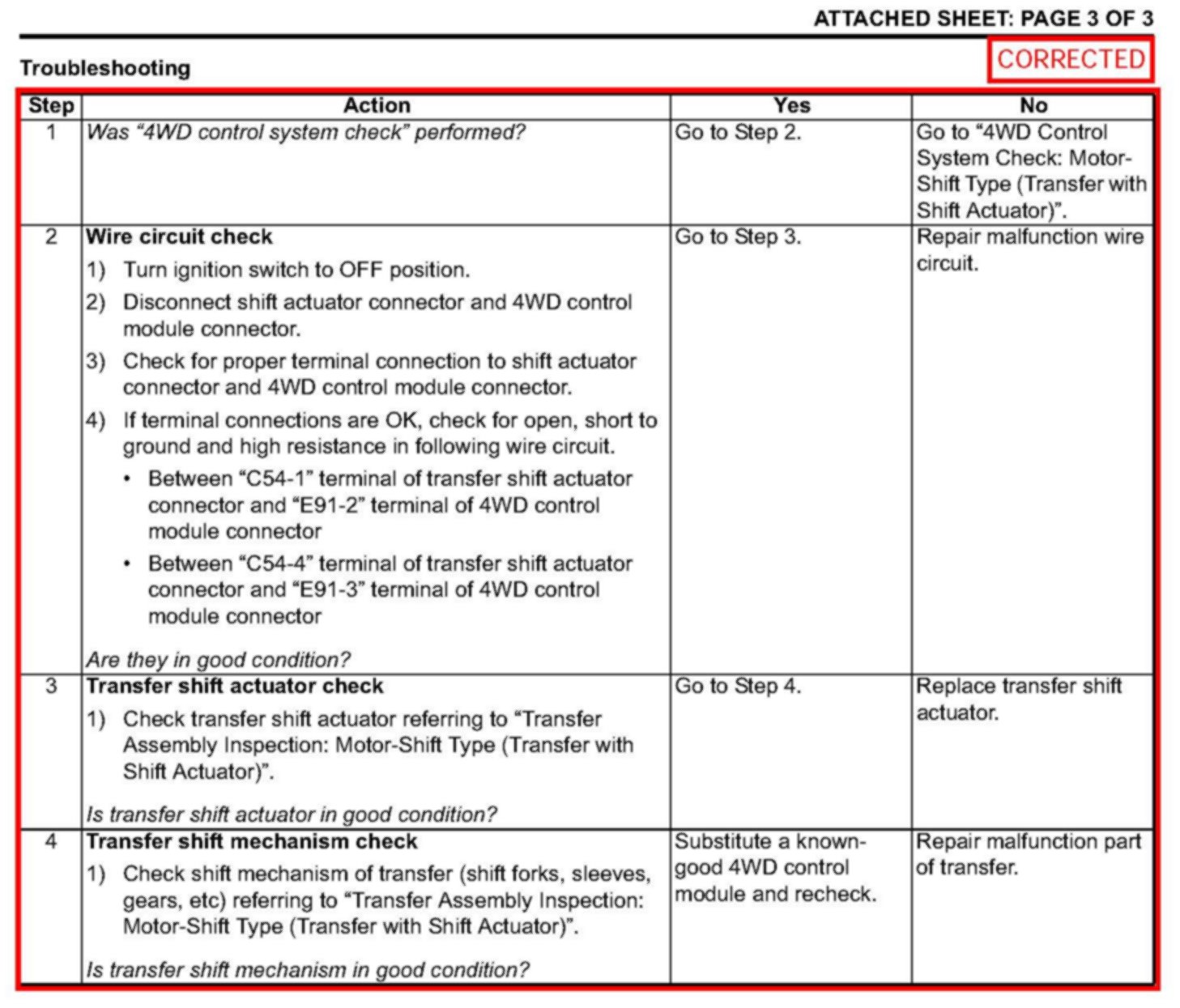

DTC detection and troubleshooting information has been updated for DTC C1230 (Transfer Actuator Circuit Malfunction).
CAUSE:
New information.
CORRECTION:
Please add the pages below to your service manual in the appropriate section and cross out the sections in your service manual that the corresponding sections below are replacing.

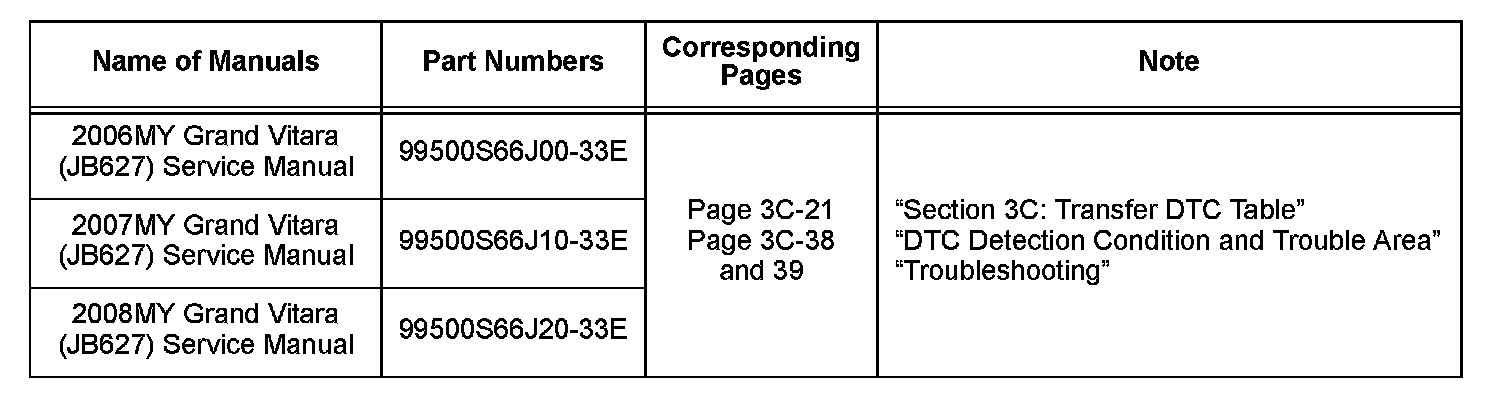

AFFECTED SERVICE MANUALS
NOTE:
These updates will be reflected in future printings of the service manuals. If the reprint date on the inside back cover of the manual is later than the issue date of this bulletin, the manual will have been updated.
