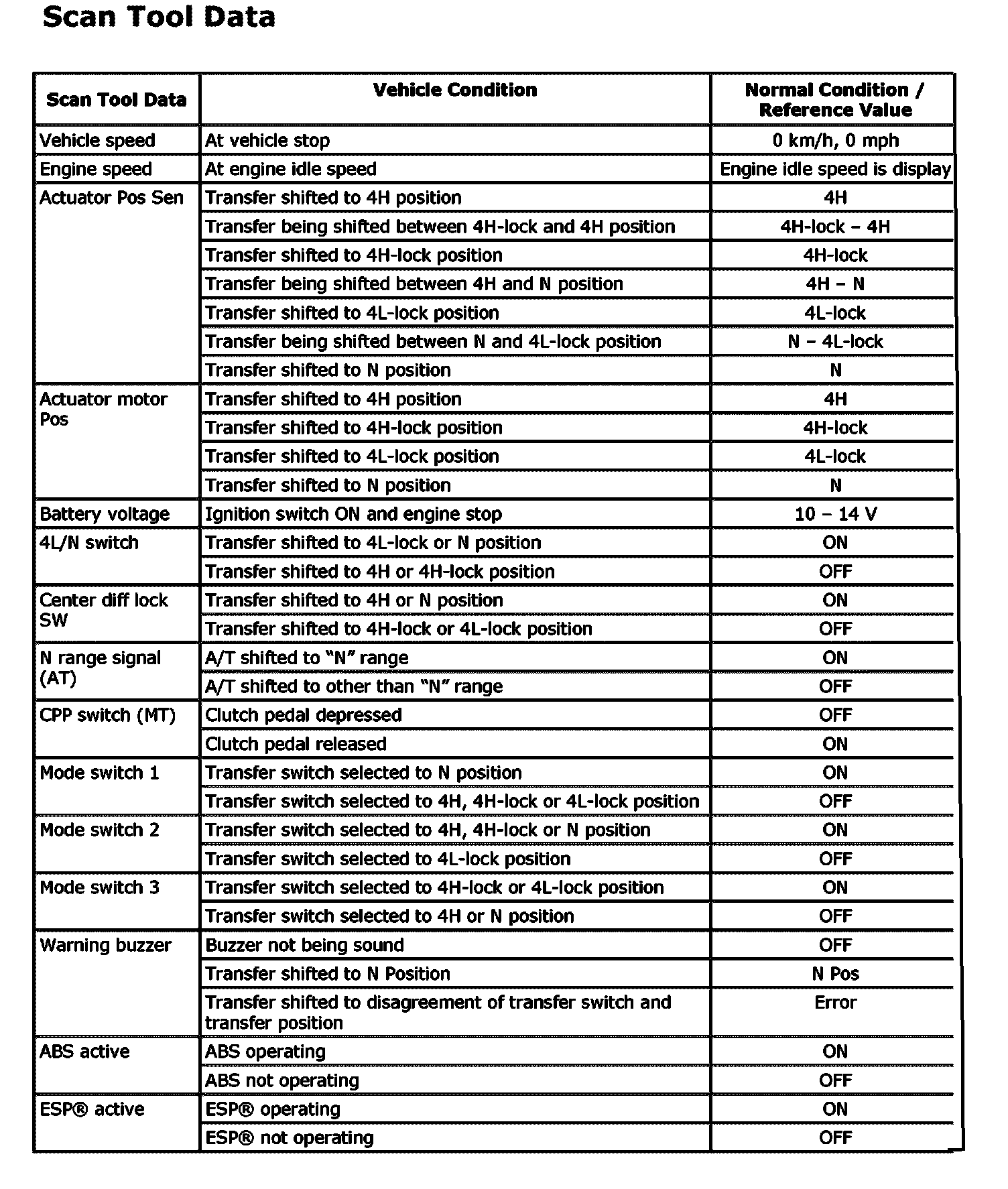

Scan Tool Data

Scan Tool Data
Reference: Scan Tool Data Definitions: Motor-Shift Type (Transfer with Shift Actuator)

Scan Tool Data:
