Oil Pump Assembly Disassembly and Assembly
Oil Pump Assembly Disassembly and Assembly 1.

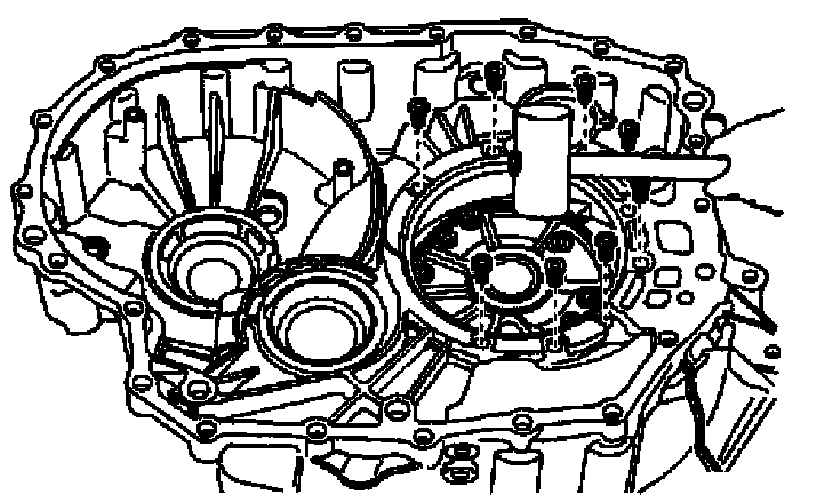

Remove the
oil pump housing bolts.
2.
Using the plastic hammer. Take out the
oil pump housing.
Installation Notice
Tighten:
Tighten the
oil pump housing bolts
10 Nm (89 inch lbs.).
3.
Remove the stator shaft bolts.
4.
Dismantle the oil pump gear, ring gear.
5.
Installation should follow the removal procedure in the reverse order.
