Blower Motor Relay: Service and Repair
Blower Motor Relay Removal and InstallationRemoval
1. Disconnect negative (-) cable at battery.
2. Disable air bag system.
Refer to Disabling Air Bag System.
3. Open glove box, then remove screw.
4. Remove glove box.

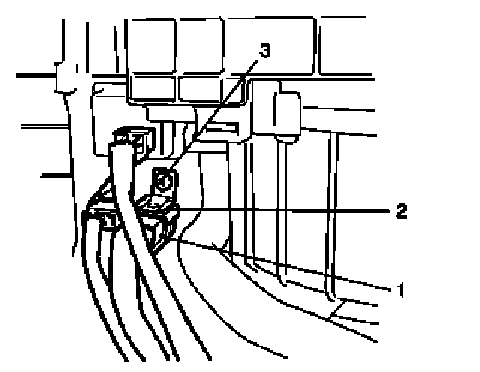

5. Disconnect relay coupler (1).
6. Remove blower motor relay (2) by loosening its fastening screw (3).
Installation
Reference: Blower Motor Relay Inspection
1. Reverse removal procedure for installation.
2. Enable air bag system.
Refer to Enabling Air Bag System.
