Blower Motor Controller
Blower Motor Controller Removal and InstallationRemoval
1. Disconnect negative (-) cable (2) at battery (1).
2. Disable air bag system. Refer to Disabling Air Bag System.
3. Open glove box, then remove screw and damper located on the right side of the glove box.
4. Remove glove box.
5. Remove ECM (PCM) with bracket from blower motor unit.
6. Disconnect blower motor controller coupler.

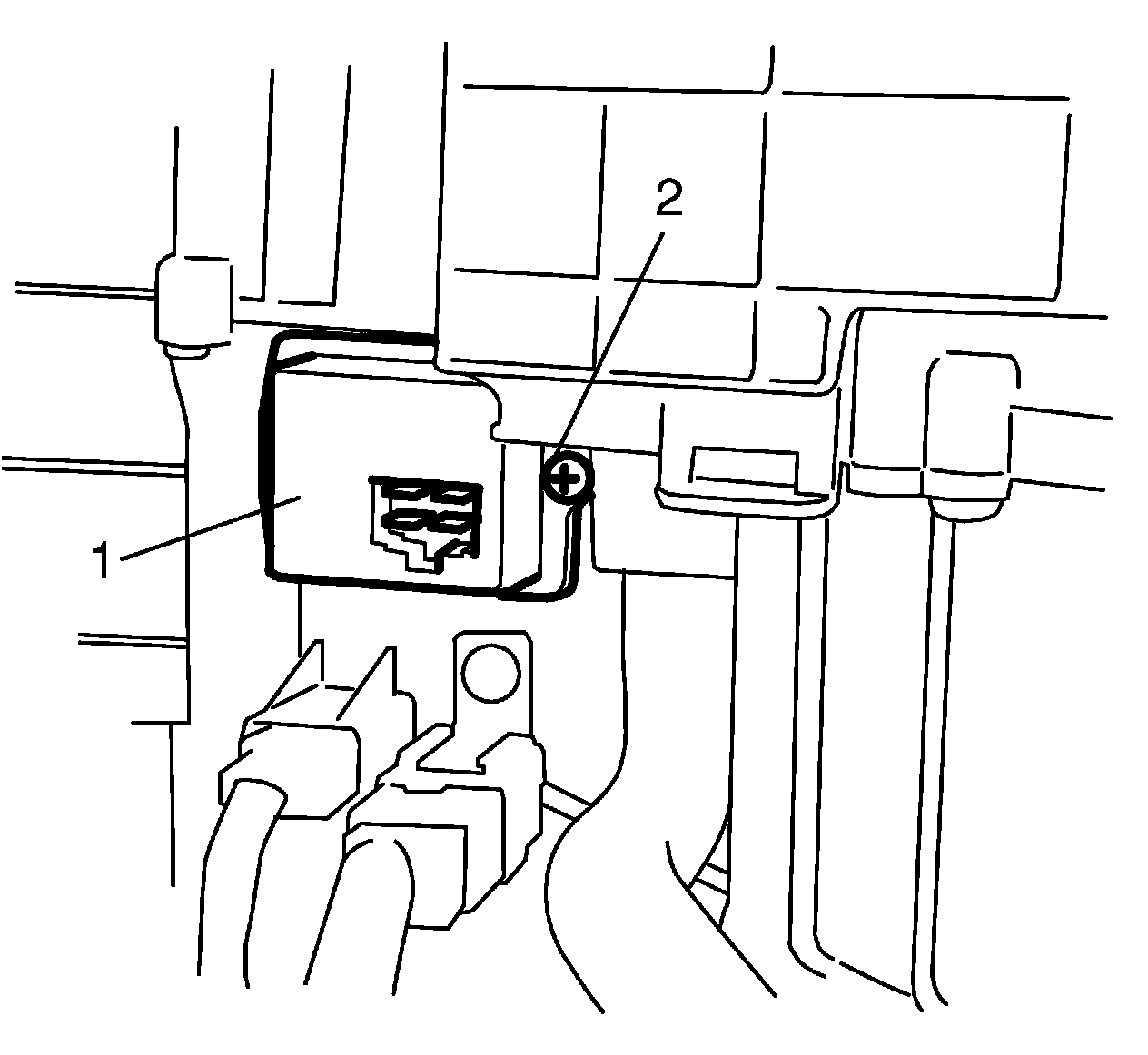

7. Remove blower motor controller (1) by loosening its fastening screw (2).
Installation
1. Install blower motor controller with screws.
2. Enable air bag system. Refer to Enabling Air Bag System.
