Manual A/C

Rear Blower Motor Assembly Removal and Installation
Reference: Rear A/C Unit Components:Manual Type

Removal
1. Remove rear A/C unit.
2. Remove rear liquid pipe and suction pipe.

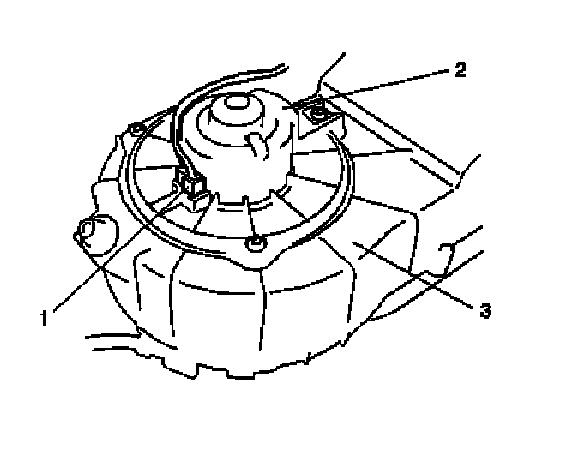

3. Disconnect rear blower motor coupler (1).




4. Remove rear blower motor assembly (2) from rear A/C unit (3).

Installation
Reference: Rear Blower Motor Assembly Inspection:Manual Type

Reverse removal procedure for installation.
