Operation CHARM
: Car repair manuals for everyone.
Home
>>
Suzuki
>>
2006
>>
XL-7 2WD V6-2.7L
>>
Repair and Diagnosis
>>
Locations
>>
Connector Locations
>>
K Connectors
K Connectors

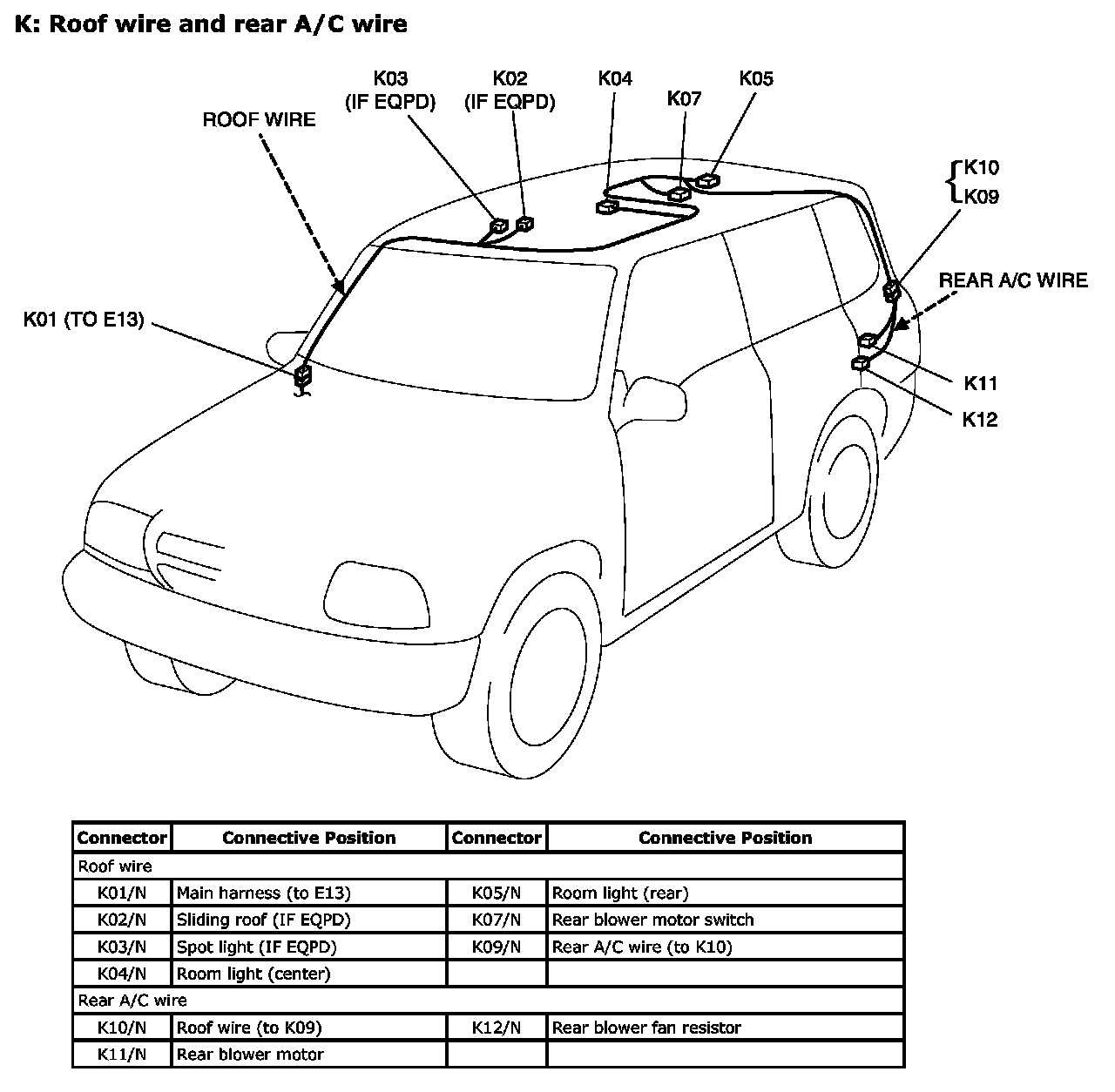

K: Roof wire and rear A/C wire:
