Electronic Shift Control System

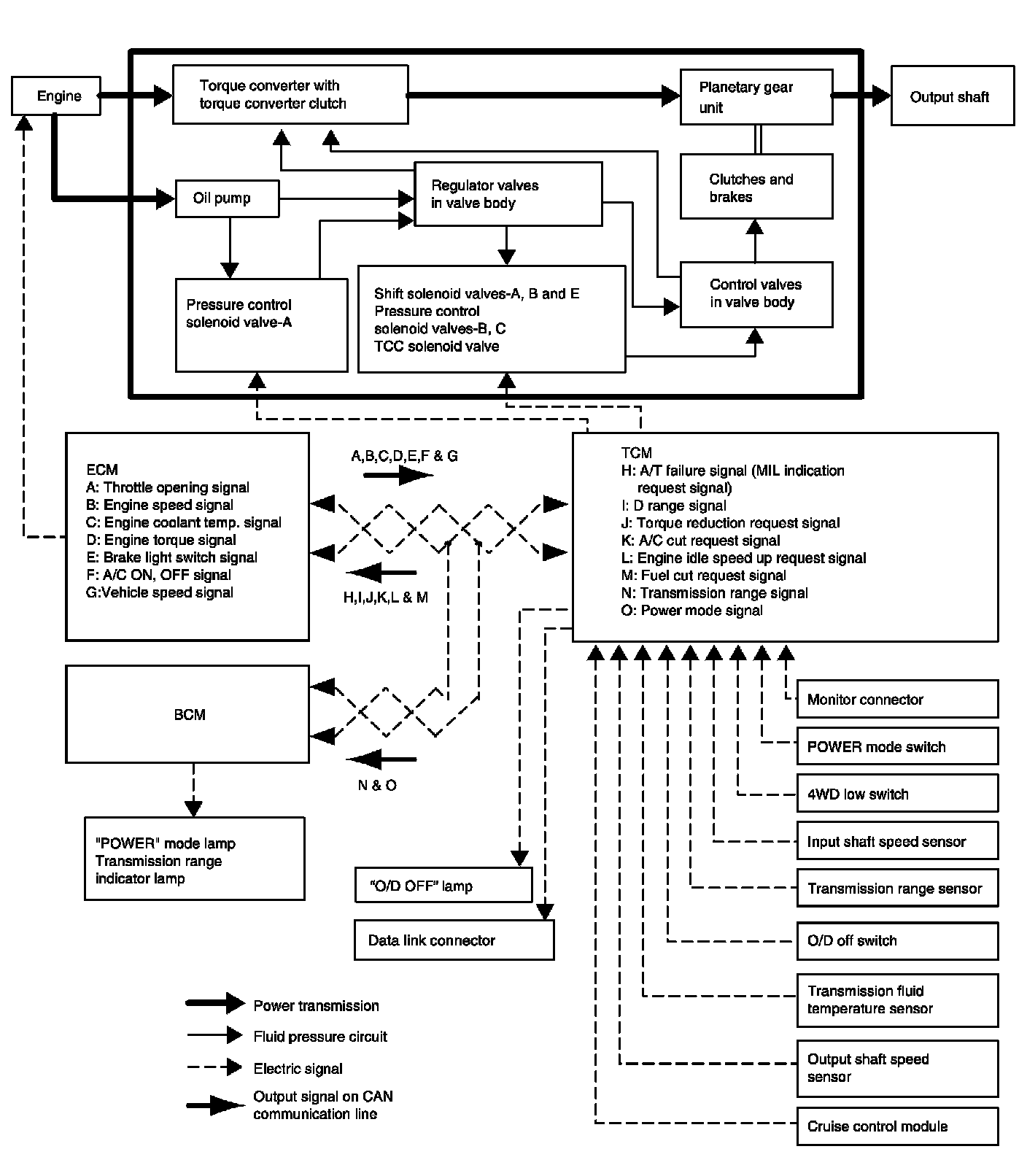

Electronic Shift Control System Description

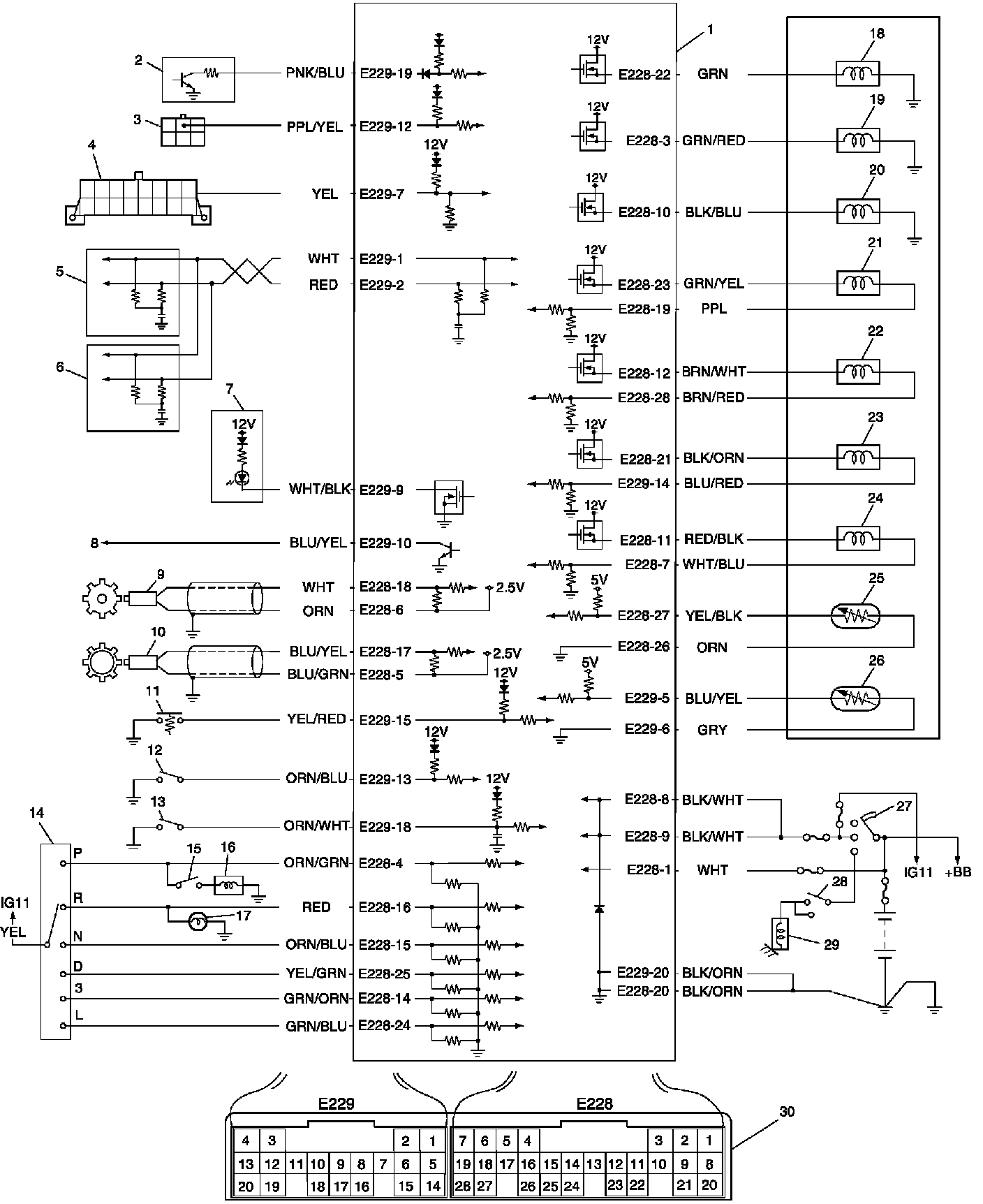

Electronic Shift Control System Wiring Diagram

Electronic Shift Control System Wiring Diagram:








Operation of Shift Solenoids and TCC Solenoid

Operation of Shift Solenoids and TCC Solenoid:
