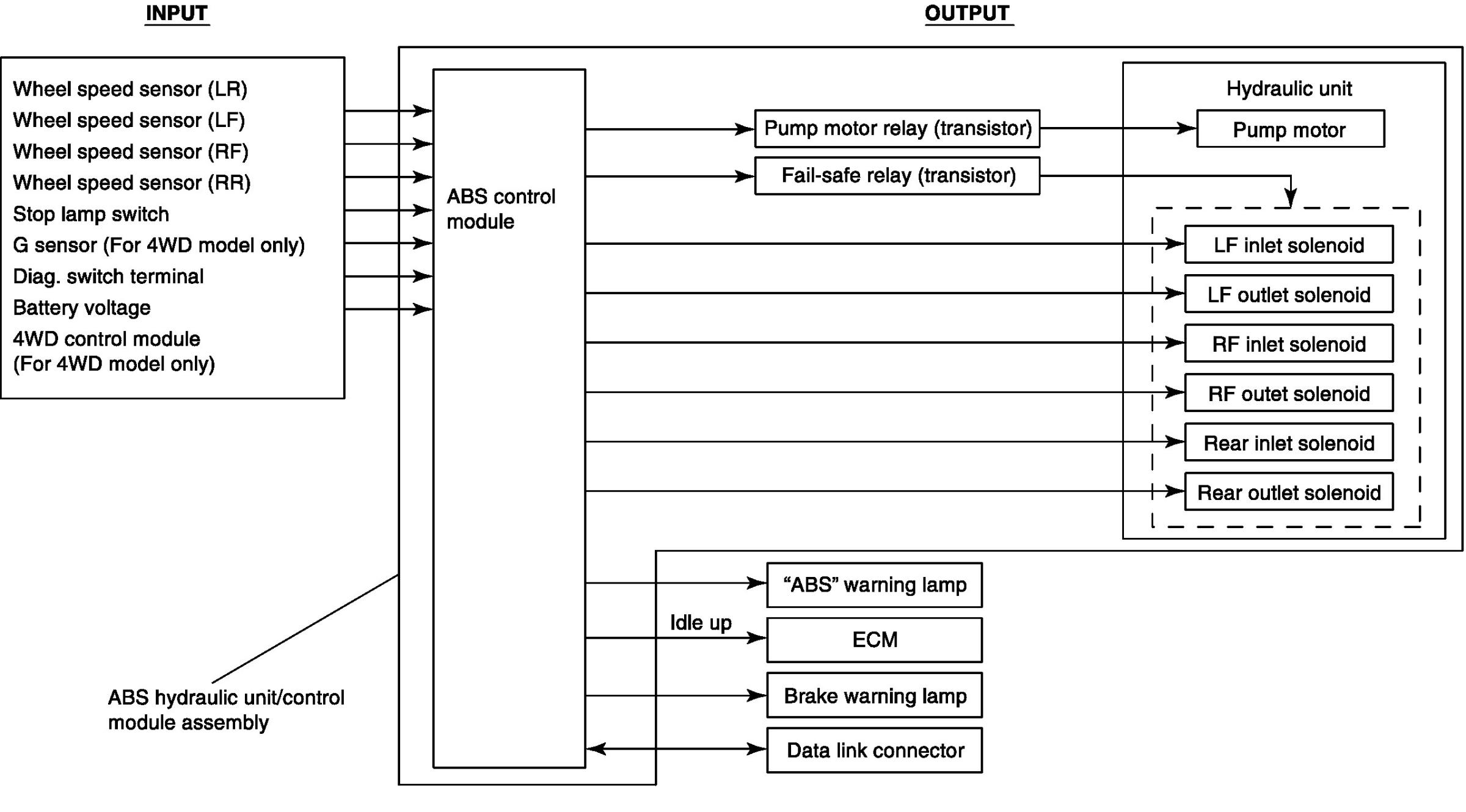

ABS Control Module Input / Output Signal Description

ABS Control Module Input / Output Signal Description:
