Scan Tool Data

Scan Tool Data
The parameter data below are values measured with the scan tool when the normally operating vehicle is under the following conditions. When taking measurements for comparison by using the scan tool, be sure to check that the vehicle is under the following conditions.
^ Apply parking brake and block wheels.
^ Turn ignition switch to ON position.
^ Turn OFF air conditioner (if equipped).
^ Apply no lead to power steering (if equipped). (Don't turn it)
^ Turn OFF all electric loads (except ignition).
^ NO DTC.
^ ABS is not operated. (Normal braking operation)

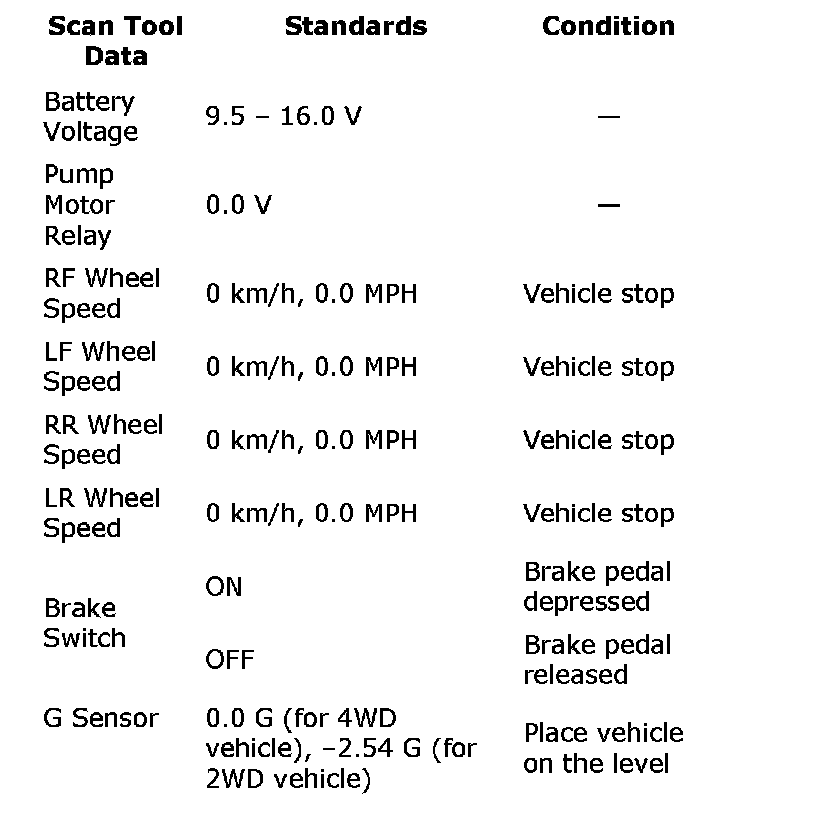

Scan Tool Data:
