Electronic Stability Program (ESP)

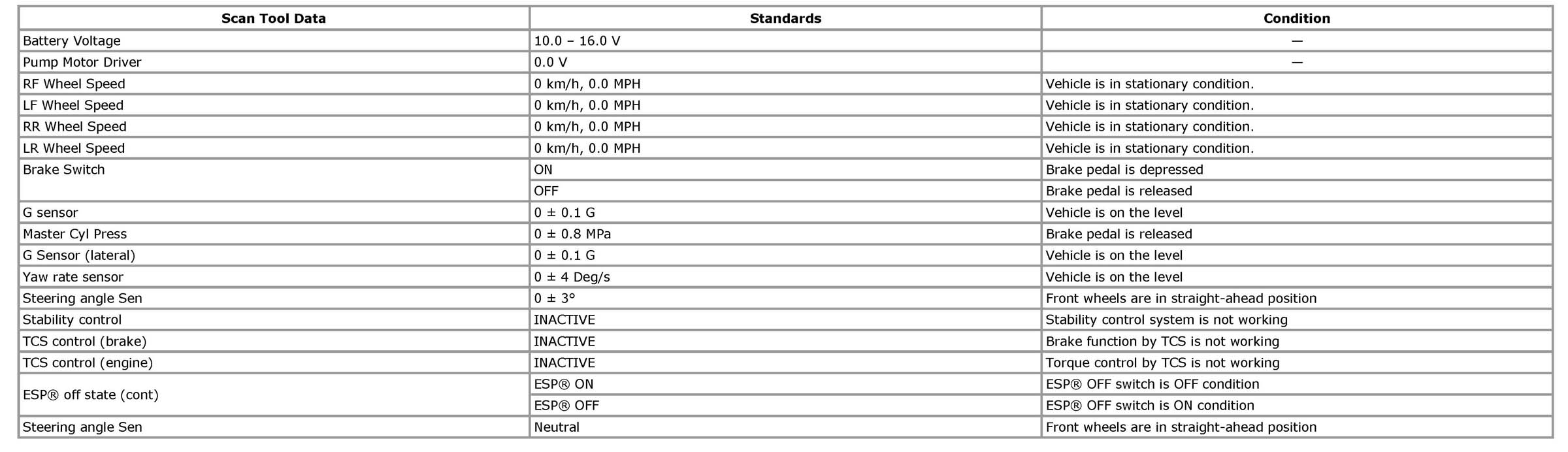

Scan Tool Data

The parameter data below are values measured with the scan tool when the normally operating vehicle is under the following conditions. When taking measurements for comparison by using the scan tool, be sure to check that the vehicle is under the following conditions.
^ Apply parking brake and block wheels.
^ Ignition switch ON.
^ Turn OFF air conditioning (if equipped).
^ Set the wheel in straight-ahead position and hands off steering wheel.
^ Turn OFF all electric loads (except ignition).
^ Check that there is no DTC.

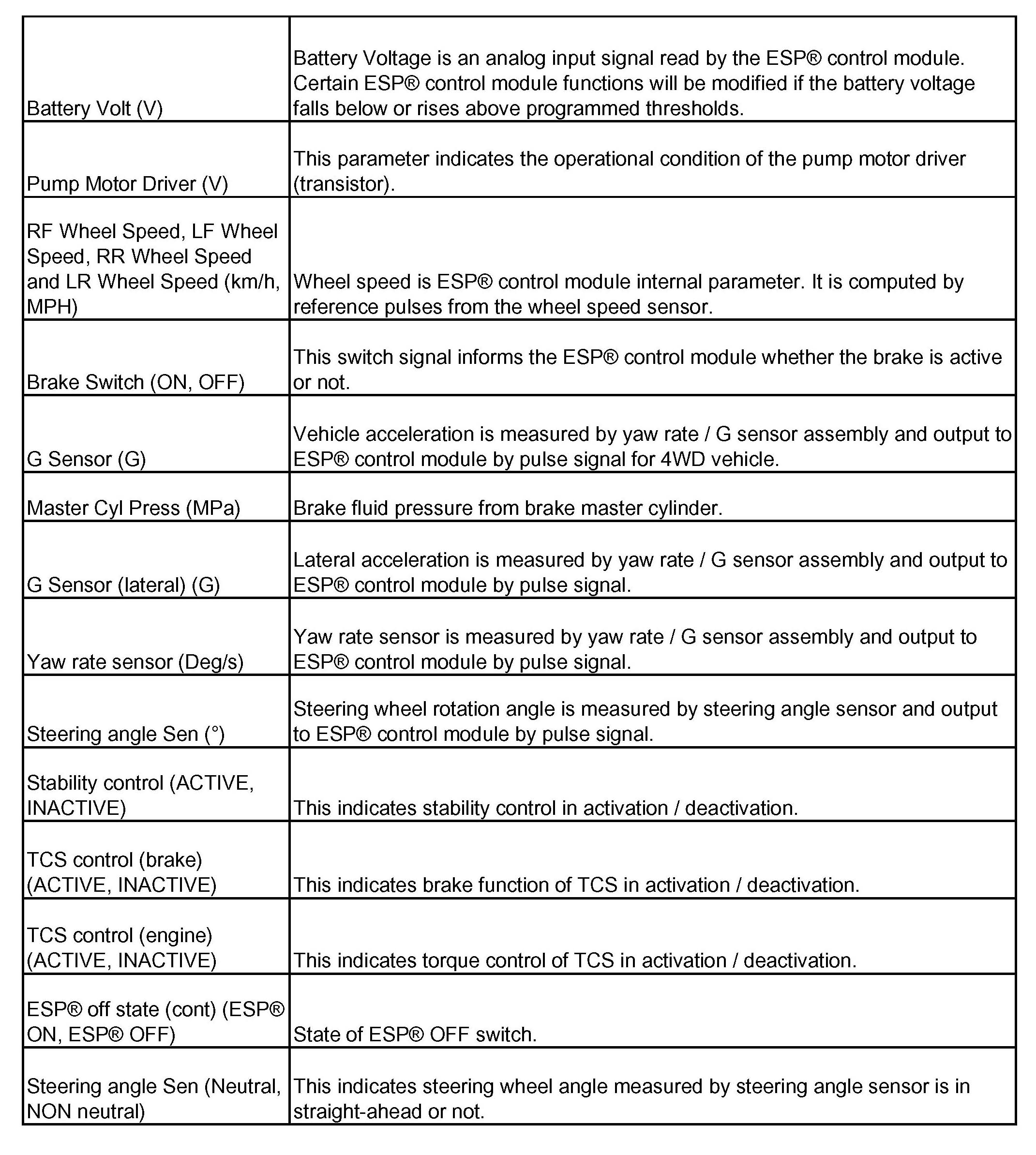

Scan Tool Data Definition
