Evaporator Temperature Sensor / Switch: Service and Repair

A/C Evaporator Temperature Sensor Removal and Installation

Reference: HVAC Unit Components

Removal

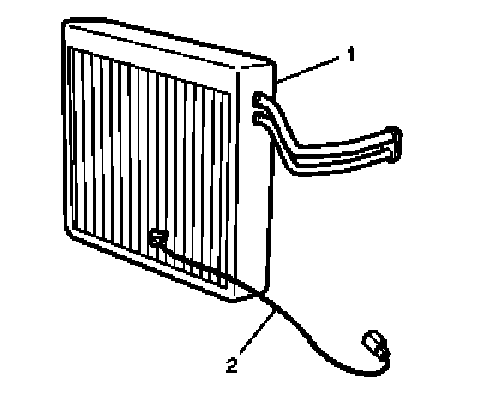

1. Remove A/C evaporator (1).




2. Remove A/C evaporator temperature sensor (2) from evaporator.

Installation

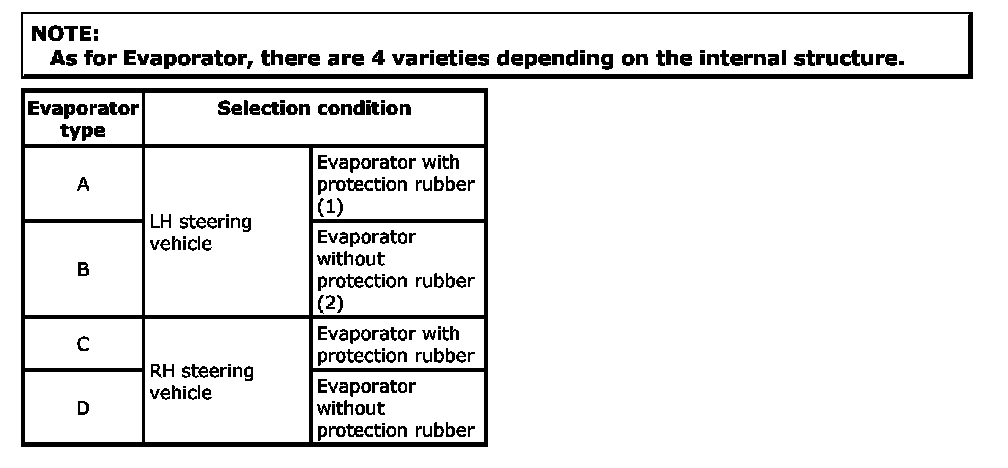

1. Identify evaporator by the above tables.

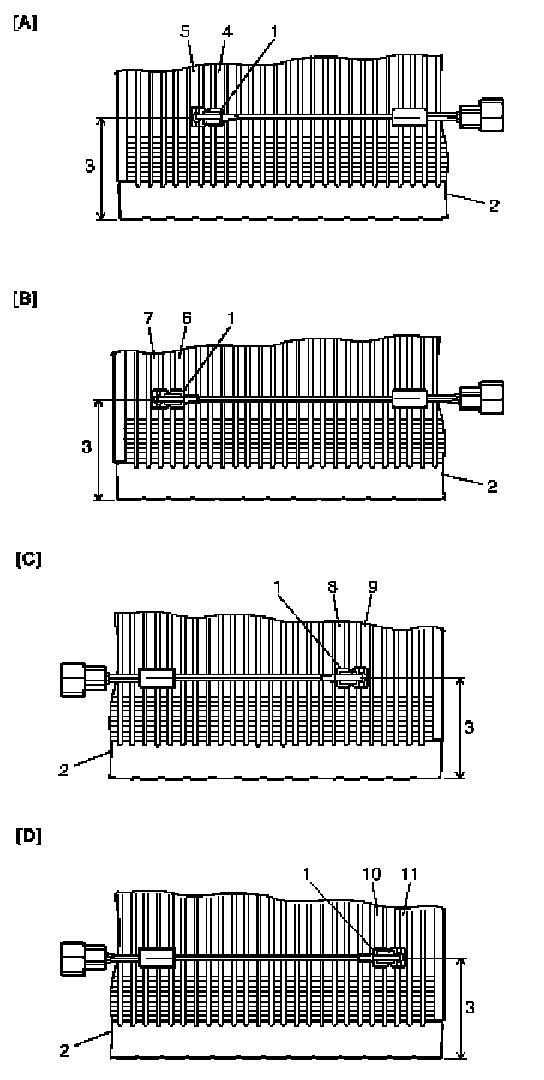

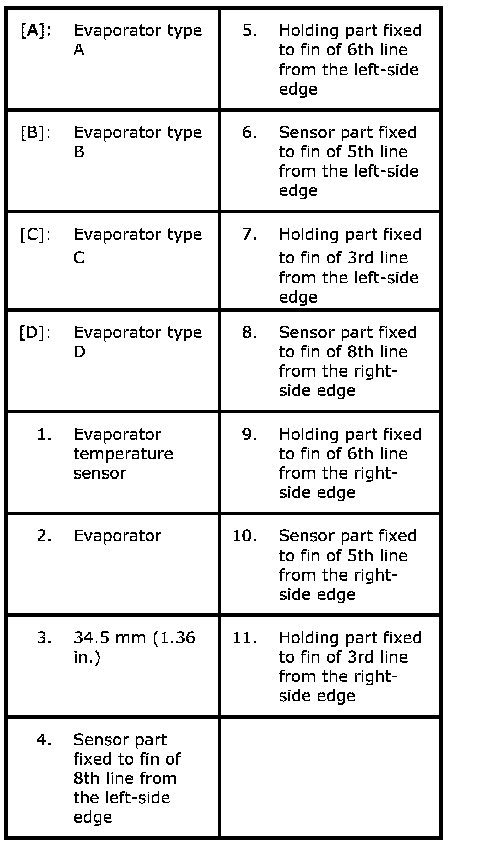

2. Install evaporator temperature sensor onto evaporator in a correct position as shown in figure.

CAUTION: Mis-position causes insufficiency cooling and damaged of A/C system.
