Disassembled Inspection
Generator InspectionReference: Generator Dismounting and Remounting
Reference: Generator Disassembly and Assembly

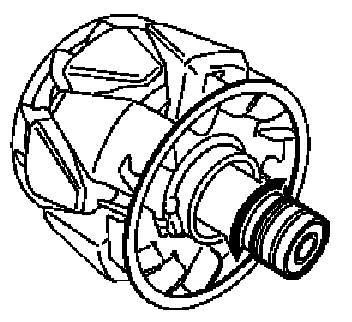

Rotor

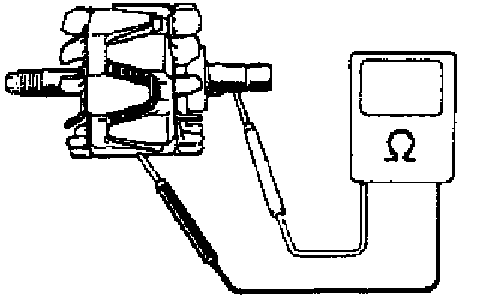

- Using ohmmeter, check for continuity between slip rings of rotor. If there is no continuity, replace rotor.
Standard resistance between clip rings of rotor
2.0 - 2.3 Ohms at 20°C (68°F)
- Using ohmmeter, check that there is no continuity between slip ring and rotor. If there is continuity, replace rotor.
Stator

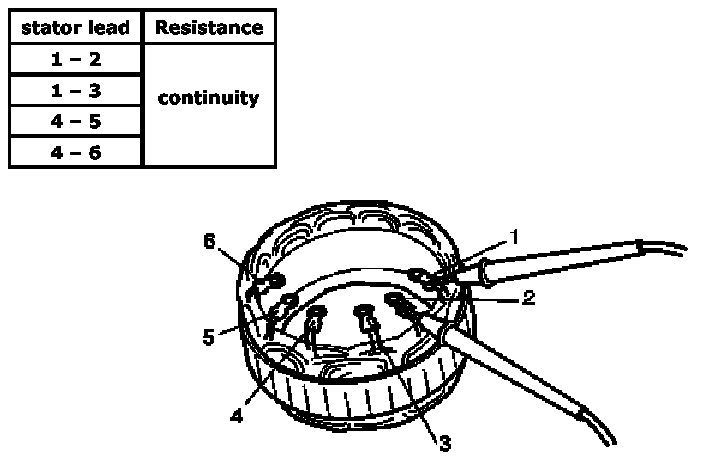

- Check resistance between the following leads of stator. if there is no continuity, replace stator.

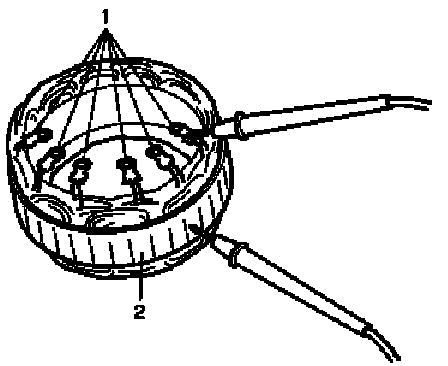

- Using ohmmeter, check that there is no continuity between coil leads (1) and stator core (2). If there is continuity, replace stator.
Brush and Brush Holder

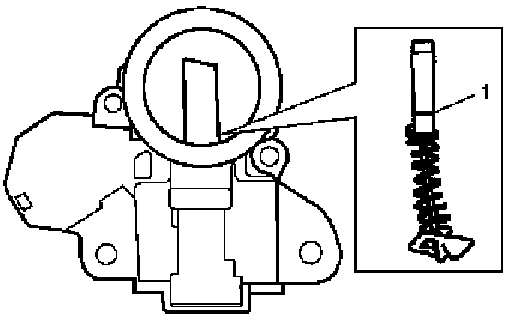

Check each brush for wear by measuring its length as shown. Replace the brush if the brush is found worn down to service limit line (1).
Rectifier
Positive rectifier

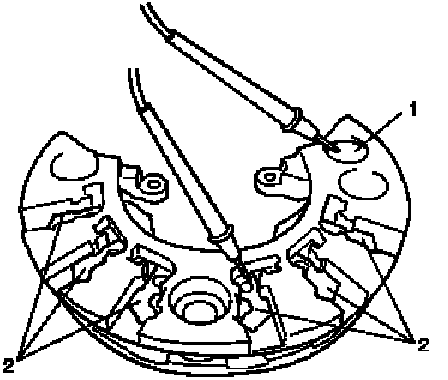

1. Using an ohmmeter, connect one tester probe to the "B" terminal (1) and the other to each rectifier terminal (2).
2. Reverse the polarity of the tester probes and repeat Step 1).
3. Check that one shows continuity and the other shows no continuity. If there is continuity, replace the rectifier.
Negative rectifier

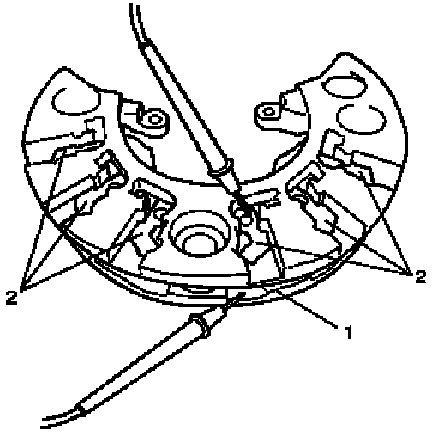

1. Using an ohmmeter, connect one tester probe to negative terminal (1) and the other to each rectifier terminal (2).
2. Reverse the polarity of the tester probes and repeat Step 1).
3. Check that one shows continuity and the other shows no continuity. If there is continuity, replace the rectifier.
Bearing
- Check that drive and bearing is not rough or worn.

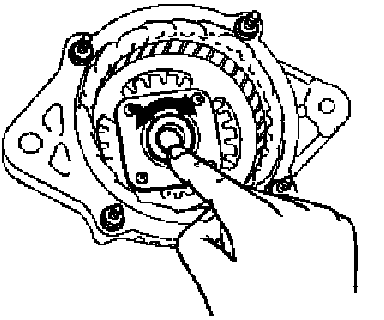

- Check that end housing bearing is not rough or worn.
