Electronic Shift Control Input / Output Table

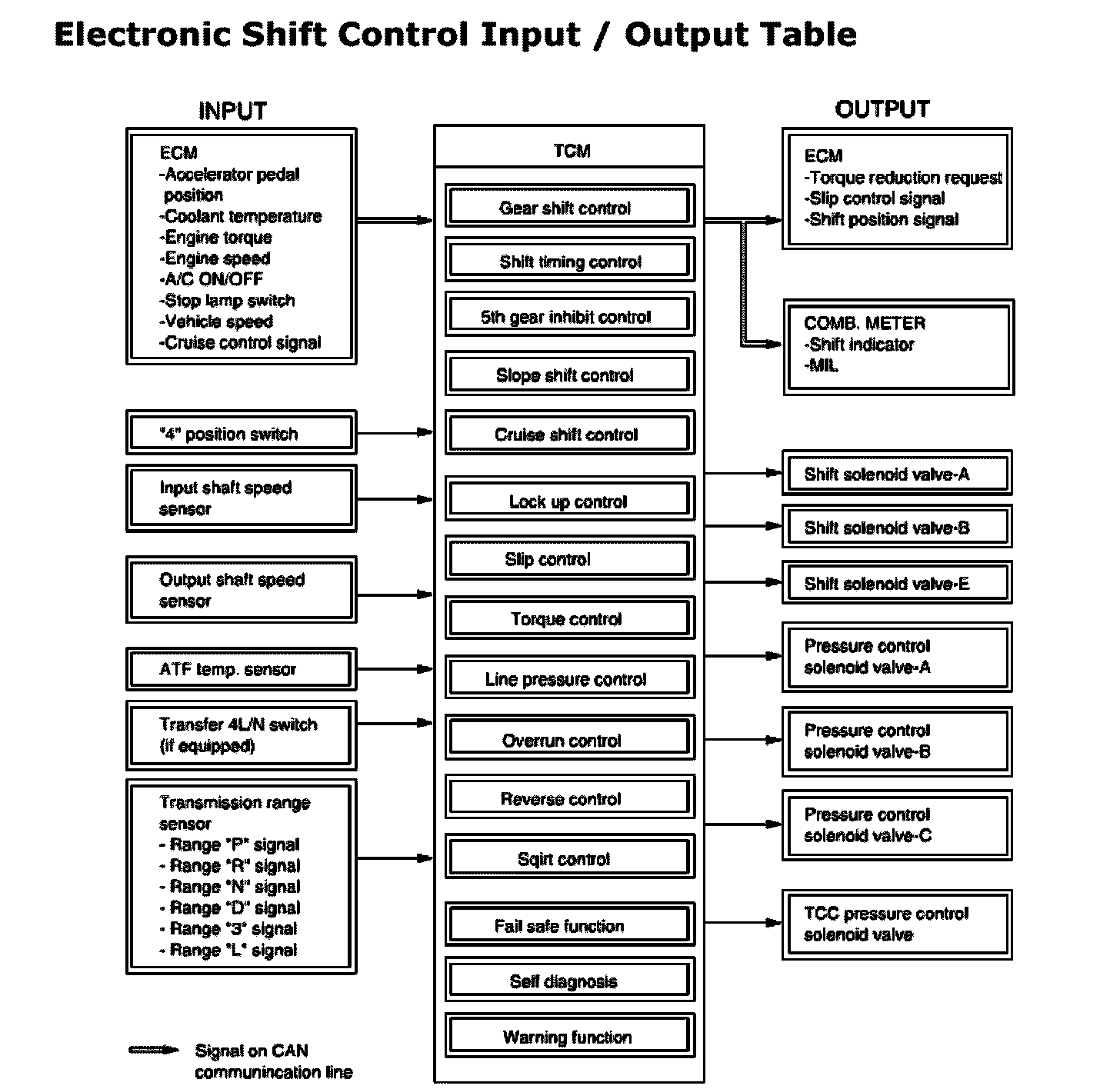

Electronic Shift Control Input / Output TableElectronic Shift Control Input / Output Table (part 1 ):

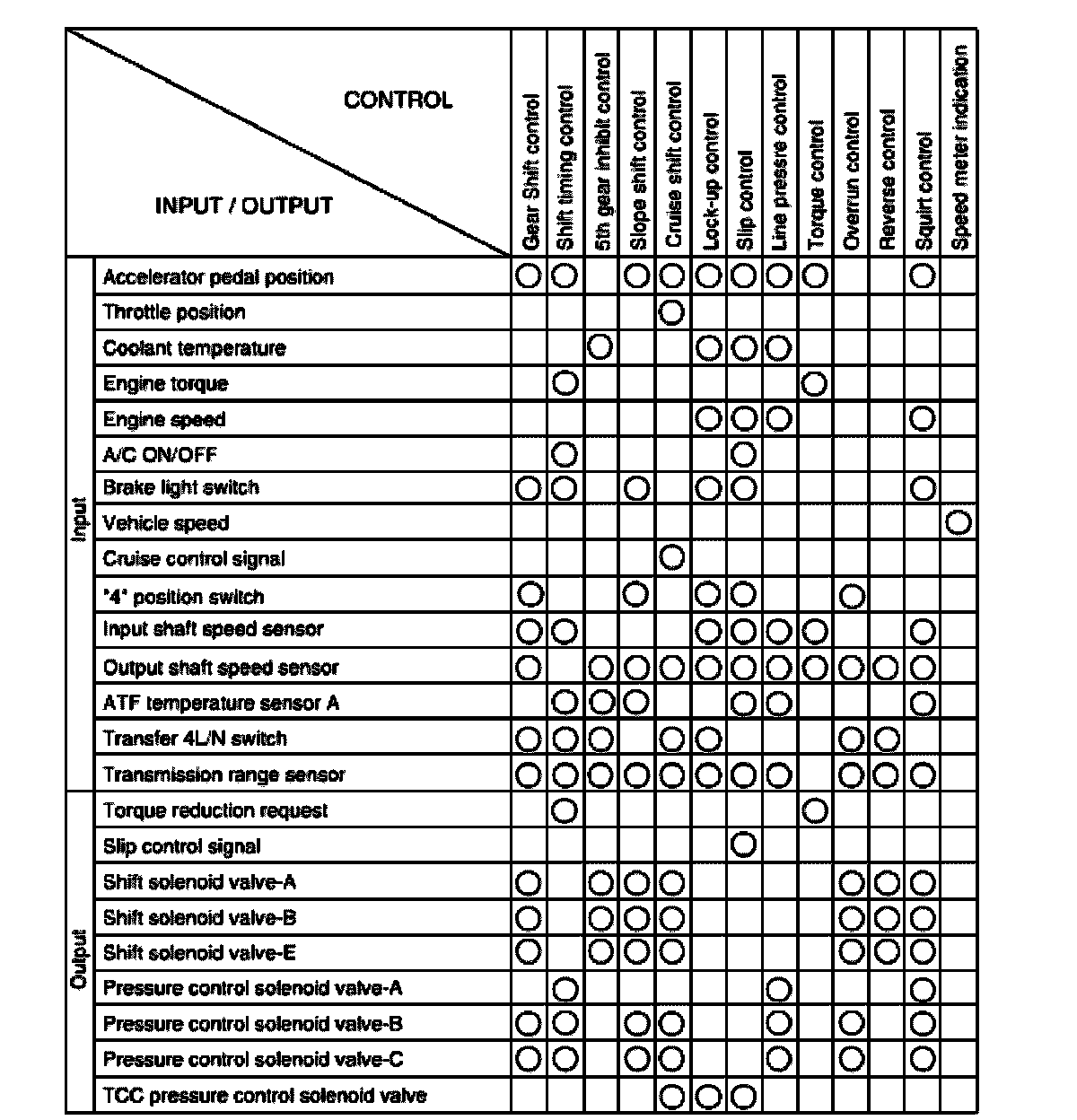

Electronic Shift Control Input / Output Table (part 12):

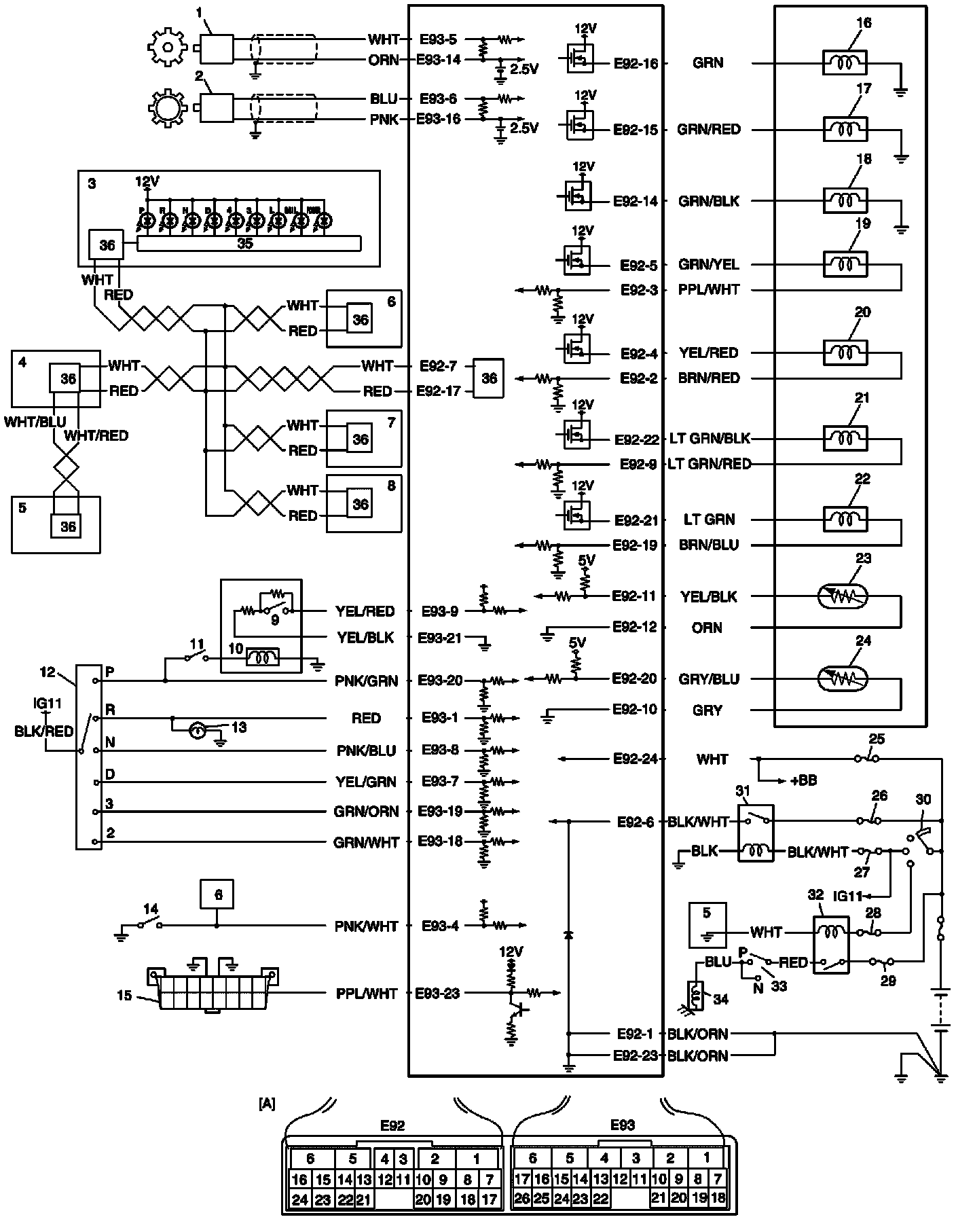

Electronic Shift Control System Wiring Diagram

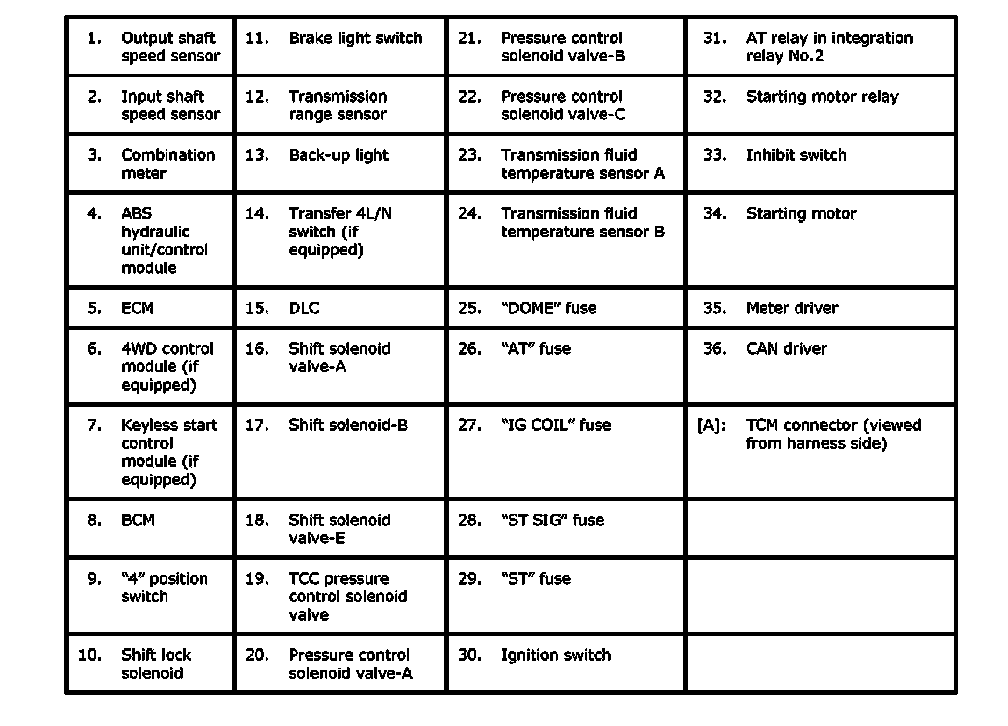

Wiring Diagram:

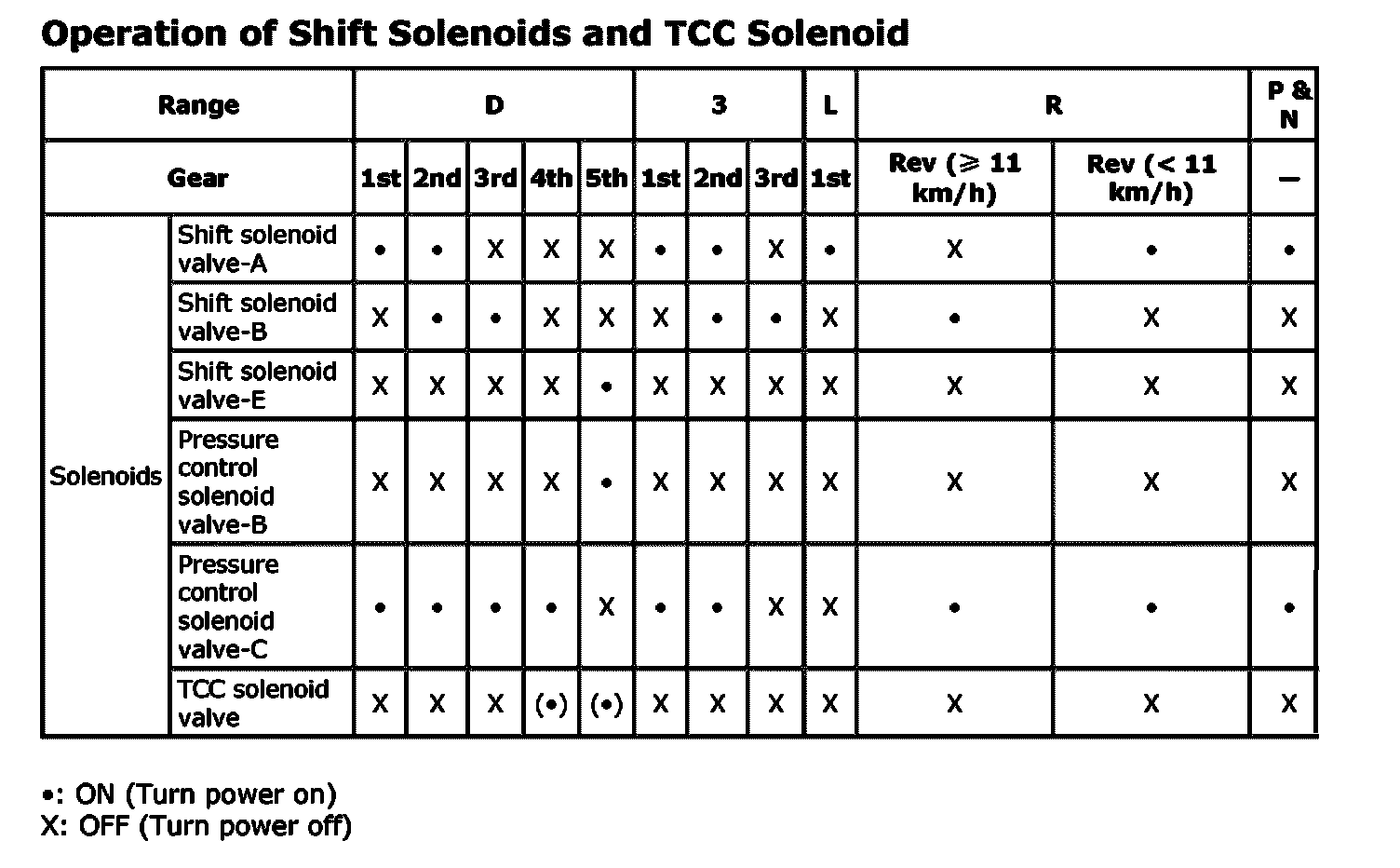

Operation of Shift Solenoids and TCC Solenoid
Operation of Shift Solenoids and TCC Solenoid:
