Manual Selector Assembly Components

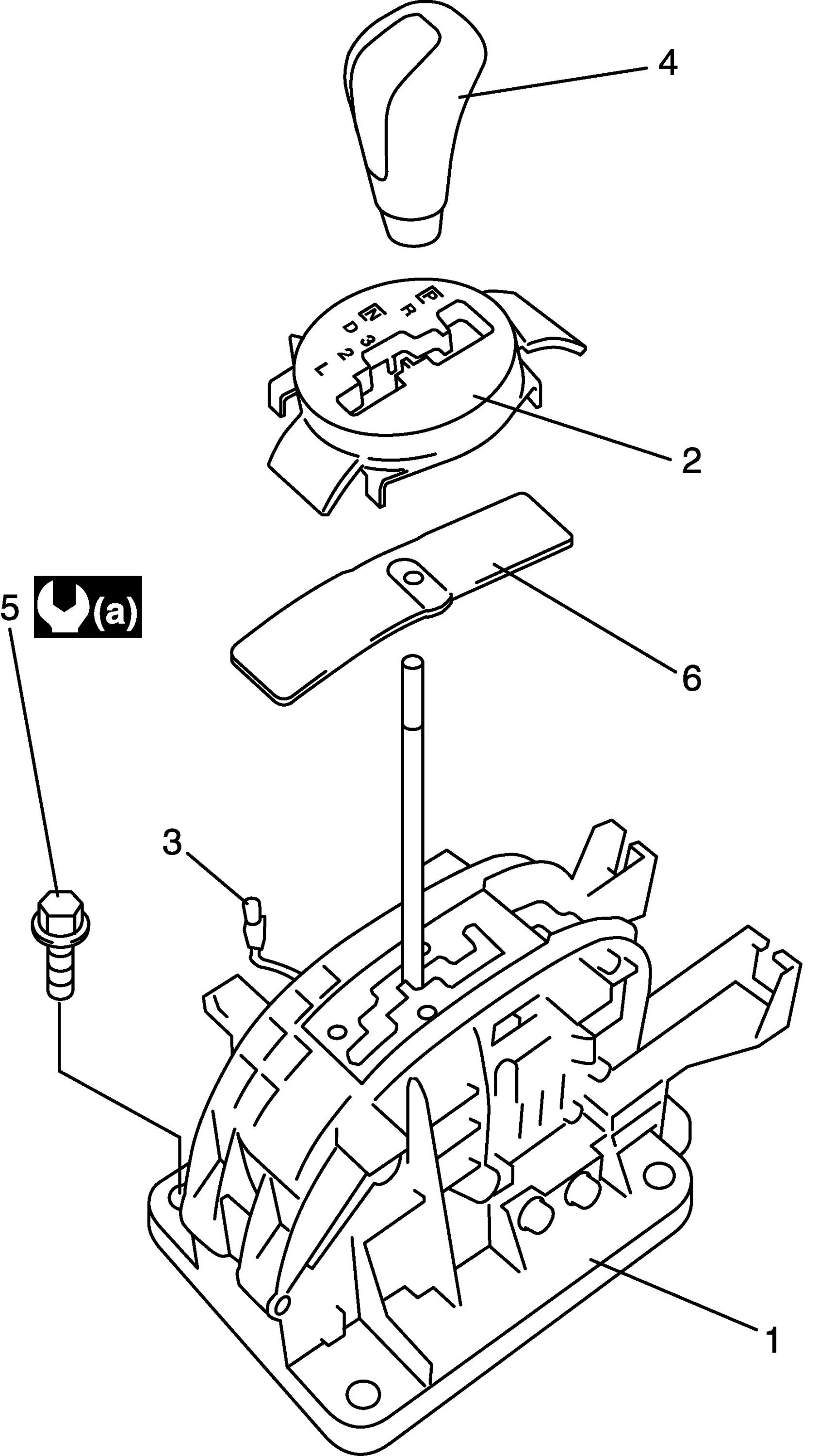

Manual Selector Assembly Components (part 1):

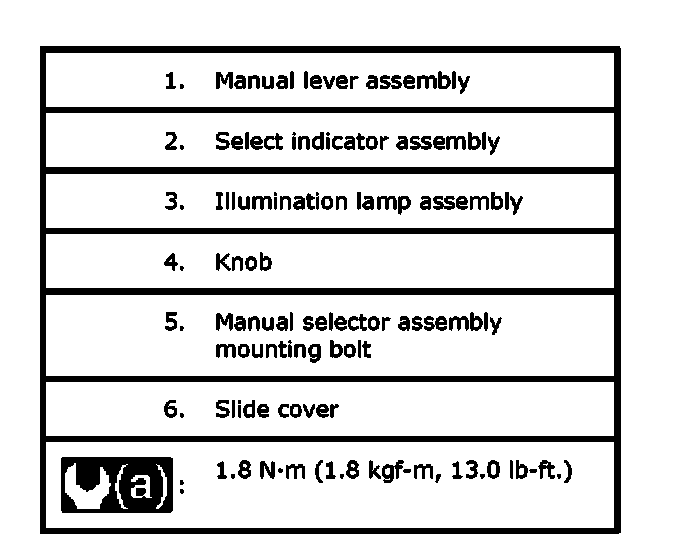

Manual Selector Assembly Components (part 2):
