Front Differential Components

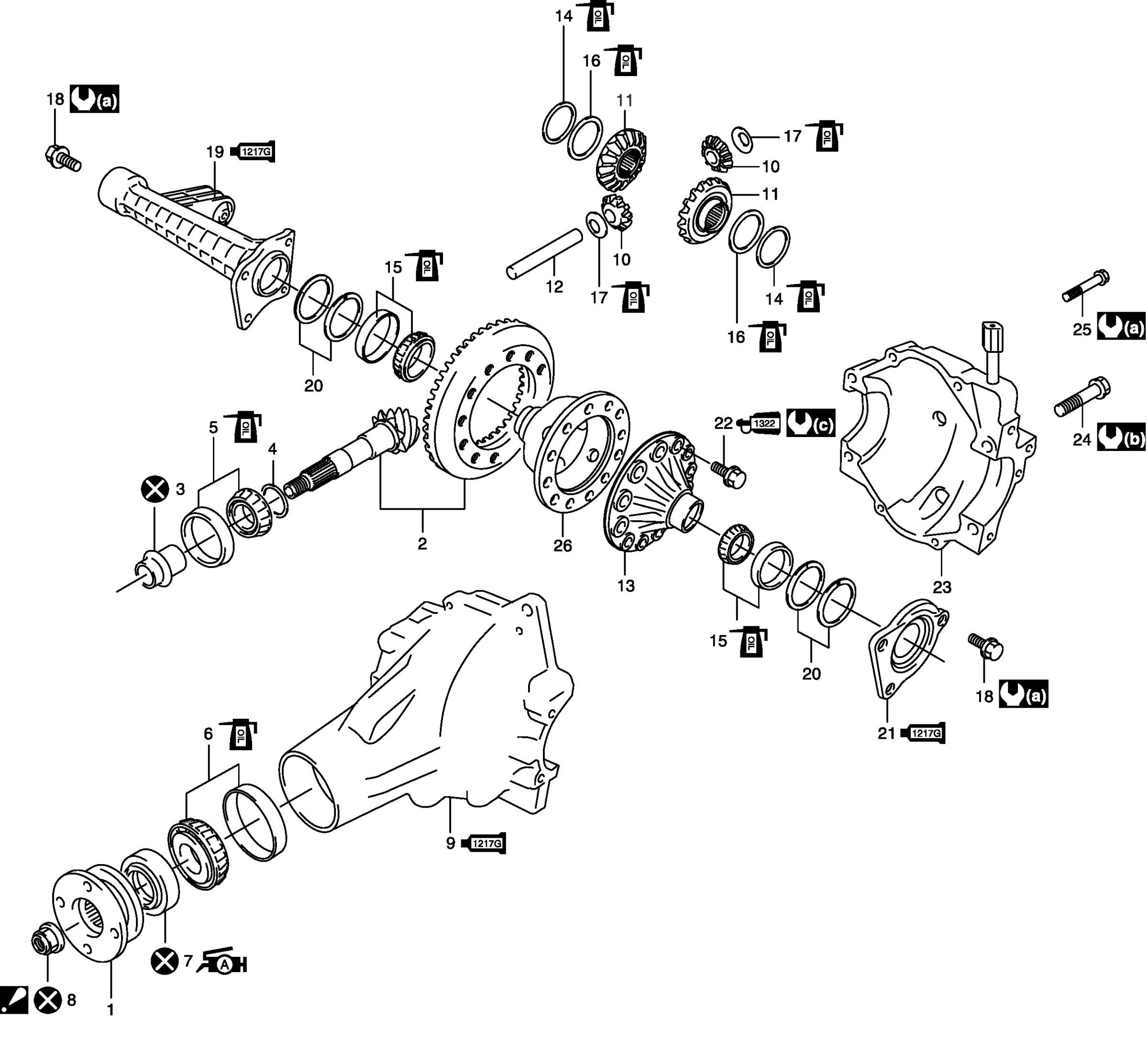

Front Differential Components (part 1):

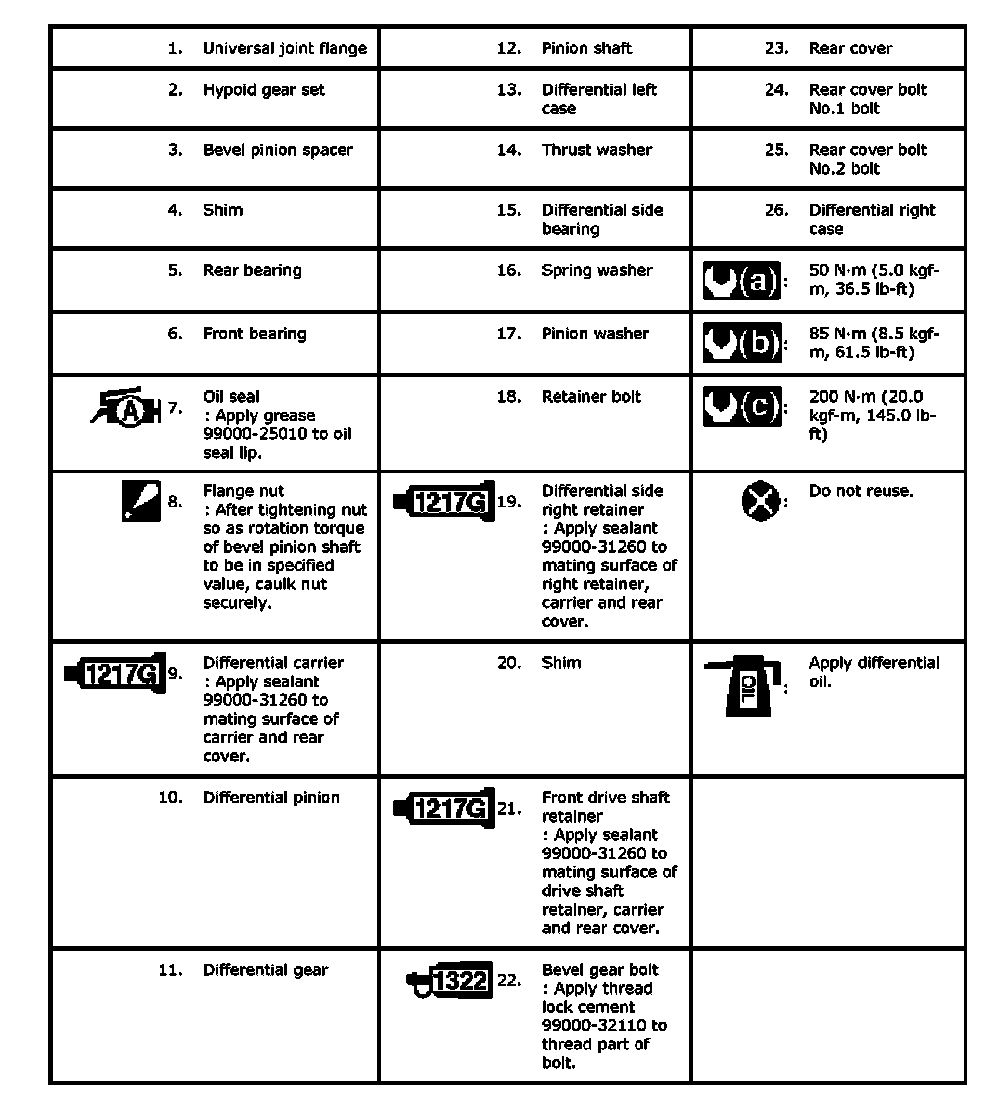

Front Differential Components (part 2):
