Wiper Relay: Service and Repair
Rear Wiper Relay Removal and InstallationRemoval
1. Disconnect negative (-) cable at battery.
2. Remove rear end door trim from rear end door referring to Rear End Door Lock Assembly Removal and Installation.

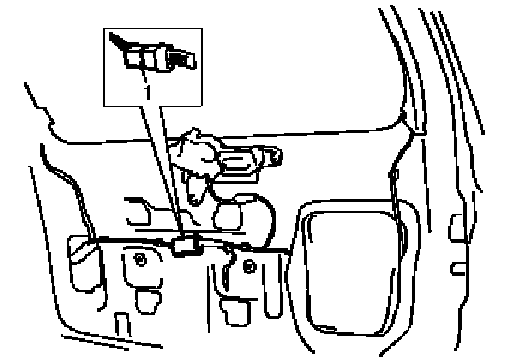

3. Remove rear wiper relay (1).
Installation
Reference: Rear Wiper Relay Inspection
Reverse removal procedure for installation.
