Lamp (License Plate, Side Marker and Front/Rear Position) Circuit: Notchback (For Canada)

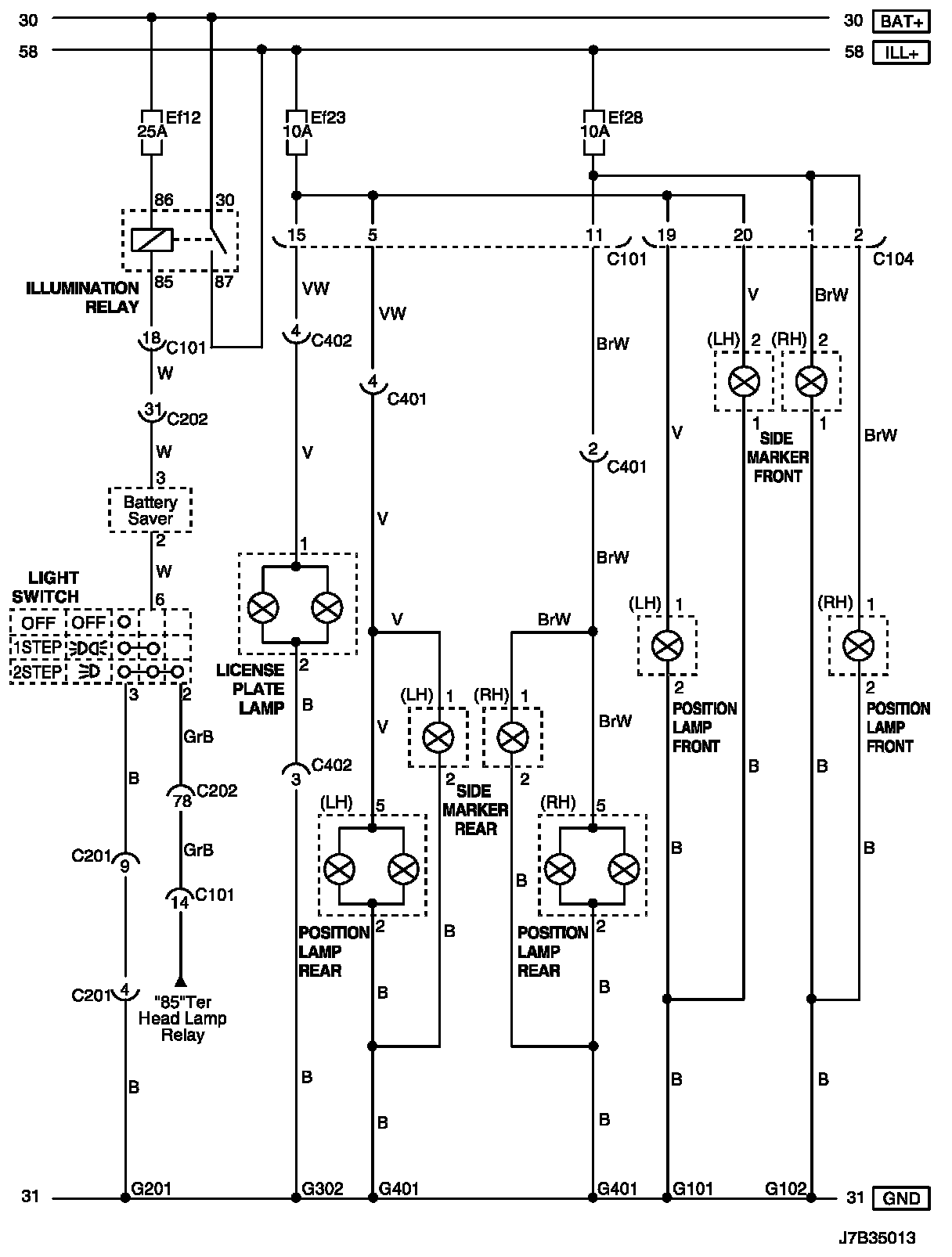

Lamp (License Plate, Side Marker and Front/Rear Position) (For NOTCHBACK Model Canada Only)

Lamp (License Plate, Side Marker and Front/Rear Position) (For NOTCHBACK Model Canada Only):

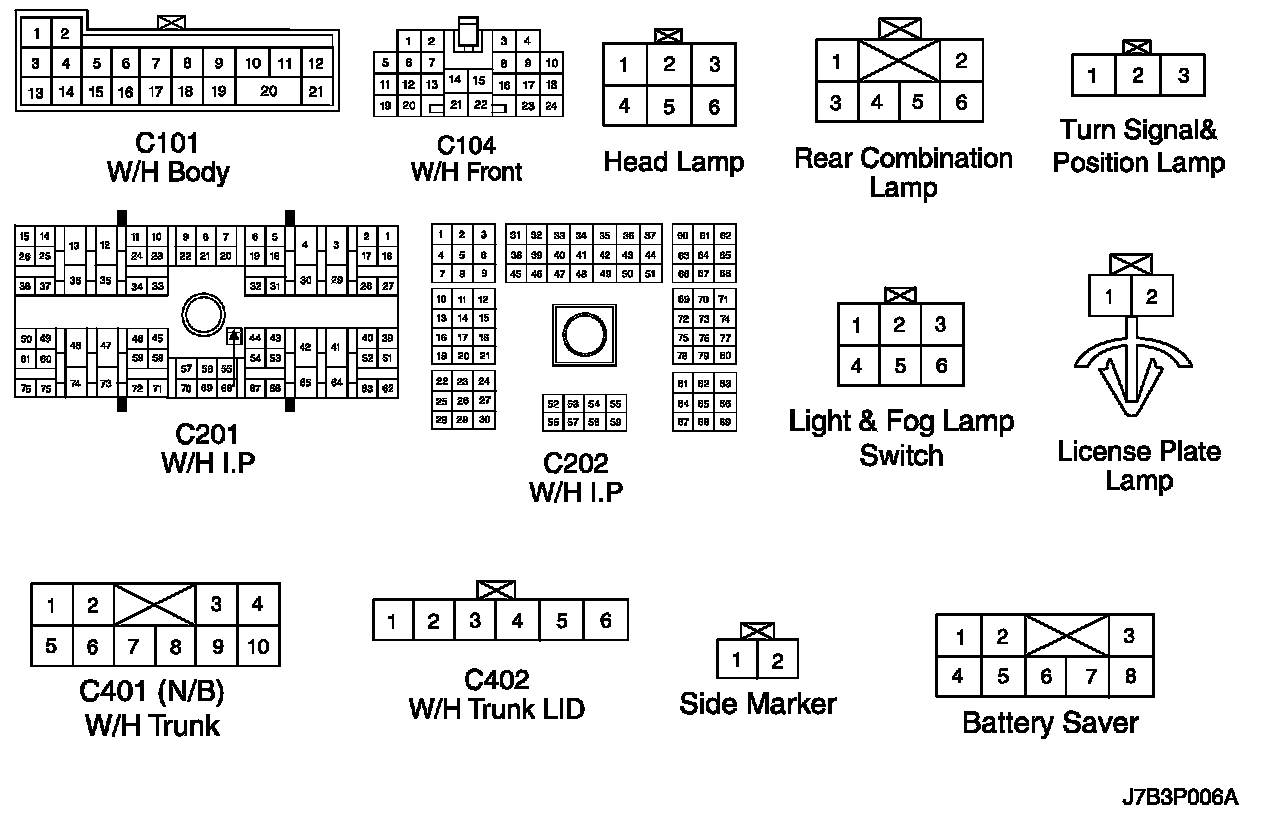

Connector Information

Connector Information:





Connector Identification Symbol and Pin Number Position

Connector Identification Symbol and Pin Number Position:





Position of Connectors and Grounds

Position of Connectors and Grounds - W/H Front:




Position of Connectors and Grounds - W/H Trunk Lid:




Position of Connectors and Grounds - W/H Body:
