Body Control Module: Testing and Inspection

Security Alarm Mode Selection Procedure (If Equipped)

Reference: Security Alarm Description (If Equipped)
Security alarm mode can be selected by performing the following procedure.
1. Confirm that all doors are closed, all doors are unlocked and ignition key is inserted in ignition key cylinder.
2. Remove ignition key from ignition key cylinder.
3. Perform Step a) through e) described below within 15 seconds.

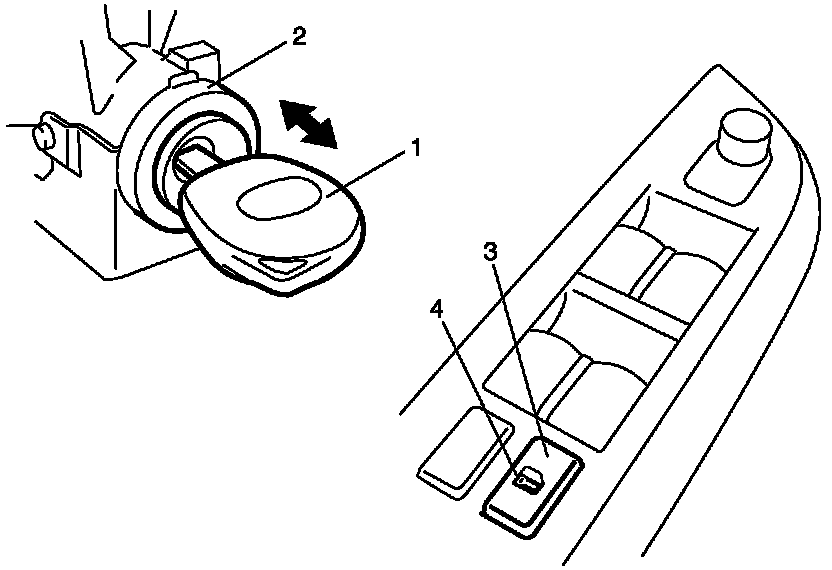

a. Insert ignition key (1) in ignition key cylinder (2).
b. Remove ignition key from ignition key cylinder.
c. Repeat Step a) and b) twice.
d. Insert ignition key in ignition key cylinder.
e. Push lock side (3) of driver side manual lock switch (4) 3 times.






4. When Step 3) is completed, the mode changes to the next one automatically. Repeat the procedure from Step 1) until the desired mode is obtained. The mode changes in the following order.

BCM No. 36770-65JC0:
a. Changed from A mode to B mode: Buzzer sounds twice
b. Changed from B mode to C mode: Buzzer sounds 3 times
c. Changed from C mode to D mode: Buzzer sounds 4 times
d. Changed from D mode to A mode: Buzzer sounds once

BCM No. 36770-65JC1 or thereafter:
a. Changed from A mode to D mode: Buzzer sounds 4 times
b. Changed from D mode to A mode: Buzzer sounds once
