CAN Communication System Description
CAN Communication System DescriptionRefer to CAN Communication System Description for CAN communication system description.
BCM communication control data with each control module as follows.

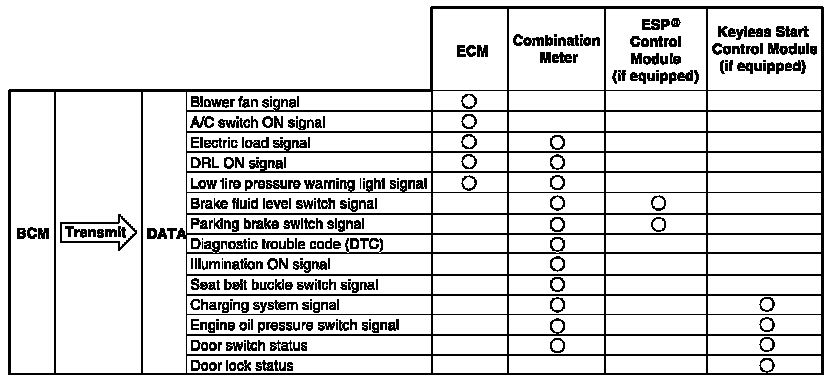

BCM Transmission DataBCM Transmission Data:

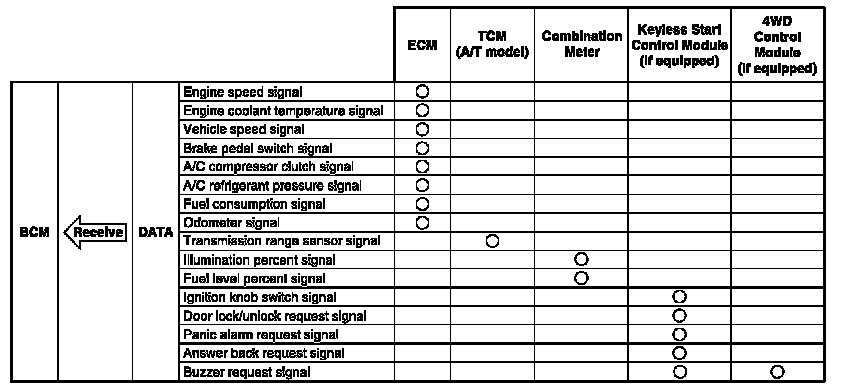

BCM Reception DataBCM Reception Data:
