Precautions In Sensor Calibration

Precautions in Sensor Calibration
ESP(R) control module stores calibration points data of yaw rate / G sensor assembly and master cylinder pressure sensor. Steering angle sensor stores calibration point data of itself. TCS and stability control system use these sets of data.

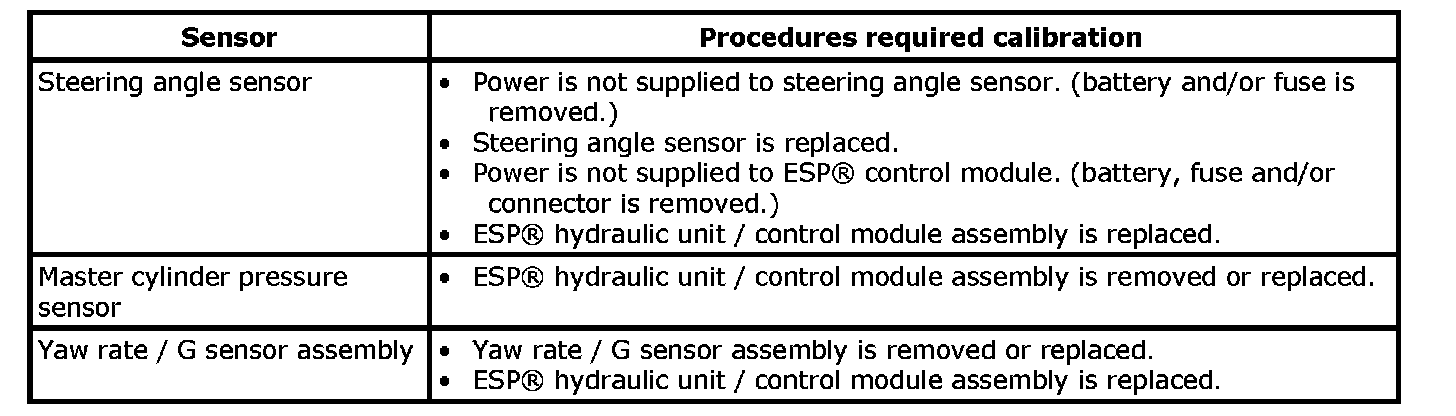

When the following operation is done, calibration should be performed since the original calibration points are deleted.

Perform sensor calibration according to Sensor Calibration.
