Clutch Switch: Testing and Inspection

Clutch Pedal Position (CPP) Switch (for Cruise Control) Inspection and Adjustment

Reference: CPP Switch (for Cruise Control) Removal and Installation

Inspection

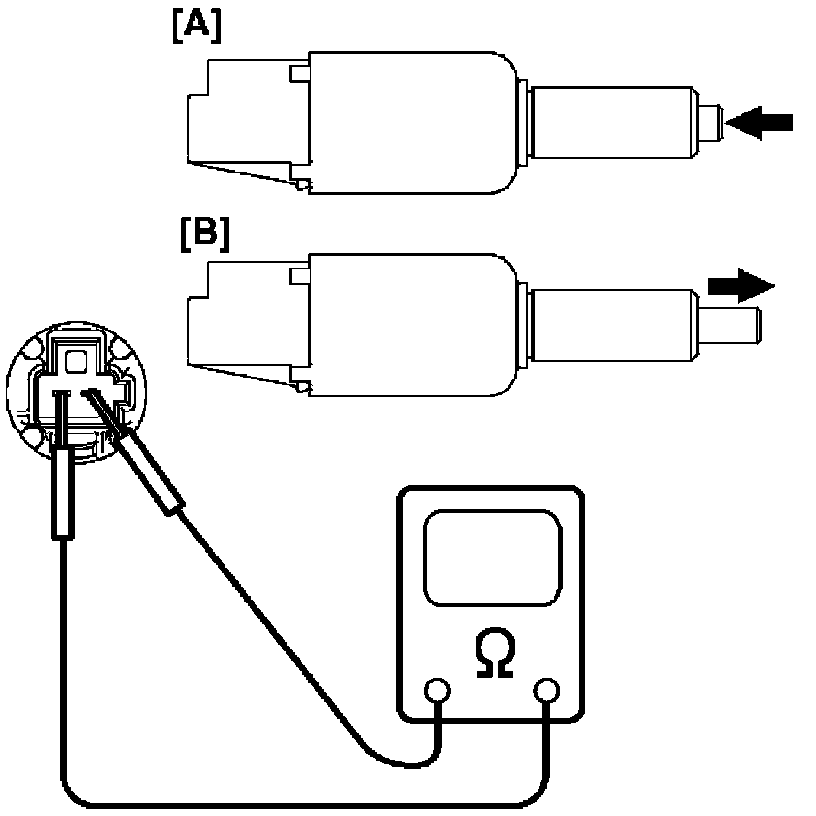

Check for resistance between terminals under each condition below. If check result is not satisfactory, replace.

CPP switch (for cruise control) resistance
When switch shaft is pushed [A]: No continuity
When switch shaft is free [B]: Continuity






Adjustment
For adjustment, refer to "Installation" under CPP Switch (for Cruise Control) Removal and Installation.
