Hydraulic Control Assembly - Antilock Brakes

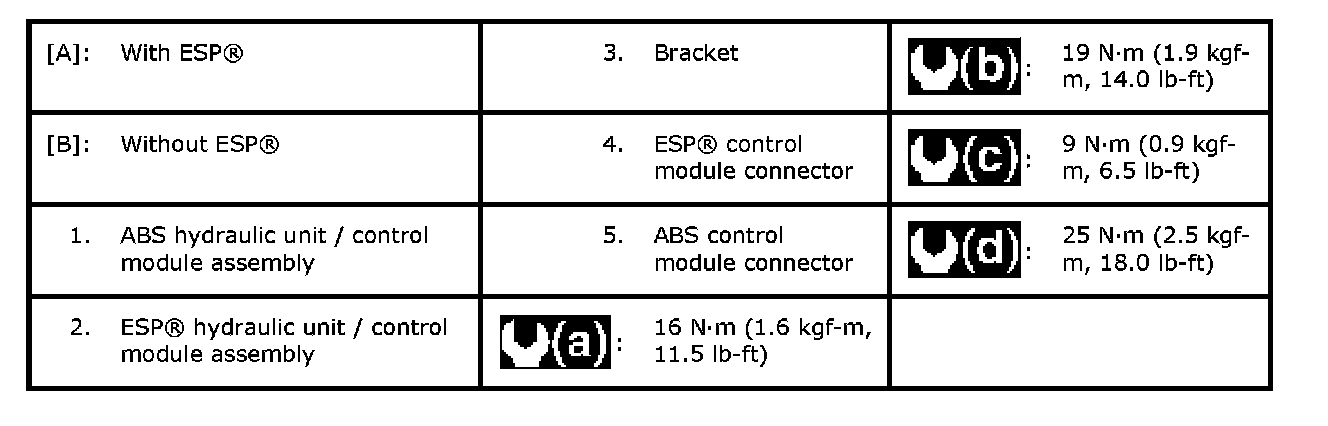

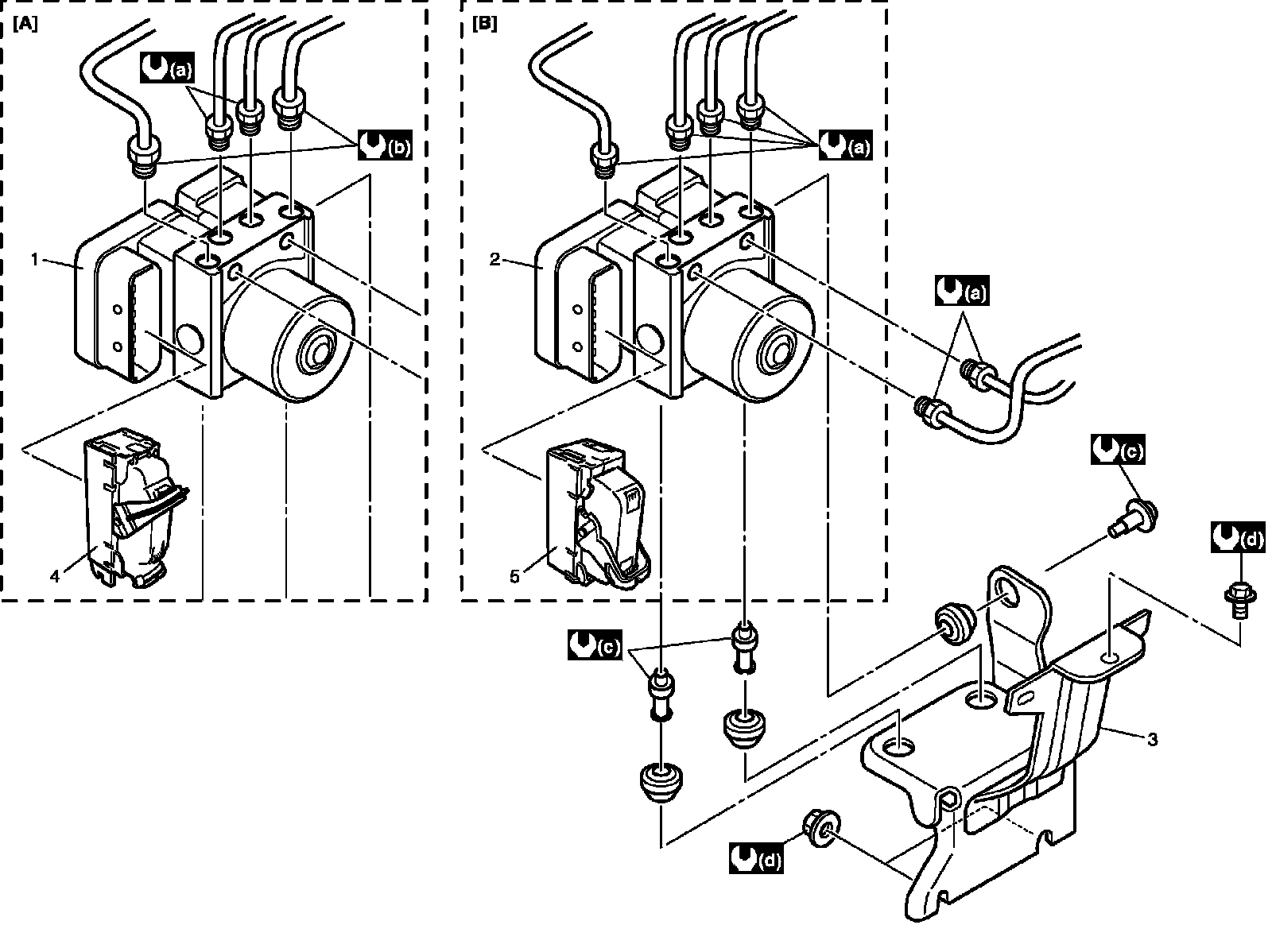

ABS (ESP(R)) Hydraulic Unit / Control Module Assembly Components

CAUTION:
Never disassemble ABS (ESP(R)) hydraulic unit / control module assembly, loosen blind plug or remove motor. Performing any of these prohibited services will affect original performance of ABS (ESP(R)) hydraulic unit / control module assembly.
