Heater Core: Service and Repair

Heater Core Removal and Installation

Removal
1. Remove instrument panel referring to Instrument Panel Removal and Installation.
2. Remove HVAC unit. Refer to HVAC Unit Removal and Installation.

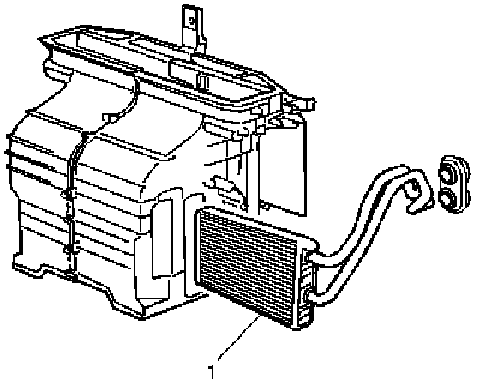

3. Remove heater core pipe clamp and then, pull out heater core (1) from HVAC unit.






Installation
1. Install heater core by reversing removal procedure, noting the following items.
- When installing heater core, be careful not to damage fins of heater core.
- When installing each part, be careful not to catch any wiring harness.
