Receiver Dryer: Service and Repair

Desiccant Removal and Installation

Removal

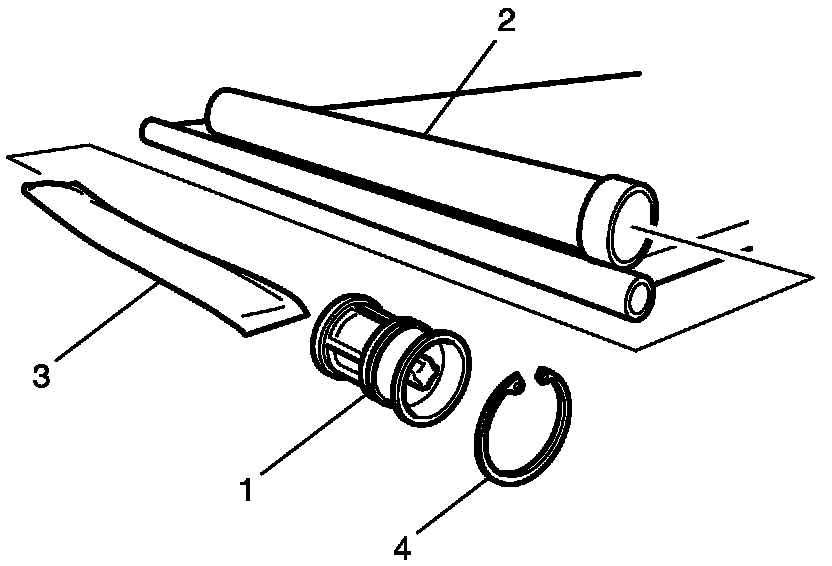

1. Remove condenser assembly from vehicle referring to A/C Condenser Assembly Removal and Installation.
2. Remove circlip (4) using special tool.

Special Tool
:09900-06107

3. Remove the filter (1) from the receiver / dryer tank (2).
4. Remove desiccant (3).






Installation
Reverse removal sequence to install desiccant, according to instruction manual with supply parts.

NOTE:
- Replenish specified amount of compressor oil to compressor suction side referring to Precautions on Replenishing Compressor Oil.

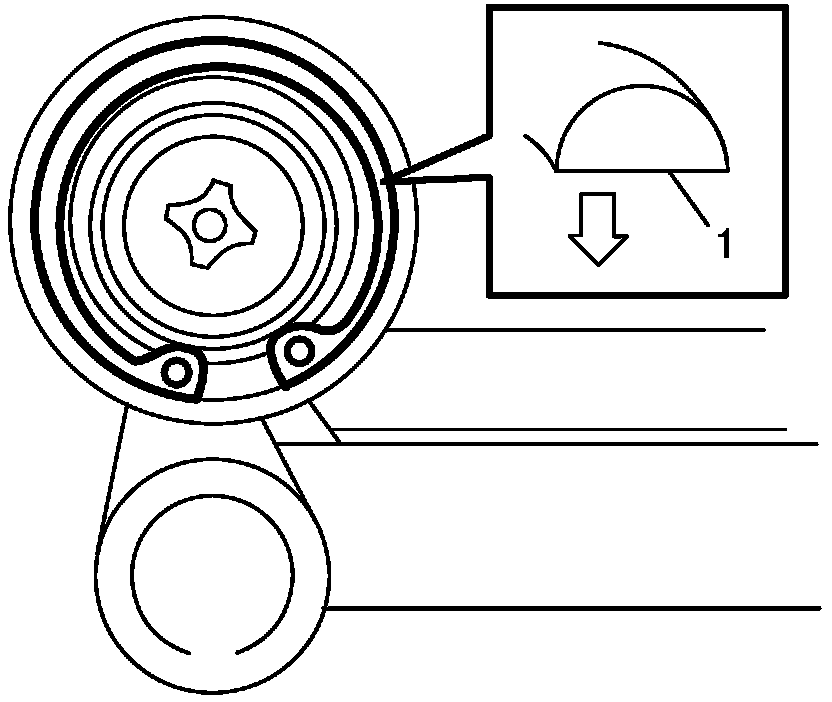

- Install circlip (1) as shown in figure.
