Fuse: Locations

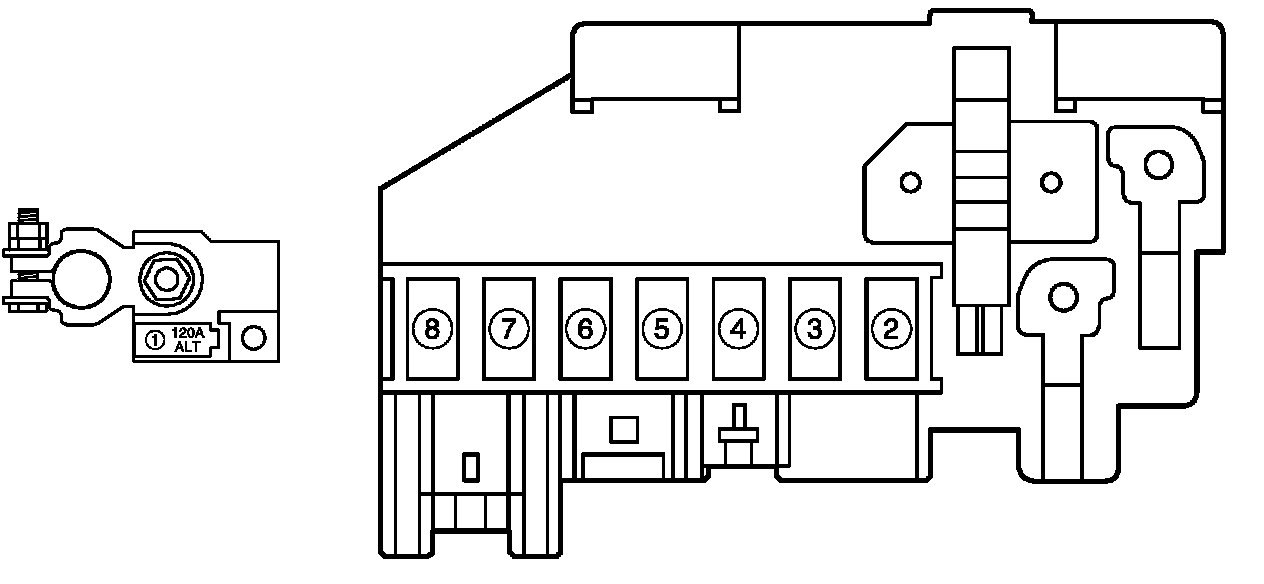

Fuse In Battery Fuses Box, Fuse Box No.1:

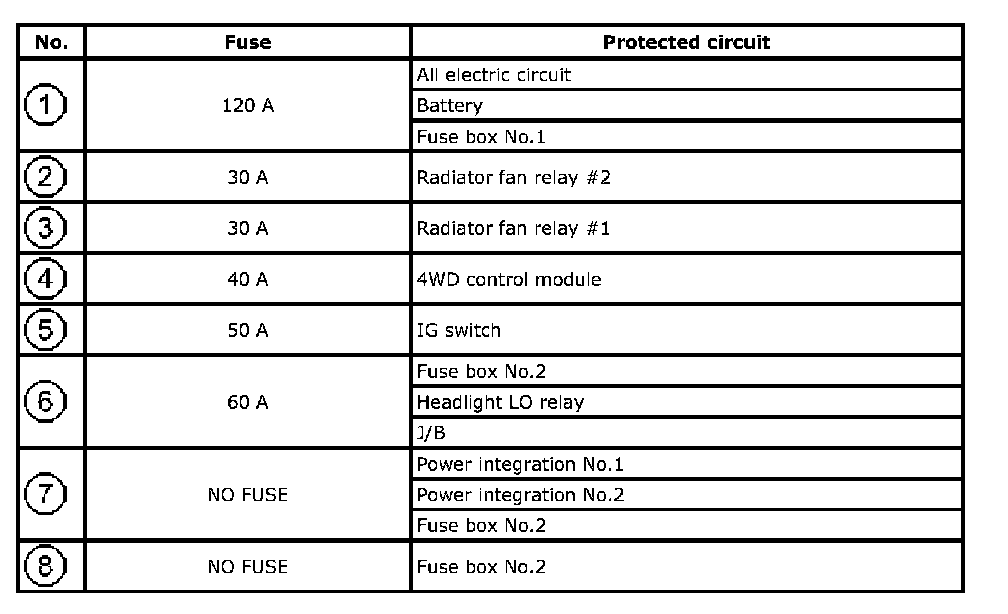

Fuse Box No.1 Application Table Fuse 1-Fuse 8:

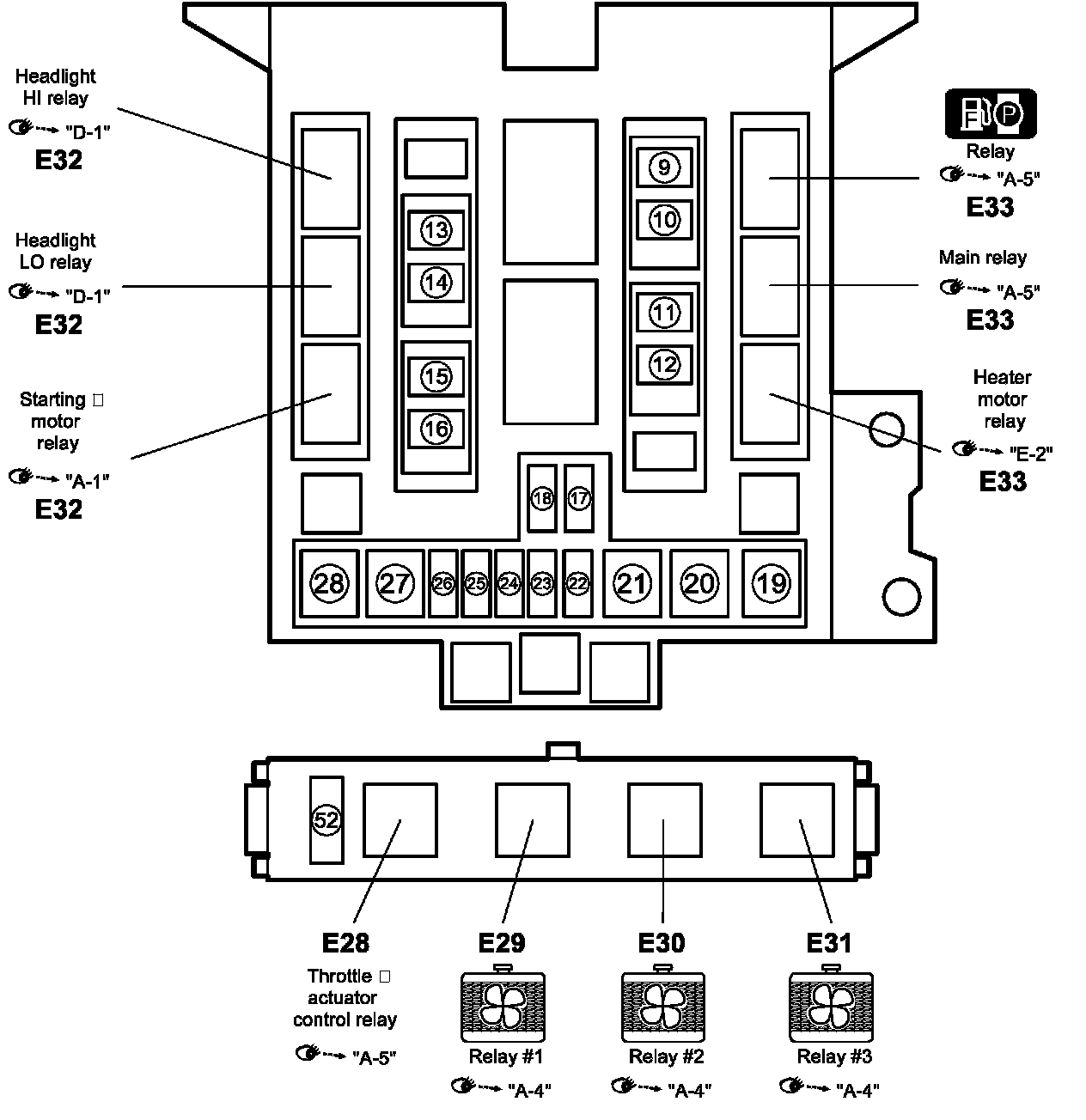

Fuse Box No.2 (in Power Integration No.1. Power Integration No.2), Relay Box:

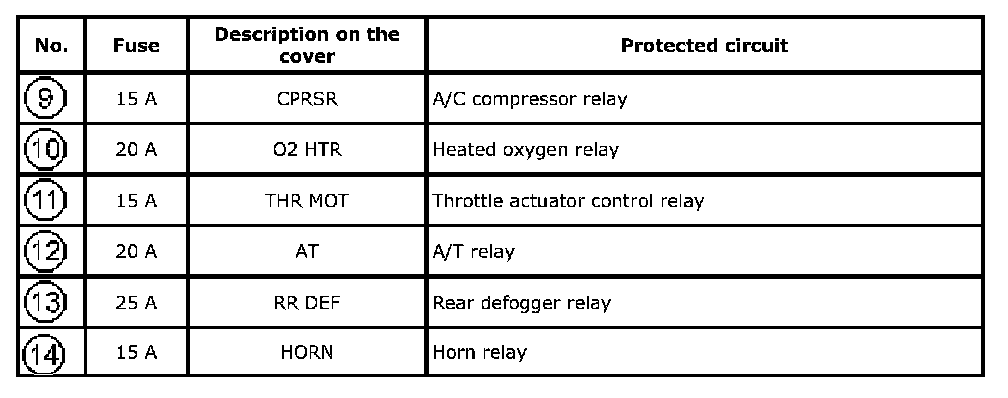

Fuse Box No.2 Fuse 9-Fuse 14:

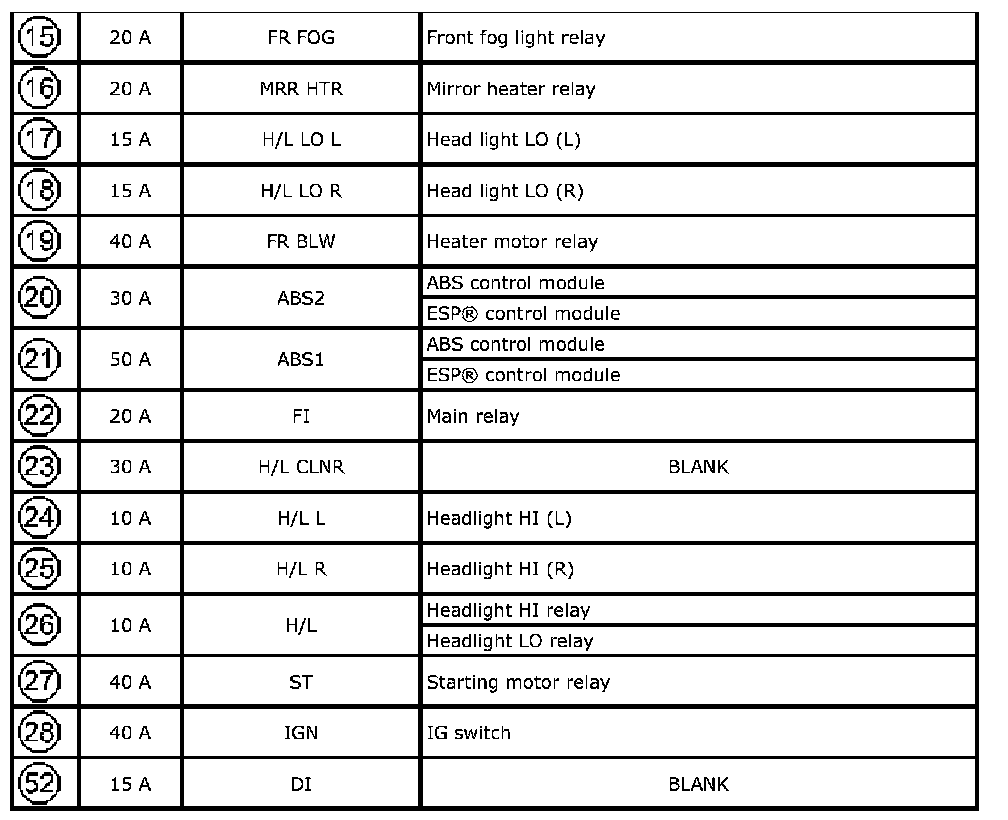

Fuse Box No.2 Fuse 15-Fuse 52:

Fuse Box No.3 (in J/B):

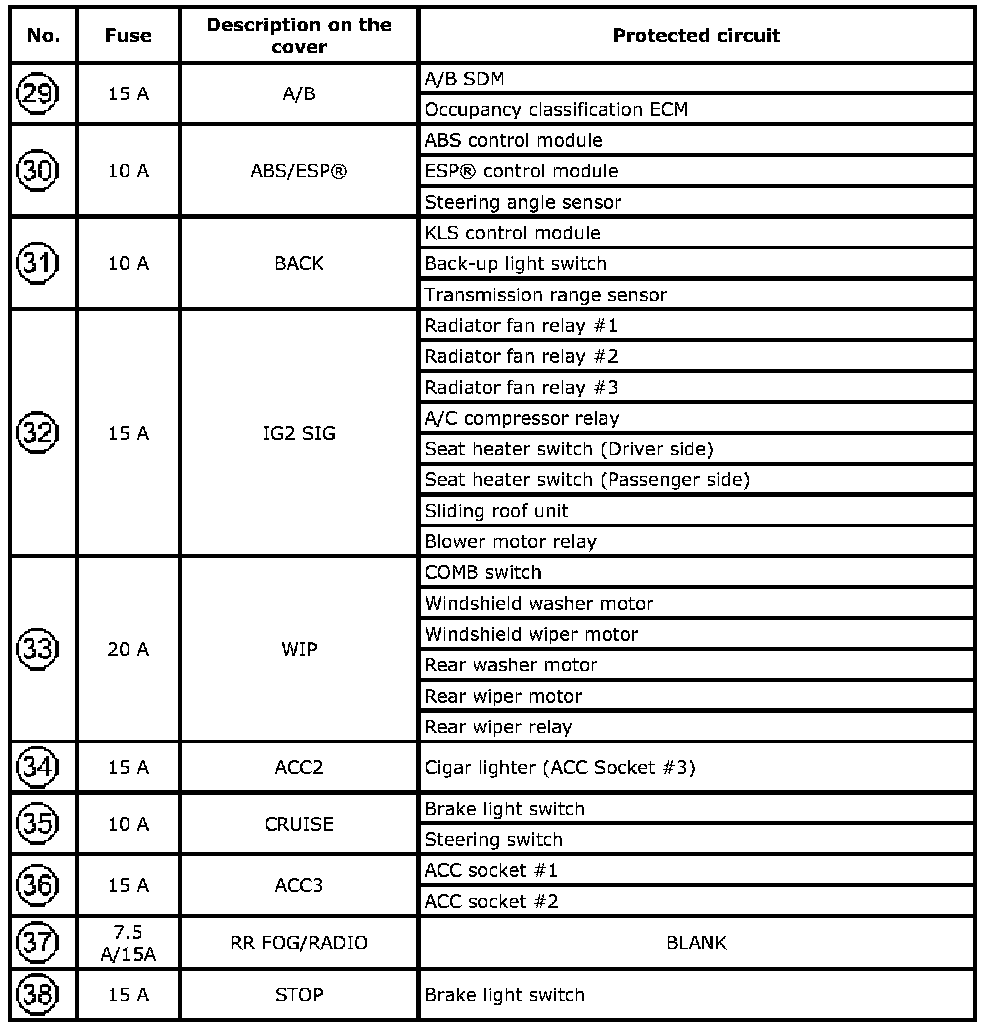

Fuse Box No.3 Fuse 29-Fuse 38:

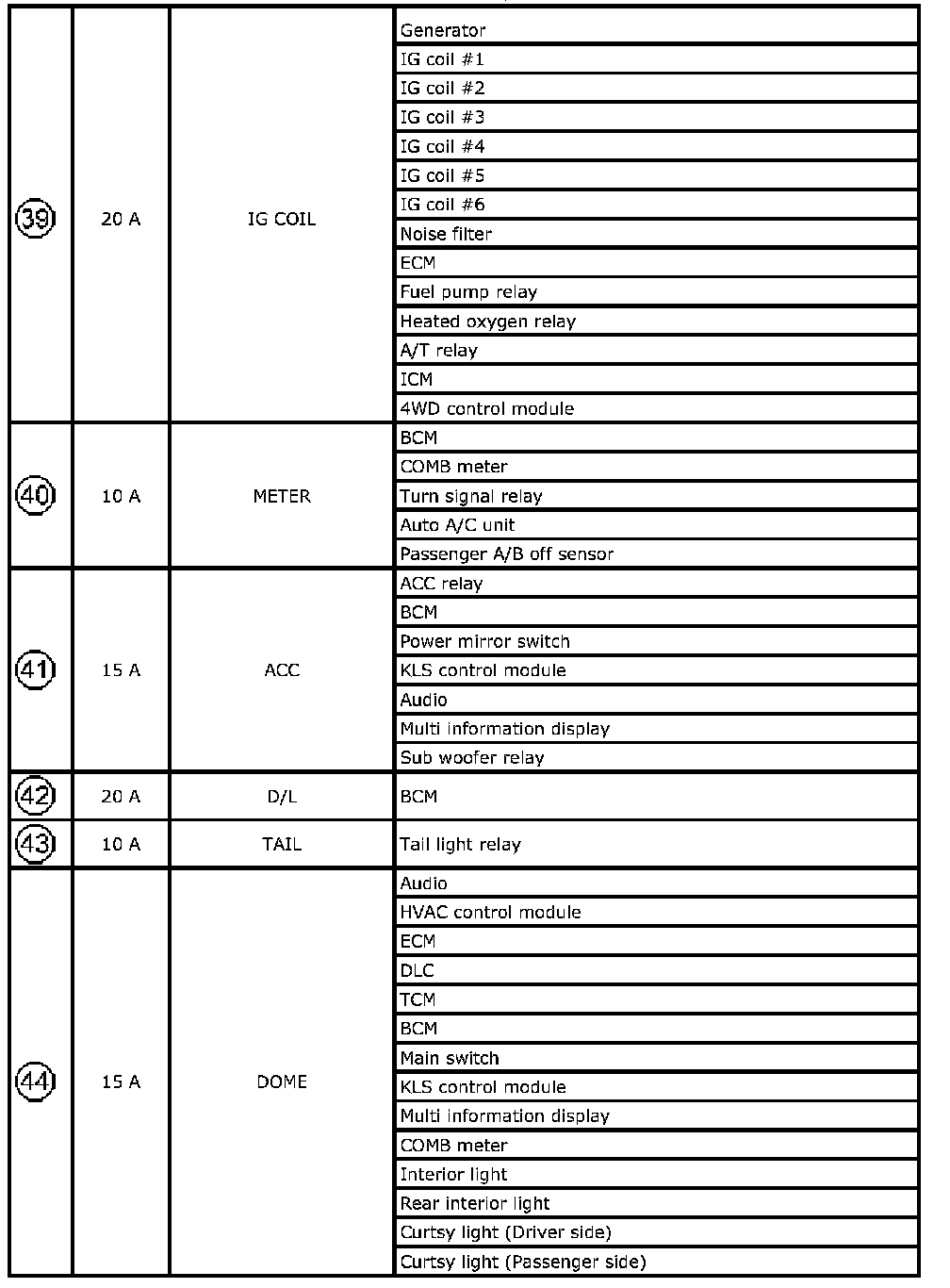

Fuse Box No.3 Fuse 39-Fuse 44(Continued):

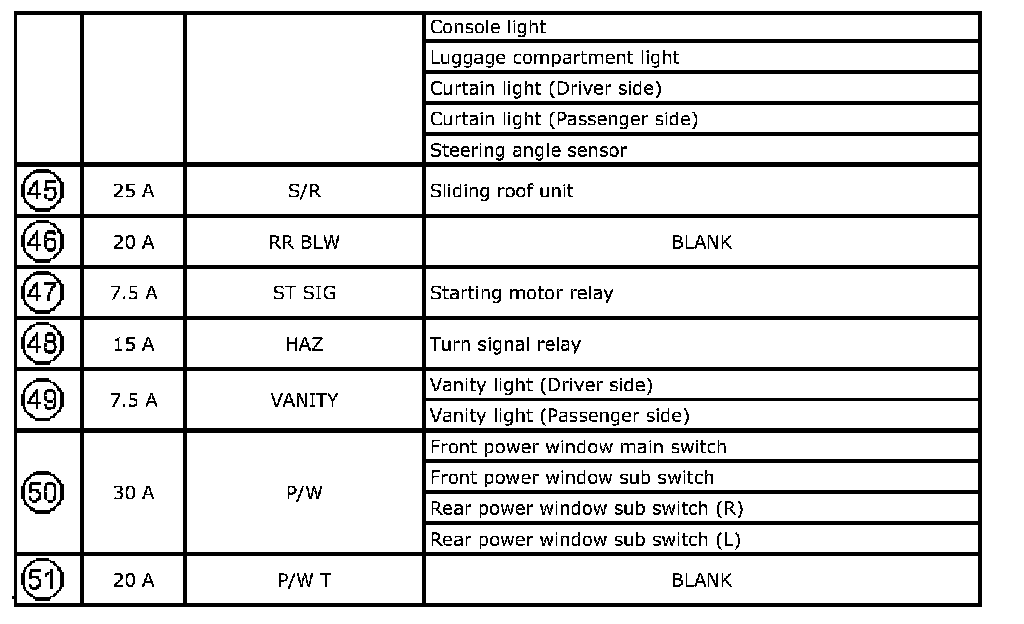

Fuse Box No.3 Fuse 44(Continued)-Fuse 51:

Junction Block (J/B) Connector / Fuse Layout:
