Electronic Control System Description

Electronic Control System Description

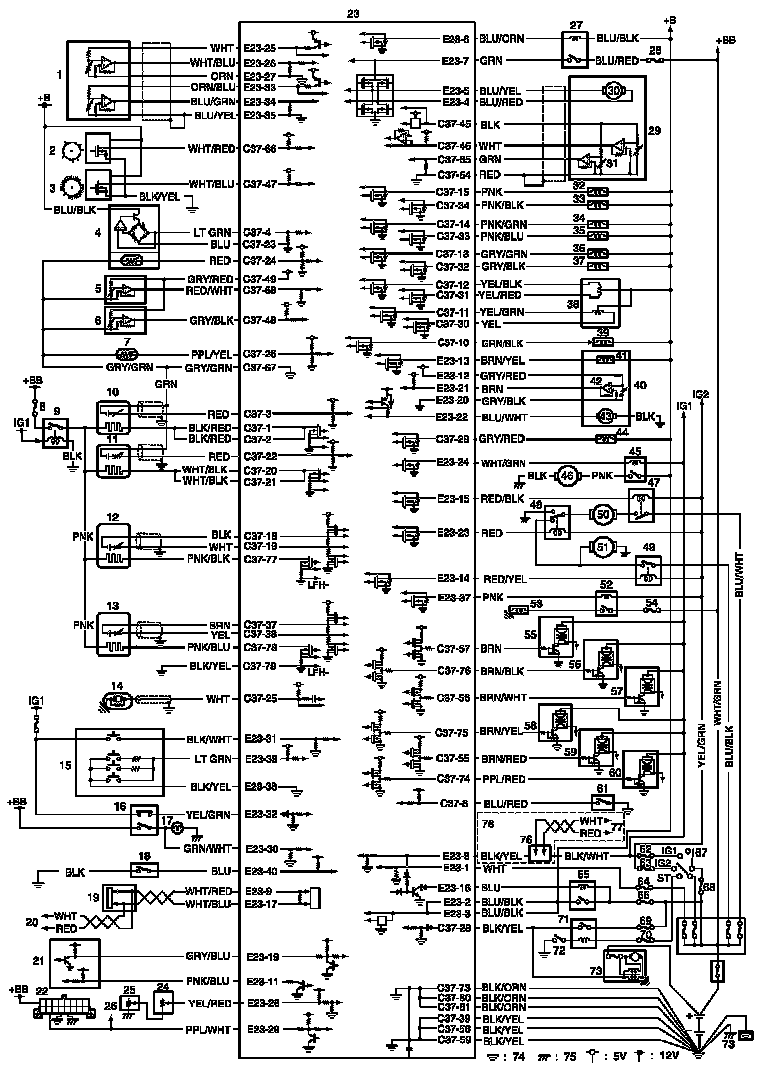

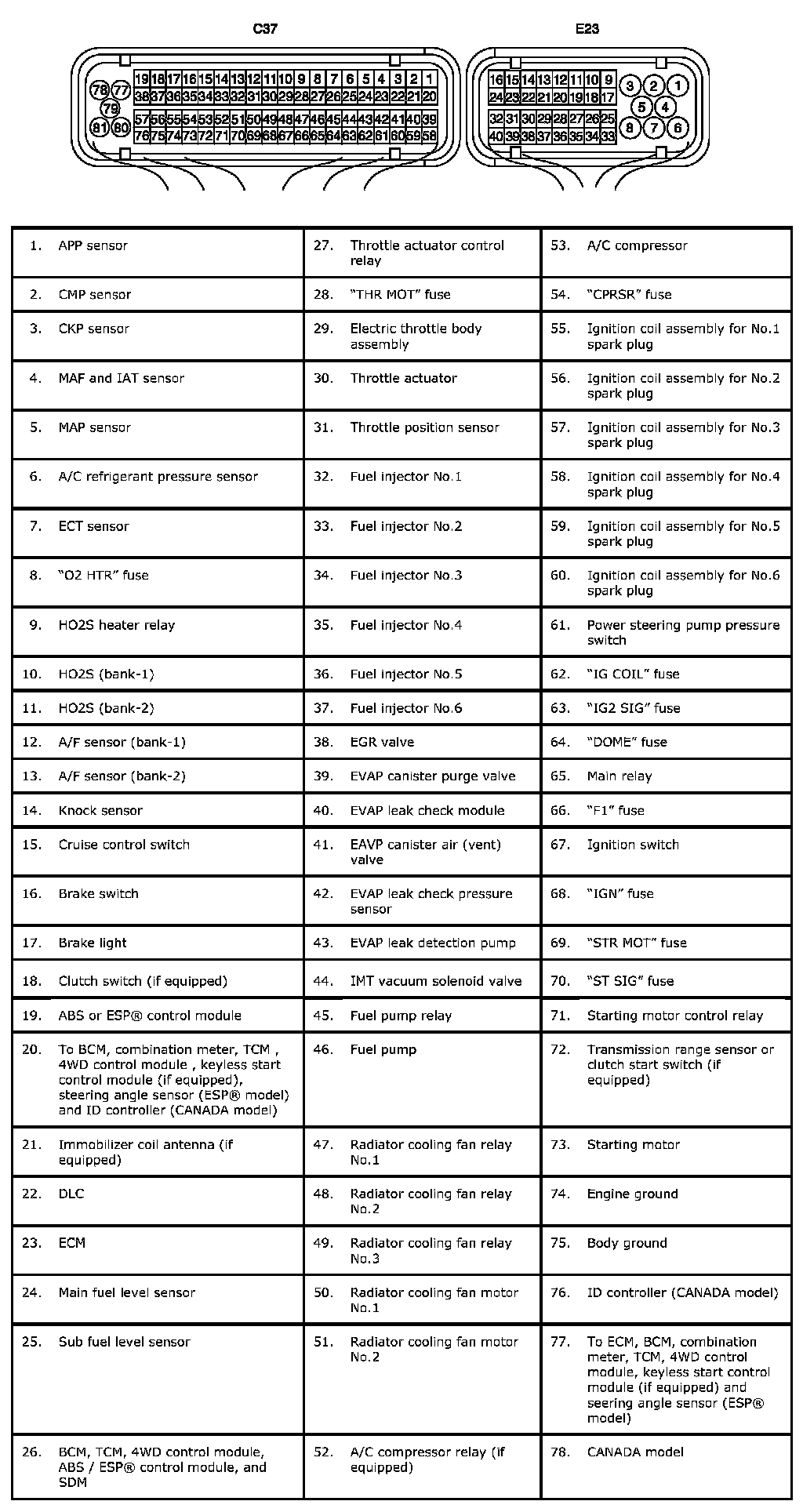

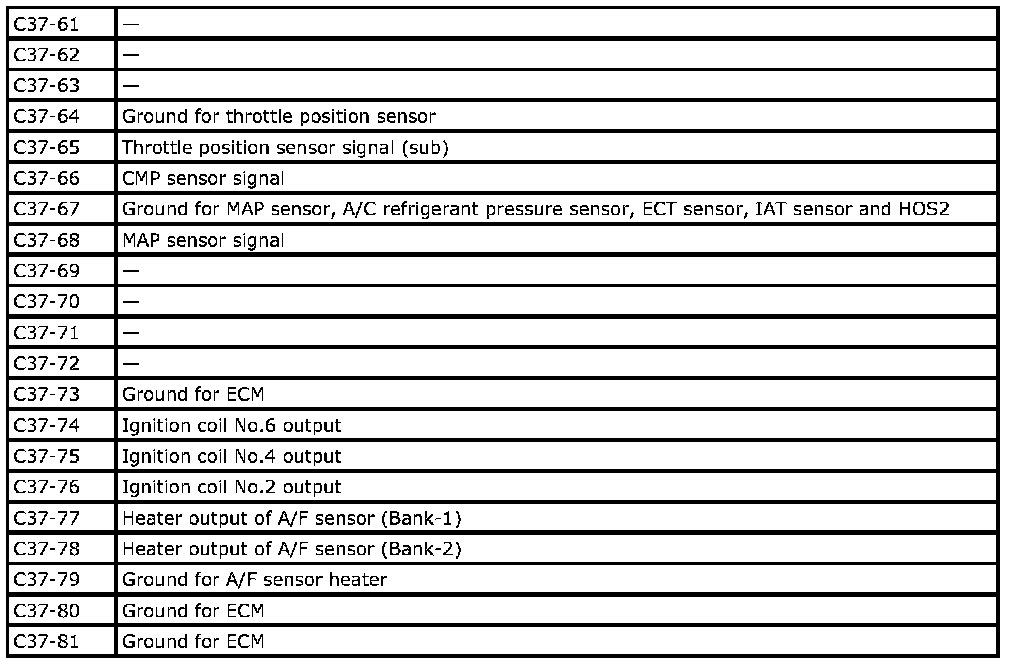

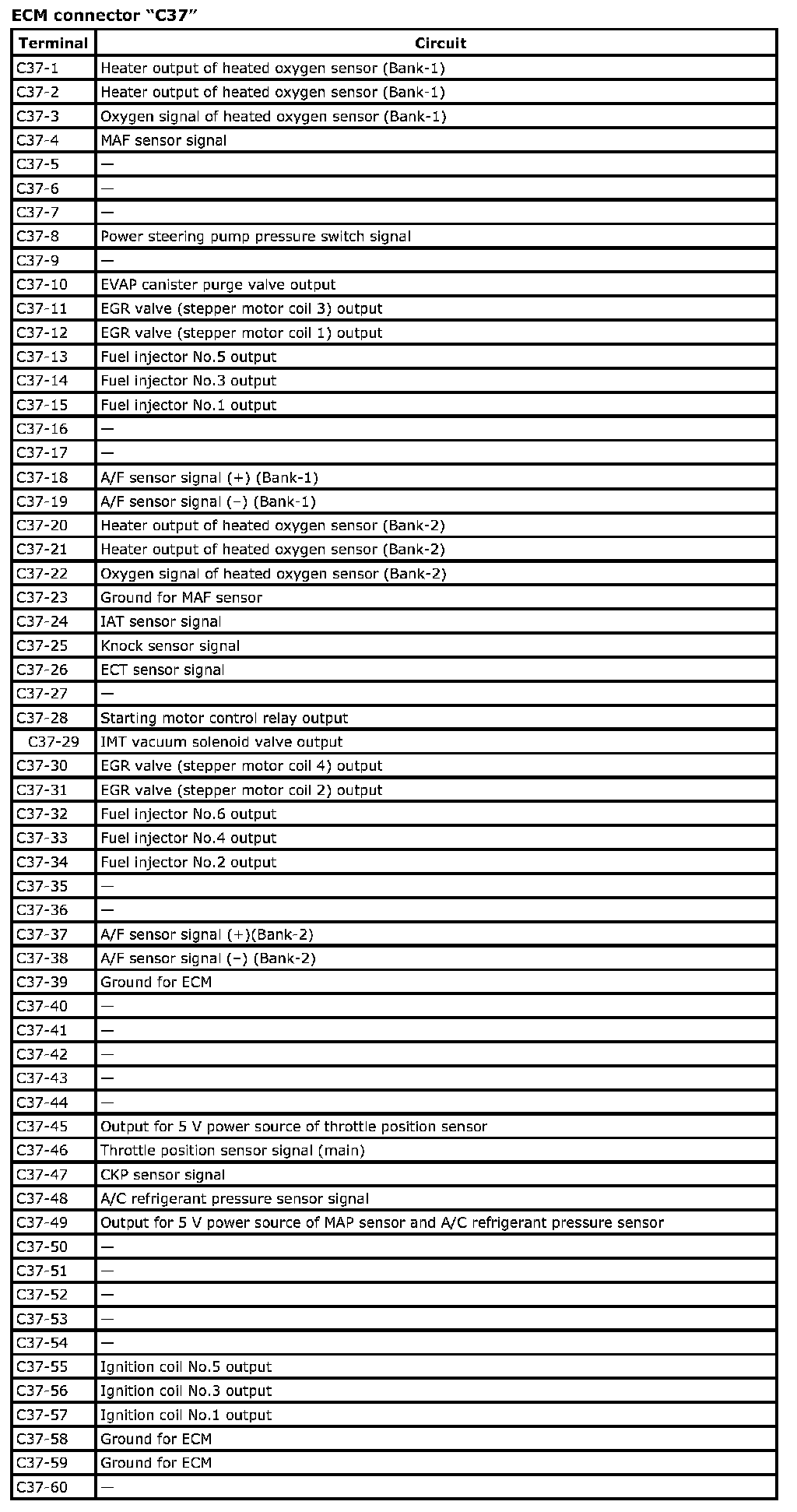

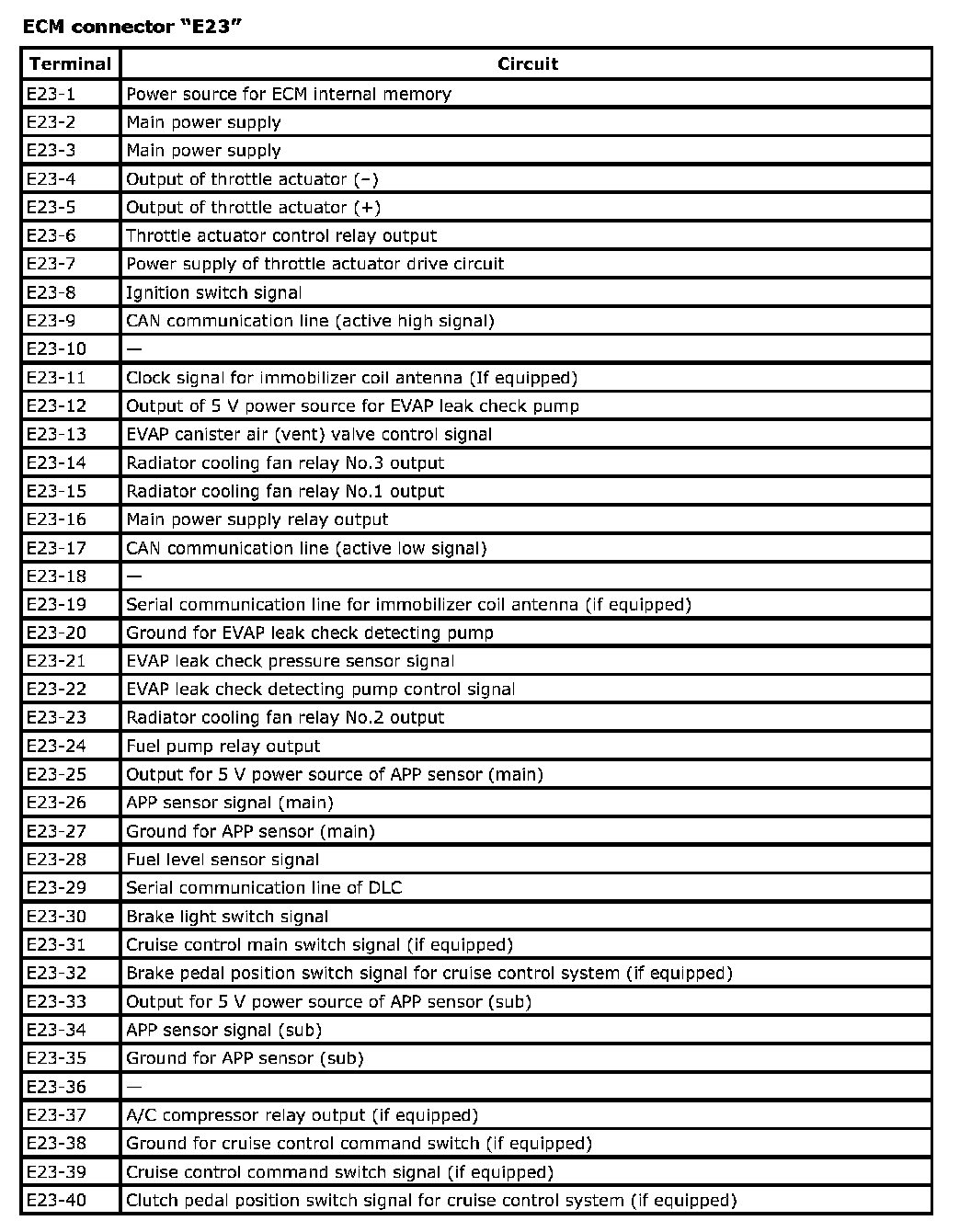

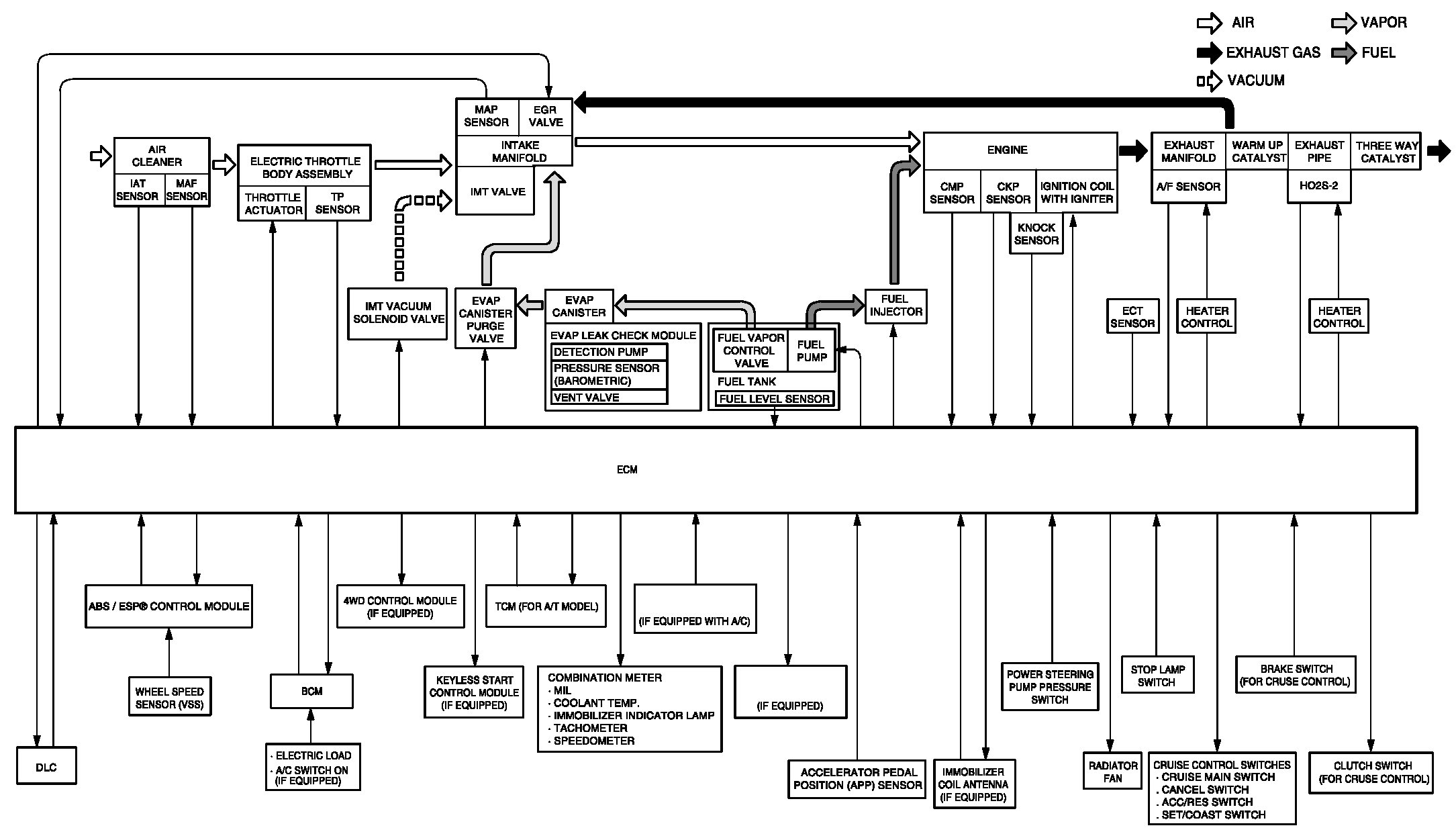

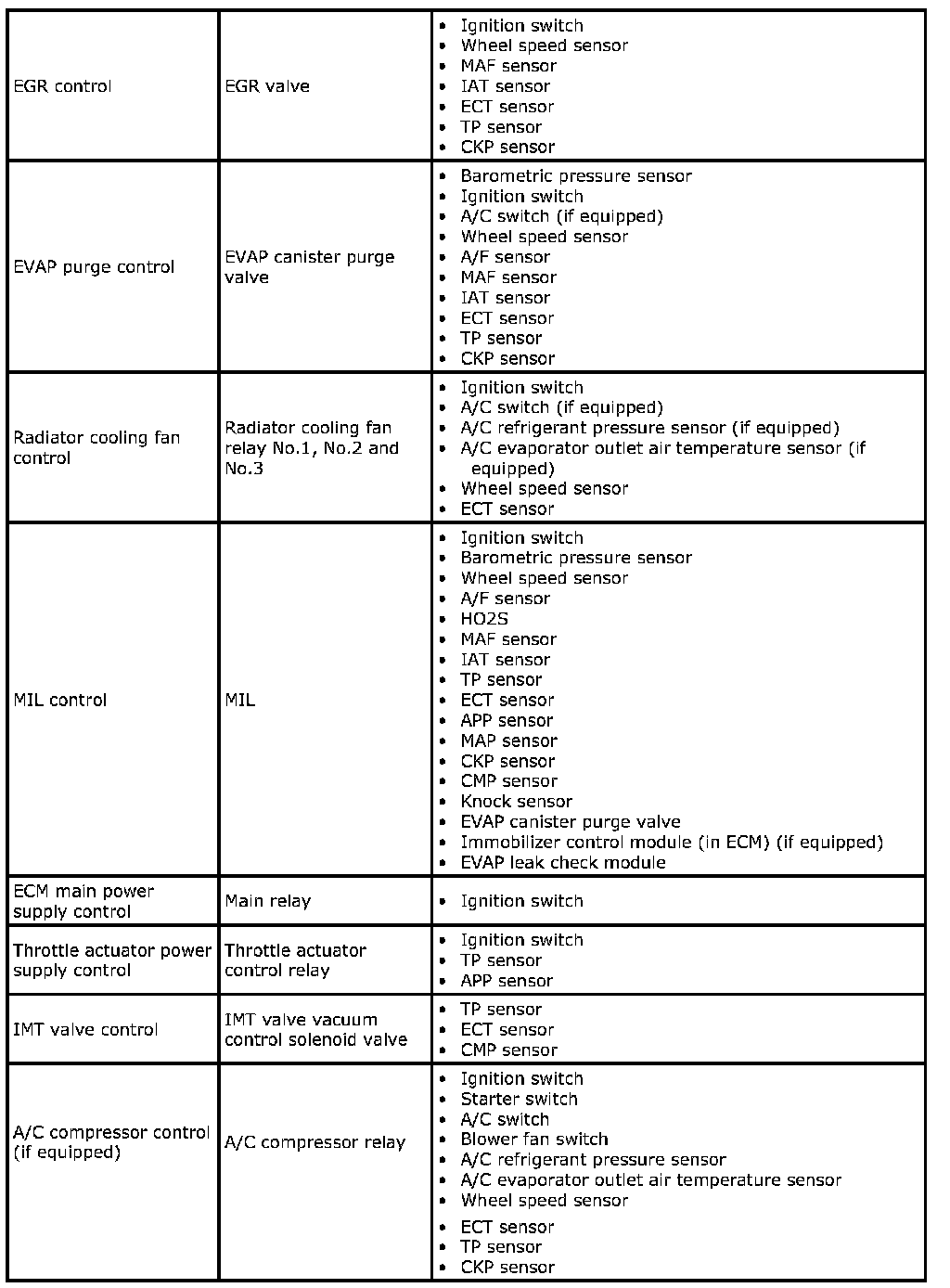

The electronic control system consists of various sensors which detect the state of engine and driving conditions, ECM which controls various devices according to the signals from the sensors and various controlled devices. Functionally, it is divided into the following sub systems:
- Fuel injection control system
- Heated oxygen sensor heater control system
- Idle air control system
- Fuel pump control system
- Evaporative emission control system
- Ignition control system
- EGR system
- MT valve control system
- Electric throttle body control system
- Radiator cooling fan control system
- A/F sensor heater control system
- A/C control system
- Immobilizer control system (if equipped)
- Controller communication system

Especially, ECM (Engine Control Module), BCM (Body electrical Control Module), combination meter, TCM (Transmission Control Module (For A/T model)), ABS / ESP(R) control module (if equipped), steering angle sensor (if equipped), 4WD control module (if equipped) and keyless start control module (if equipped) intercommunicate by means of CAN (Controller Area Network) communication.
