VIN Registration

VIN Registration

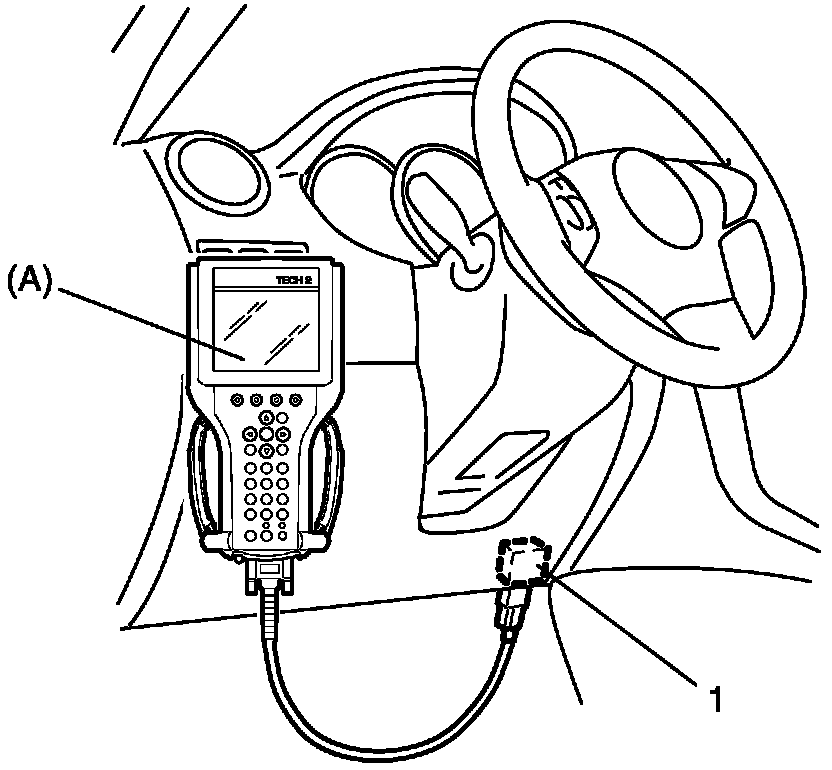

1. Connect SUZUKI scan tool to data link connector (DLC) (1) located on under side of instrument panel at drive's seat side.

Special Tool
(A): SUZUKI scan tool






2. Check the VIN shown on the left side of instrument panel.
3. Turn ignition switch to ON position.
4. Select "VIN registration" command in SELECT MODE menu of SUZUKI scan tool.
5. Register VIN according to the instructions indicated on the SUZUKI scan tool.

NOTE: For further details, refer to the operator's manual for SUZUKI scan tool.

6. Before completed the VIN registration, check that VIN data indicated on the SUZUKI scan tool is correct.
If not, re-register VIN data into ECM correctly.
